HULL AND DECK

• Fresh white gelcoat hull & deck
• Imron® bootline (Carbon is standard)
• Hull constructed w/ a gelcoat outer layer, balsa cored hullsides and bottom, w/ fiberglass skin coat hand-laid using AME® premium vinylester resin. Closed mold technology w/
• AME® premium vinylester resin is used for the remainder of the hull process.
• Deck constructed w/ a gelcoat outer layer, balsa coring, & laminated w/ AME® 1000 resin using closed mold technology
• Tiara custom diamond pattern non-skid deck & cockpit surfaces
• Wood & foam core stringers, encapsulated by hand-laid fiberglass, are integrated to the hull
• Gelcoated bilge
• Bronze seacocks on all underwater thru-hull fittings
• Molded-in hullside engine room ventilation
• Bennett Marine® 24V hydraulic recessed trim tabs
• Three (3) Bomar® cast aluminum & acrylic opening forward deck hatches w/ adjusters & built-in Ocean Air® screens & privacy covers
• Molded-in fiberglass bow pulpit w/ S.S. roller
• One-piece welded 1 1/4" brushed aluminum bow rail w/ pulpit, staff & Tiara burgee
• Flush forward anchor rode locker w/ overboard drain
• Automatic rope/chain anchor windlass system w/ operation from foredeck foot pedal & remote switch at helm. Includes one (1) 10"
• S.S. foredeck cleat, 50' chain rode, 200' rope rode, & Delta® 55 lb. galvanized anchor.
• Painted brow mask
• White rubrail w/ 316L S.S. cap
• Eight (8) 12" S.S. cleats for lines

LOWER COCKPIT

• Starboard entry to salon w/ sliding tinted glass door
• Port mezzanine seat w/ insulated cooler tub under seat
• Engine room access door in mezzanine seat
• Teak-covered cockpit step to mezzanine seat & salon entry door. Insulated cooler tub under companion step, & storage tub under seat step.
• Ladder or stairway to flybridge -- see options
• Molded-in steps to deck walkways, port & starboard, w/ safety handrails above
• Fiberglass covering boards w/ upholstered coaming bolsters
• Four (4) Lee® rod holders in covering boards, two port & two starboard
• Two (2) corner cast S.S. hawse pipes
• Two (2) 6" S.S. cockpit fender cleats
• Cockpit LED courtesy lighting with remote control
• 120V GFI outlet, port
• Cockpit shower, hot & cold water
• Fresh water washdown outlet w/ S.S. fittings & 25 ft. coiled blue hose
• Raw water washdown outlet w/ S.S. fittings & 25 ft. coiled yellow hose
• Self-draining cockpit w/ scupper drains
• Two (2) insulated flush floor storage boxes, one (1) port and one (1) starboard, w/ split lids & hinges. Large floor box includes drain.
• Aft lazarette hatch
• Aluminum backing plate, 24” x 24”, laminatedin center of cockpit floor (access via lazarette hatch)
• Molded-in, inward opening transom door &gate

FLYBRIDGE

• TV antenna

• Two (2) Release Marine® teak helm chairs w/footrests

• Forward center bench seat w/ storage underneath

• Starboard lounge w/ top-access insulated cooler aft

• Port lounge w/ top-access storage aft

• Clarion® AM/FM/CD stereo w/ four (4) flybridge speakers, two lower cockpit speakers, & remote panel located in lower cockpit. Includes Clarion® iPod®/MP3 interface.

• Weather covers for helm console & helm chairs

INTERIOR

• Mold & mildew resistant vinyl hull and headliner treatment

• Teak interior - NOTE: Variations in Teak wood grain are natural & cannot be controlled in the manufacturing process

• Cable TV/phone outlet

• 120V outlets throughout

• 12V/24V DC lighting

SALON

• Teak hardwood floor
• Starboard lounge/dinette seating w/ storage below. Includes table w/ fixed pedestal.
• Port l-lounge seating with pull-out sleeper
• Manually operated blinds for port, starboard & aft windows
• 40" LCD TV mounted on a hi-lo actuator to conceal the TV when not in use. Includes iPod®/ MP3/game port interface.
• Bose® Lifestyle 18 media/entertainment system w/ integrated DVD/CD player
• Marine Air Systems® 20,000 BTU air conditioner w/ reverse cycle heat (supplies salon & galley)

GALLEY / LOWER SALON HALLWAY

• Teak hardwood flooring in galley & teak steps to hallway; hallway is carpeted.
• Quartz galley countertop and backsplash
• Stainless steel undermount sink w/ hot/cold water faucet
• Three-burner surface mount electric cooktop w/ sea rails
• Forward upper cabinets w/ storage & microwave/convection oven
• Forward lower cabinets w/ storage
• Aft lower cabinets w/ safety handrail & concealed trash can
• Two Sub-Zero® drawer-style refrigerator/freezer units; one unit includes ice maker
• Exhaust fan
• Drawer storage and sub-floor access underneath hallway steps (hinge lift with gas spring)
• Hallway closet with bi-fold door

MASTER STATEROOM

• Carpeted floor
• Full frame door separating master stateroom from hallway
• Private sliding door entry to head
• Manually actuated queen pedestal berth w/deep quilted innerspring mattress, quilt, two (2) pillow shams, & ten (10) throw pillows
• Storage under berth
• Two (2) nightstands w/ storage
• Hanging locker
• Upper hullside storage cabinets, port
• Two (2) reading lights, independently switched
• 19" LCD TV
• 12V DVD player
• Clarion® AM/FM/CD stereo w/ two (2) Polk Audio® in-ceiling speakers, iPod®/MP3 interface
• Marine Air Systems® 12,000 BTU air conditioning w/ reverse cycle heat (supplies master stateroom & master head)

MASTER HEAD

• Tile flooring
• Full fiberglass head w/ shower sump pump & tempered glass window/door
• Corian® countertop w/ porcelain sink
• Mirrored vanity w/ storage above sink
• VacuFlush® toilet
• Exhaust fan
• Air conditioner discharge

FORWARD GUEST STATEROOM

• Carpeted floor
• Full frame door w/ entry from hallway
• Two (2) bunks, single upper/double lower, w/ innerspring mattresses, quilts, & two (2) pillow shams
• Storage under lower berth
• Night stand integrated into cedar-backed hanging locker
• Three (3) reading lights, independently switched

GUEST HEAD

• Tile flooring
• Full frame door w/ entry from forward guest stateroom and hallway
• Full fiberglass head w/ shower sump pump & tempered glass shower door/window
• Corian® countertop w/ porcelain sink
• Mirrored vanity w/ storage above sink
• Lower vanity storage
• VacuFlush® toilet
• Exhaust fan
• Air conditioner discharge

SIDE GUEST STATEROOM

• Carpeted floor
• Full frame sliding entry door from hallway
• Two (2) bunks, upper and lower, w/ innerspring mattresses, quilts, & two (2) pillow shams
• Cedar-backed hanging locker
• Two (2) reading lights, independently switched
• Marine Air Systems® 14,000 BTU air conditioning w/ reverse cycle heat (supplies side guest stateroom, forward guest stateroom & guest head)

INSTRUMENTATION, EQUIPMENT AND SAFETY

• Tiara custom 12V/24V and 120V/240V electrical system. Master AC consolidated w/ salon monitoring panel with main DC panel in engine room
• One (1) 240V 50A 65' shore power cord w/Glendinning® cord recoiler
• Cable TV and phone inlets/outlets w/ 65' dockside power cord
• TV and AM/FM radio antennas installed in the flybridge
• Onan® 13.5kw MDKBN generator w/ sound shield and ultra-quiet muffler (Onan® 11.0kw MDKBN for 220v)
• Battery charger (1), 80 amp
• 12V/24V two bank battery system w/ batteries & battery switches (four (4) engine batteries & eight (8) house batteries)
• Battery parallel system w/ battery equalizer for12V battery bank
• Reverse polarity indicator
• Electrical bonding system - hardware bonded to main DC return
• Zincs - trim tabs, transom & shafts
• Bronze axe head rudders & high-rake, high performance struts
• Aquamet® 22 Hi-Strength S.S. prop shafts
• Water cooled shaft logs w/ PSS® dripless shaft
• Two (2) propellers
• Sea Star® full power steering w/ 15" aluminum steering wheel
• Electronic engine controls w/ engine synchronizer and push-start ignition
• Helm instrument panel w/ MPD® electronic display. Separate fuel gauges and rudder position indicator.
• Beede® indicator LED's for aft bilge pump, mid bilge pump, forward bilge pump, & generator
• Ritchie® SuperSport SS-2000 compass
• High output alternators, 140 amps
• Clean & quiet engine room; includes fiberglass bulkhead covers/centerline floor/chine floor, sound tiles, insulation, vibration isolation, & fuel/water/air separators
• Six (6) 24V engine room lights
• Two (2) Racor® fuel filters/raw water intake strainers
• Plate mounted, thru-bolted engine system
• Five-port oil changing system for main engines, transmissions, & generator
• ProMariner® ProSafe FS galvanic isolator
• One (1) Delta T® 9" bilge blower fan
• Three (3) automatic/manual bilge pumps w/ monitors at helm & high-water alarm (2000 GPH each): One (1) forward, one (1) mid, & one (1) aft
• Two (2) composite fuel tanks, 500 gallons each, w/ electric gauges & fuel shut-off valve on top of tank
• Dockside water inlet
• One= (1) fresh water tank, 150 gallons
• Fresh water pressure system w/ Headhunter Excalibur® variable speed pump, 10 GPM
• One (1) holding tank, 70 gallons, w/ vent filter
• Fresh water tank/holding tank monitor
• One (1) water heater w/ exchanger, 20 gallons
• Kahlenberg® chrome dual trumpet air horn
• FE-241 agent automatic/manual fire extinguisher system in engine room
• Five (5) handheld fire extinguishers
• Carbon monoxide detectors
• Smoke detectors
• Eight (8) 5/8" x 50' black dock lines
• Eight (8) Tiara life vests (domestic boats only)
• USCG safety & medical kit
• USCG/international LED navigation lighting (anchor light shipped loose for dealer installation)
• NMMA certified using ABYC standards
• International certification options available

MECHANICAL

• Glendinning® side mount engine controls on flybridge console
• Reverse osmosis water maker, 19 GPH
• Auxiliary gauge panel, engine room
• Bilge crash pumps
• Bow thruster, 24V
• Macerator for waste system
• Fresh water washdown, flybridge
• Anchor locker washdown with S.S. fittings

HULL, DECK & COCKPIT

• Underwater Lights (2), Xenon 12V/50W
• Cockpit mezzanine seat
• Teak package, helm
• Hardtop, Tournament Style
• FISHING FEATURES
• Macerator
• Rupp outriggers – bridge mount

ELECTRONICS

• Full State of the Art Raymarine package

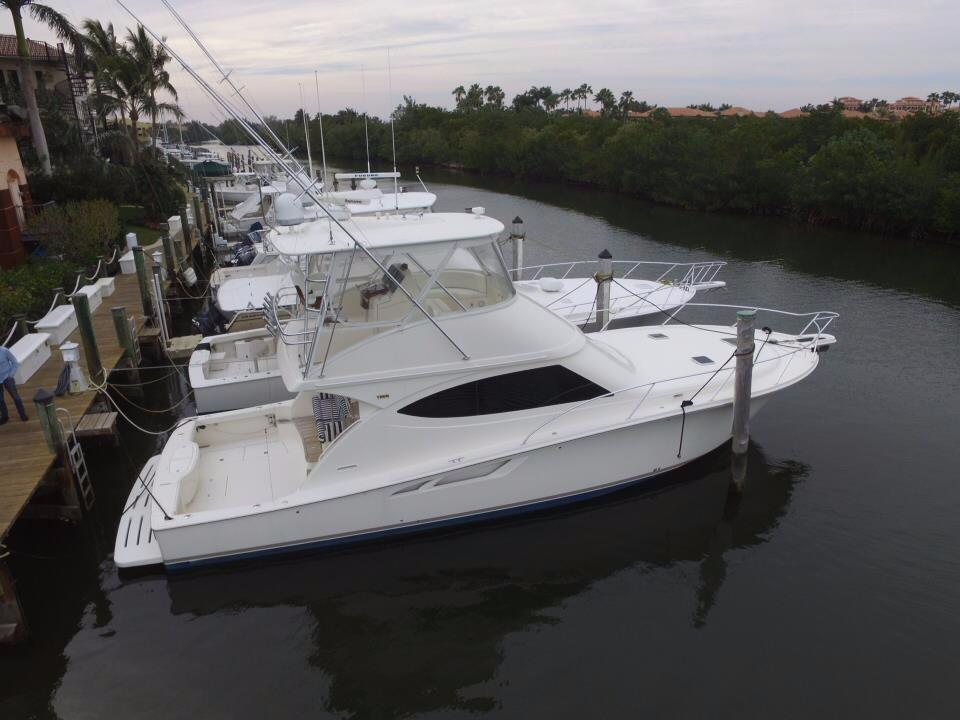

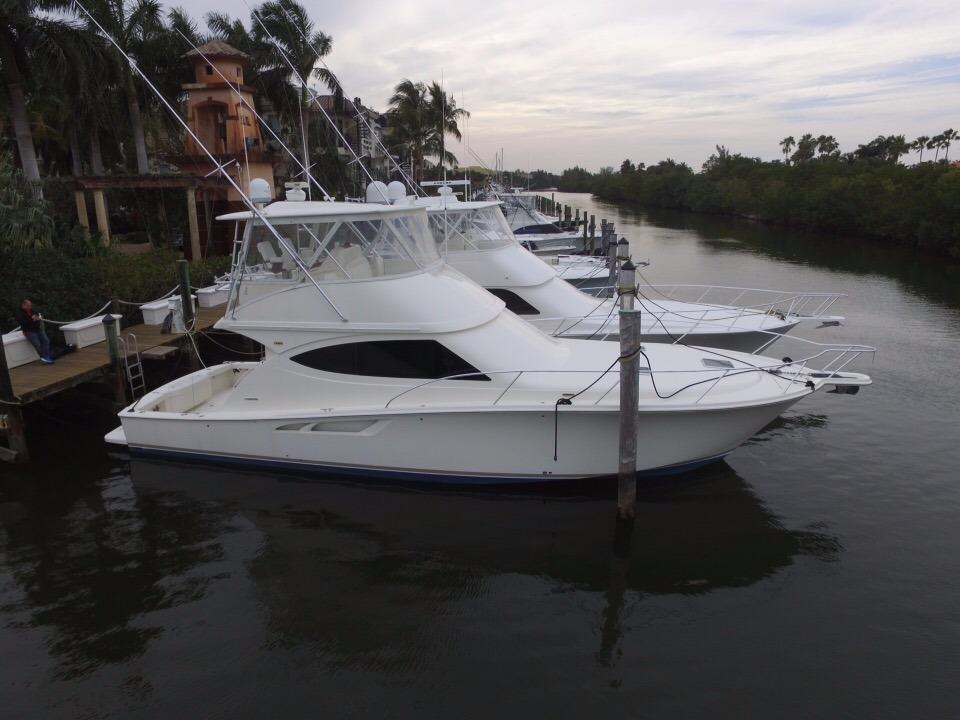

The 4800 is fishing-capable and cruiser-viable from its proud bow and sheerline to its roomy and well-equipped cockpit. The wide-open design of the cockpit features aft-facing mezzanine seating that's a luxury on a boat this size. Tiara engineering makes the 4800 Convertible a seaworthy, dry and stealthy-quiet ride to wherever the fish are. Tiara craftsmanship is beautifully evident in the impeccable glasswork, as well as the joinery and surfaces throughout the interior. If you're looking for a serious sportfishing yacht, take a serious look at the Tiara 4800 Convertible.
