Aroway LR approval, white gelcoat

All fiberglass throughout the boat laid up by hand

Semi-displacement hull bottom with keel

Stitched multi-axial reinforced single skin hull bottom

Reichhold Hydrex vinyl ester resin for hull skin-coats

Foam sandwich vacuum bagged construction for hull above waterline topsides and deck

ATC Corecell PVC foam sandwich construction in vacuum bagged construction

Transverse and longitudinal stringers glassed in the hull bottom

The hull and deck are bolted and laminated with fiberglass

International epoxy osmosis protect primer

International bottom paint anti-fouling

All exterior doors to be weather tight and properly fit with stainless steel lock stops for the open position

All interior doors will have stainless steel lock stops for the open position

Large 16" x 8" rectangular port holes (6)

Twin diesel engines, Caterpillar C12.9, 850 MHP x 2 with Twin ZF 350A ratio 2.636:1 gear with SAE "C" FACE PTO pump adaptors x 2

Northern Lights generator M84K 16KW 120/240/60HZ with new sound shield and exhaust /water separator

Aqualoy or Aquamet shaft #17, 2-1/2"

ABT hydraulic bow and stern thrusters 25hp, 25-6.0 TRAC digital stabilizers

Cruisair, DX remote air conditioning systems with reverse-cycle for heating and cooling, standard capacity total 58,000BTU

TIDES shaft dripless shaft seals

Dripless rudder shaft seals

4 blades Nibral bronze propellers

Electronic Glendinning controls, 3 stations

FRP mufflers for main engines

Par 35400-0010 engine room blower DC 4" discharge (4)

Seaward HF2200 stainless steel water heater with heat exchanger 120VAC (20gal)

AC and DC circuit control breakers

Navigation lights (5)

Kahlenberg model D-2, Fig.212 dual air horn

Life-line GPL-4DL deep cycle battery 210AH.12VDC (6) with FRP battery boxes, 2 for engines start, 4 for ship's service

Life-line GPL-31T deep cycle battery 105AH/12VDC (1) for the generator start and 12VDC service

Rule 2000 GPH automatic bilge pump 24VDC (5) with automatic float switches, indicating lights and alarm system

Bonding system with Professional 22050 zinc anodes on transom

Glendinning Cablemaster CM7 with 60' (50amp/120/240V) cable x sets (2) on the transom, port and starboard

Maxwell VWC 3500C/HYD single vertical windlass and chain pipe series, with chain stopper

Intercom (4)

Interior and exterior stereo wiring with speakers (14)

Color-coded wiring system

On/off switch for engines and generator

Emergency parallel switch between engine battery banks

Wipers (5)

Newmar DC/DC converter 24V/12V 25A

AC fluorescent light in engine room (4)

AC fluorescent lights in lazarette (2)

Engine room light 24VDC (4)

Chart light

Bilge lights

Breakers and separate electrical panel for individual components, i.e. radar, water maker, etc.

Prosine 3KW inverter/chargers with remote panels (2)

Vimar switches

Simrad NSSevo3 9" tridata multifunction display with GPS, sounder and Wi-Fi. Includes world base map

Simrad GS-25, GPS antenna with built in rate compass

Simrad 4G broadband radar with radome

Simrad IS42 multi-purpose digital display sailing instrument and autopilot rudder angle indicator

Simrad AC42 autopilot

Simrad RS12 marine VHF radio with DSC 8' VHF antenna (2)

Racor 75/1000MAX dual fuel filter for engines (2)

Racor 75/500MAX dual fuel filter for generator (1)

Underwater exhaust system with idle bypass mufflers to stern

Power, Hynautic hydraulic steering system

Seawater strainer

Bronze thru-hull fitting

Hot and cold water pressure system Headhunter pump system

Stainless steel 304 water tanks with gauge (2)

Stainless steel shaft "I" strut

Shore water connection on both port and starboard

Bilge water level detectors with high water alarms (3)

Blower for heads (2)

A1. fuel tanks (paint with anti-corrosion coating) (2)

TECMA quiet flush toilets (2)

Fiberglass holding tank 40 US gallons with lever indicator

Pe-A1-Pe pipe for fresh water system

Fireboy MA2-900 auto extinguisher system

PU paint in bilge area

Stainless steel engine beds

Screens for all opening port

Heads to be fresh water flush with "Y" valve for holding tank

Reverso GP-3014-24V oil change pump with manifold

Hart tank monitor system

Sealand holding tank vent filter

Sealand macerator discharge pump

Sealand holding tank monitor

Automatic fire supression system in the engine room

Raw water wash down to be Headhunter 24V pump system

Water maker Sea Revoery SRC AWC900-2

Choose from two upper-deck styles: flybridge or hardtop. Your project manager will work closely with you to deliver a deck design that perfectly complements the way you like to cruise. Listed below are standard features that you can modify..

Fiberglass radar mast with 24VDC lighting

Stainless steel frame hatch, pilothouse to flybridge

Pompanette P-2000 pilot chair (1)

Instrument console with complete instrumentation

Tinted venturi windshield with grab rail

Waterproof speakers (2)

Intercom

"U type bench seat with cushions and FRP table

Non-skid deck surface

Stainless steel steering wheel

120VAC outlet

Courtesy lights

Compass

The aft deck and the pilothouse both offer access to the full-beam boat deck, with spacious flybridge seating for lounging and dining alfresco. Seating adjusts to meet your needs--from increasing storage to adding a fixed barbecue station. You can also create a layout that optimizes space for entertaining when your tender is aboard. Removeable chocks and deck fittings offer even more flexibility.



Boat Deck

Wet bar with sink and faucet

Non-skid deck surface

Fiberglass storage and ready for BBQ on top

Ice maker an refrigerator

Flag pole socket and 5' teak flagstaff

Stainless steel framed hath down to cockpit

Wiring and reinforcement for crane

Reinforcement for cradle of dinghy

Forward Deck

Fiberglass Bow Pulpit with stainless steel anchor roller

Non-skid deck surface

Stainless steel mooring cleat (2)

Stainless steel hawse pipe with roller (2)

Chain locker with fiberglass hath (2)

Stainless steel framed hatch

Fresh and raw water wash down faucet

Flag pole socket and 3' teak flagstaff

Stainless steel stanchion and handrails

Courtesy lights 24VDC (2)

Maxwell VWC 3500 windlass with chain stopper

Self-launching "Bruce" 100 lb anchor and 300' of 3/8" HT chain

Recessed seats with cushion (2)

Portuguese & Side Deck

Portuguese deck with access doors to forward deck

Storage cabinets

Non-skid deck surface

Courtesy lights 24VDC (4)

Stainless steel hawse pipe with cleat (4)

Fiberglass bulwark side doors (2)

Cockpit

Stainless steel hawse pipe with cleat (2)

Fresh water wash down faucet

Raw water wash down faucet

Washdown hose storage locker with hatch cover

Stairs from aft deck to fly bridge with stainless steel hatch

Fiberglass hatches with gas shock (3)

120VAC waterproof GFI duplex outlet

Courtesy lights 24VDC (2)

Teak cockpit decking and teak side decks

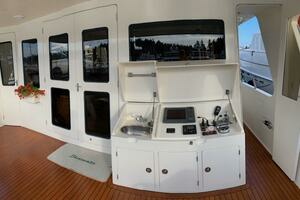

Build-in third station on starboard side with bar sink on port side

Euro Transom / Swim Platform

Aft body swim platform

Stainless steel swim ladder

Transom door

Pop-up cleats on the swim step

2 x U-rails 1-1/2" diameter on back of swim platform 34" tall

Teak decking

The pilothouse features a settee behind the helm, large windows for full visibility, and a suite of navigation electronics at your fingertips. Below-helm cabinets keep binoculars, cruising guides, and other gear easy to reach. Systems and wiring are accessible from behind cabinet doors and the main electrical panel.

The main dashboard has engine instruments, navigation screens for radar, and charts- and systems-status panels. This lets the captain easily track lights, pumps, and generator status, along with any other optional systems like water makers. Additional ship-monitoring systems, remote panels, and camera systems are easy to integrate.

Lower station with complete navigation

Pompanette P-2000 pilot chair (1)

Over head instrument panel

Steering wheel

Exalto 5 windshield wipers with intermittent switch

120VAC or 24VDC lightin

120VAC outlet (2)

Side doors on port and starboard

Chart storage cabinet

"U" type dining seat with storage underneath and table

The salon showcases the volume of the interior. This space is yours- so let us know how you would like the cabinetry laid out in addition to the types of wood ad finishes that suit your taste. Built-in seating or stand alone? Do you have a favorite chair that calls to you in the evening for a good book or movie? Legend Yachts has the ability to take your wish list and fit it into the space while also allowing for service access for required systems. Your input is what makes this boat unique, they are custom fit to each owner.

Stereo cabinet

Electric TV lifter

120VAC or 24VDC lighting

120VAC outlets (3)

Rope light on port and starboard sides of salon

Stainless steel frame salon access sliding glass door

Port side "U" shape sofa with table

Wine cooler on the front starboard cabinet

Armchair (2)

Refrigerator/Freezer

Stainless Steel sink with faucet

Electric cooktop

Microwave

Insinkerator Pross-4 garbage disposal 120V/60HZ

Miele G818SCVI dishwasher, 120VAC

Overhead lockers forward and aft of galley

120VAC or 24VDC lighting

120VAC outlet (2)

Cabinets and drawers for dishes and pantry items

Corian galley counter top

Teak and holly floor

Double opened access doors for stateroom

Walk around double size berth with storage under

Forward hanging locker with panel locker doors

Extended starboard counter with cabinet and wide hanging locker

Drawers and lockers

Opening portlight (2)

Recessed light (10)

Private sliding door to head

AC 120V outlet (3)

Power and antenna wiring for TV with TV decoration frame and lower locker

Night tables

Reading light (2)

Owners Stateroom Head

Medicine cabinet with mirror

Tecma quiet flush heads

Stainless steel opening portlight (1)

24VDC lights (4)

120VAC waterproof GFI duplex outlet (1)

Sink and faucet

Stall shower with seat and glass door

Corian shower seat

Corian counter tops

Fiberglass floor with non-skid shower floor for shower room

Double size berth with storage under

Hanging locker

Vanity with mirror

Stainless steel opening portlight (2)

Recessed lights (6)

120VAC duplex outlets (2)

Hinge bed with gas assist shocks

Recess TV frame

Upper/lower berths

Hanging locker

Stainless steel opening portlight (1)

Recessed lights (4)

120VAC duplex outlets (1)

36" high counter with drawers underneath

Stack washer/dryer Bosch WFL2060 and WTA 3510, 240VAC/60HZ

Cabinet with work counter beside hanging locker

Carpet floor

Night table

Medicine cabinet with mirror

Tecma quiet flush head

Fiberglass floor with non-skid shower floor for shower room

Stall shower room with glass wall over the counter and glass door

Stainless steel opening portlight (1)

Lights (3)

120VAC waterproof GFI duplex outlet (1)

Corian counter top and shower seat top

Faucet and sink

Teak or cherry wood interior wall covering with satin finish

Maple strip cabinsole at salon galley pilothouse, heads and foyer outside of guestroom

Vinyl on ceiling except heads and shower rooms

Teak or cherry wall in heads

FRP wall and ceiling in shower rooms

All stairs to be teak from pilot house to flybridge in salon

Removable vinyl headliners throughout
