Vessel Walkthrough

This Baglietto DOM 133 motor yacht presents a unique opportunity to acquire a nearly new 2024 displacement yacht--without the extended lead time typically associated with a new build.

Designed by Stefano Vafiadis and built at the renowned Baglietto shipyard in La Spezia, she was launched in July 2024 as the fifth hull in the highly successful DOM 133 series. As such, she benefits from the continued refinement and technical evolution of her predecessors.

Stepping aboard, guests are immediately introduced to Baglietto's thoughtful integration of form and function. The aft deck features one of two onboard swimming pools--a defining feature of the yacht's outdoor lifestyle. Designed to seamlessly extend the lounging area, the pool floor can be raised flush with the deck when not in use, creating a versatile space for entertaining, dining, or relaxation.

Wide side decks lead forward, offering direct owner's access to the bow. Here, a generous foredeck lounge is arranged with ample sunbeds, comfortably accommodating all guests in a private and relaxed setting.

Entering the main salon through fully retractable glass doors, the interior reveals a remarkable sense of space--more commonly found on significantly larger yachts. The layout is elegantly arranged with a spacious lounge and formal dining area, subtly divided by a refined central feature that enhances both functionality and visual flow.

The sky lounge, accessible via both the exterior decks and a striking central staircase, serves as one of the yacht's key social hubs. The staircase itself is a design statement, finished in bronze with integrated LED detailing and crowned by a bespoke chandelier by Paolo Castelli. Inside, floor-to-ceiling windows and opening side sliding glass doors create a strong connection to the surrounding seascape. Furnished throughout by Minotti, the lounge is arranged in a sophisticated, theatre-style configuration complemented by a fully equipped backlit Onyx service bar.

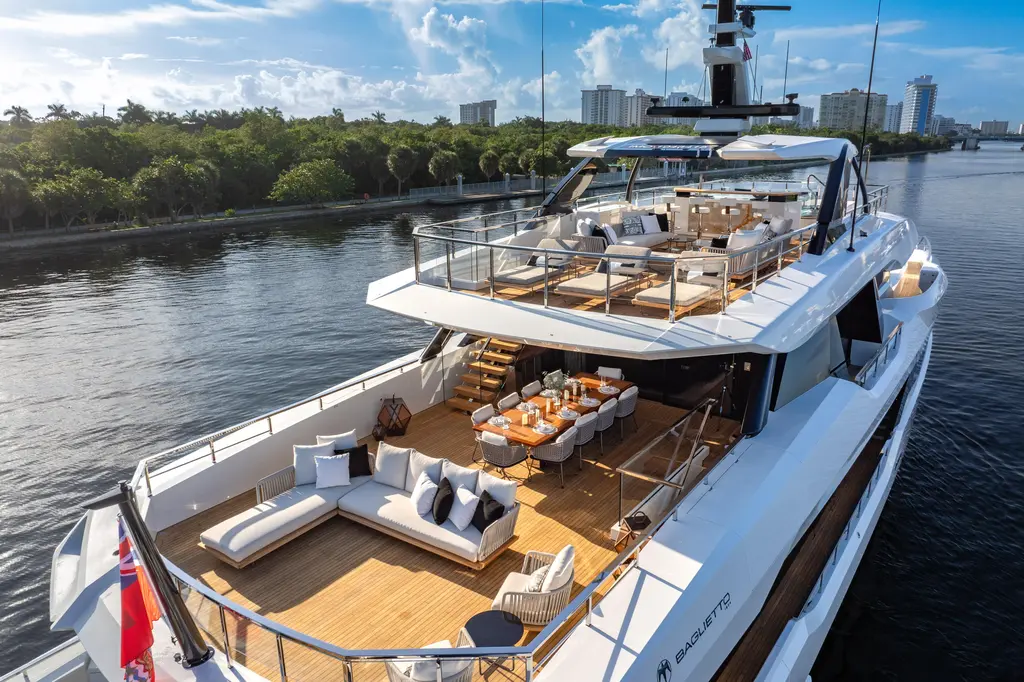

Aft of the sky lounge is the main al fresco dining area, centered around a round table. Flexible Minotti seating and loungers allow for multiple configurations, while three independent full-length sunshades provide adaptable coverage for varying conditions.

Glass-protected stairways lead to the sundeck, where guests will find the second pool, finished in elegant mosaic and designed to accommodate up to 10 guests. A forward aft sunbathing area enhances the usability of the space, creating a balanced environment for both relaxation and entertainment.

Reflecting the yacht's advanced engineering, the forward pool is equipped with a dedicated holding tank and UV filtration system, ensuring it operates independently without impacting the capacity of the yacht's dual 360-liter-per-hour watermakers.

Aft of the pool, a well-appointed service bar separates the space into a casual seating area with bar stools and a relaxed lounge. Both areas benefit from removable sunshades integrated into the fixed roof structure. The sundeck is completed by an additional sun lounging area, with the flexibility to accommodate gym equipment--further enhancing the yacht's versatility and lifestyle appeal.

Overview

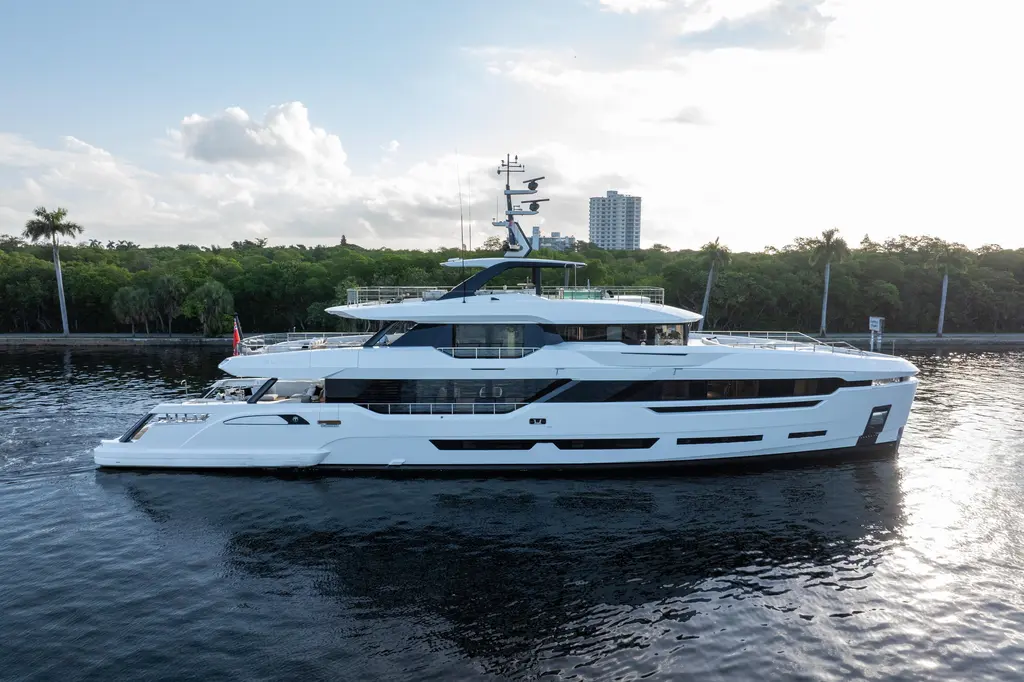

41m (134 ft) tri-deck displacement motor yacht built by Baglietto

All-aluminum hull and superstructure (5083 alloy), fully welded construction

Semi-vertical bow, rounded bottom, flat keel for efficient displacement cruising

Designed for unrestricted worldwide cruising (excluding ice regions)

Exterior design by Studio Vafiadis; interiors by Baglietto Design Team

Beach club aft platform with garage and side-launch door for tender operations

Principal Characteristics

Length Overall: 40.93 m

Beam: 8.70 m

Draft: 2.15 m

Displacement (full load): approx. 300 tons

Gross Tonnage: approx. 410 GT

Guests: 10 | Crew: 9

Classification: ABS Commercial Yachting Service (AMS)

Compliance: MARPOL, COLREG, Red Ensign Group Yacht Code

Capacities

Fuel: approx. 35,000 liters

Fresh Water: approx. 10,000 liters

Grey Water: approx. 3.7 m³

Black Water: approx. 2.5 m³

Bilge: approx. 1.8 m³

Water ballast: approx. 15.5 m³

Highlights

Modern Italian design with high-volume layout

Long-range cruising capability with efficient performance

Dual pool configuration and expansive beach club

Advanced engineering and quiet onboard environment

Fully customizable luxury interior

Ideal platform for private ownership or charter operation

Performance & Range

Twin CAT C32 diesel engines (2 x 1,193 kW / 1,622 HP @ 2300 rpm)

Maximum Speed: 17 knots

Cruising Speed: 15 knots

Range: approx. 3,400 nautical miles at 10 knots

SCR (Selective Catalytic Reduction) system for IMO Tier III compliance

Optimized hull tested via model tank and CFD analysis

Accommodation Layout

Owner's full-beam suite located on main deck

Four double guest cabins on lower deck

Crew accommodations for 9 located forward on lower deck

Dedicated service circulation separating guest and crew areas

Interior design customizable with premium woods, marble, fabrics, and finishes

Luxury bathrooms with marble, Corian, or veneer finishes and glass shower enclosures

Exterior & Deck Features

Full teak decks (12 mm thickness, premium grade planking)

Custom main deck aft pool with heating system

Additional whirlpool/spa on sun deck

Electro-hydraulic retractable gangway with multiple movement axes

Hydraulic swim ladder integrated into aft platform

Bulwarks approx. 1 meter height with stainless steel handrails

Integrated underwater lighting system (approx. 9 LED units)

Tender & Water Toys

Garage accommodates tender up to approx. 5.7 m length

Electro-hydraulic travel lift (SWL approx. 1,600 kg)

Dedicated rescue tender with crane (SWL approx. 500 kg)

Jet ski storage capability (optional configuration)

Side shell door for efficient tender launching and retrieval

Construction & Engineering

Marine-grade aluminum alloy construction (5083 series)

Longitudinal/mixed structural hull design with watertight bulkheads

Enhanced structural reinforcement in engine room and propulsion areas

Advanced vibration and noise insulation using rock wool and damping systems

Hull optimized for minimal distortion and high structural integrity

Propulsion & Maneuvering

Twin shaft propulsion system with 5-blade Nibral propellers

ZF reduction gearboxes (approx. 4:1 ratio)

Bow thruster (65 kW, variable frequency drive)

Electric fin stabilizers (underway and at anchor, approx. 55-75% roll reduction)

Semi-balanced spade rudders with hydraulic steering system

Advanced maneuvering including emergency and wing station controls

Machinery & Technical Systems

Twin diesel generators (~99 ekW each, parallel capable) - 2000 hours (April 2026)

Fresh water maker approx. 8,400 liters/day

Comprehensive fuel system with transfer pumps and purification system

Grey and black water treatment system compliant with MEPC standards

Hydraulic power packs for gangway, cranes, and shell doors

Compressed air system for onboard services

HVAC & Comfort

Centralized chilled water air conditioning system (~360,000 BTU capacity)

Fan coil distribution with treated fresh air units

Designed for 6 air changes per hour and balanced airflow

Interior comfort targets: approx. 20°C and controlled humidity

Acoustic insulation meeting ABS comfort guidelines

Electrical & Technology

400V / 230V AC and 24V DC electrical systems

Main and backup generators with seamless transfer capability

Integrated monitoring system with approx. 400 channels

Navigation suite (Furuno / Team Italia / equivalent)

VSAT satellite internet and communications system

CCTV system with multiple camera coverage

Safety & Compliance

ABS classification with full commercial compliance

SOLAS-compliant life-saving equipment

Fire detection and suppression systems throughout vessel

Gas fire suppression system in engine room

Emergency lighting and alarm systems across all decks
