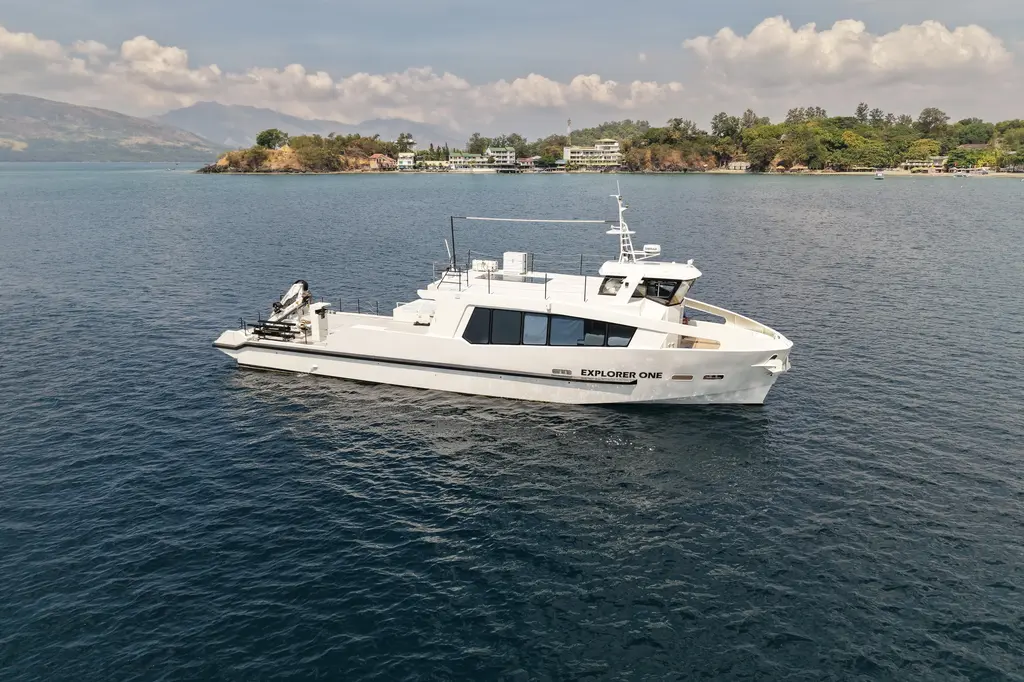

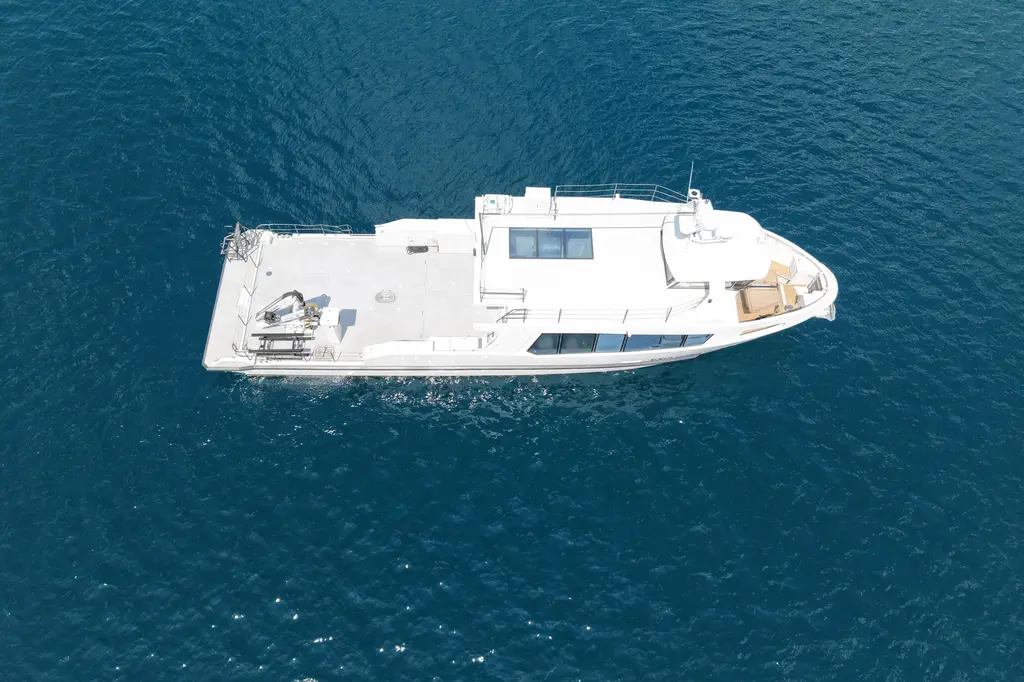

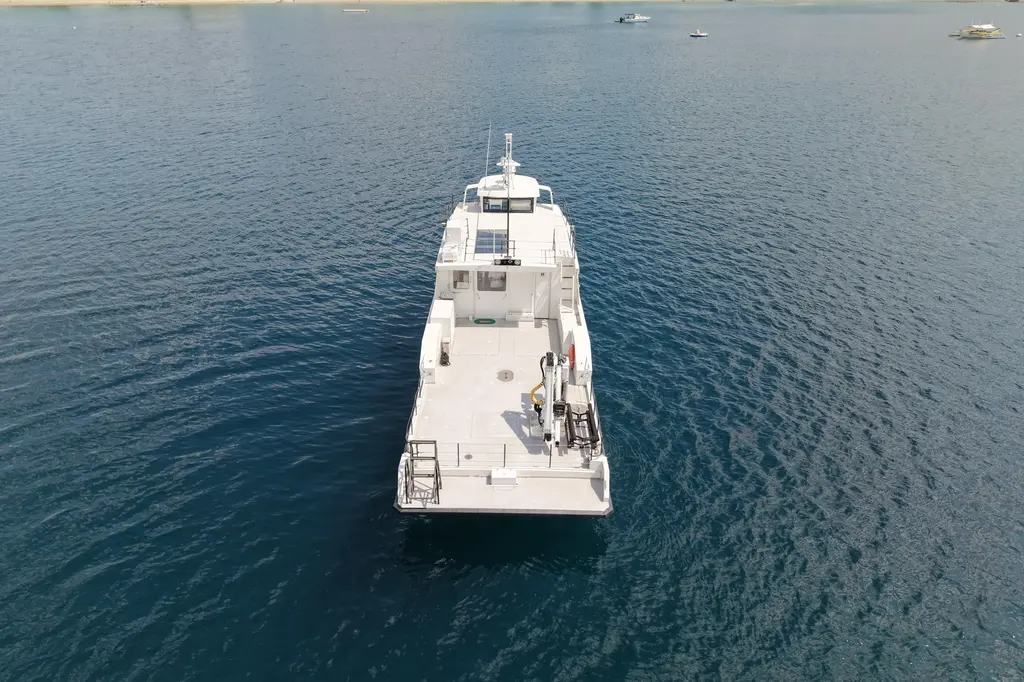

18 METERS YACHT SUPPORT VESSEL FOR SALE IN THE PHILIPPINES

Preliminary General Characteristics

• Rating: 2000 hours per year
• Length Overall: 19.40 m (approx.)
• Hull Length: 18.00 m (approx.)
• Waterline Length: 16.90 m (approx.)
• Beam: 4.70 m (approx.)
• Molded Depth: 1.90 m (approx.)
• Loaded Draft: 1.25 m (approx.)
• Material: Marine Grade Aluminum
• Crew Capacity: 4 persons
• Light Displacement: 22 T (approx.) / Loaded Displacement: 35 T (approx.)
• Propulsion: 2 × 450 Hp Diesel
• Main Fuel Capacity: 2 × 1150 L + Additional 3100 L
• Main Fresh Water: 150 L + Additional 800 L
• Black Water: 150 L
• Toys & Supplies Capacity (incl. extra tanks): 10 T
• Design Working Speed (structural calculation): 18 knots
• Flag: Malaysia / CE Compliance: Yes

2. Design & ConstructionHull Design

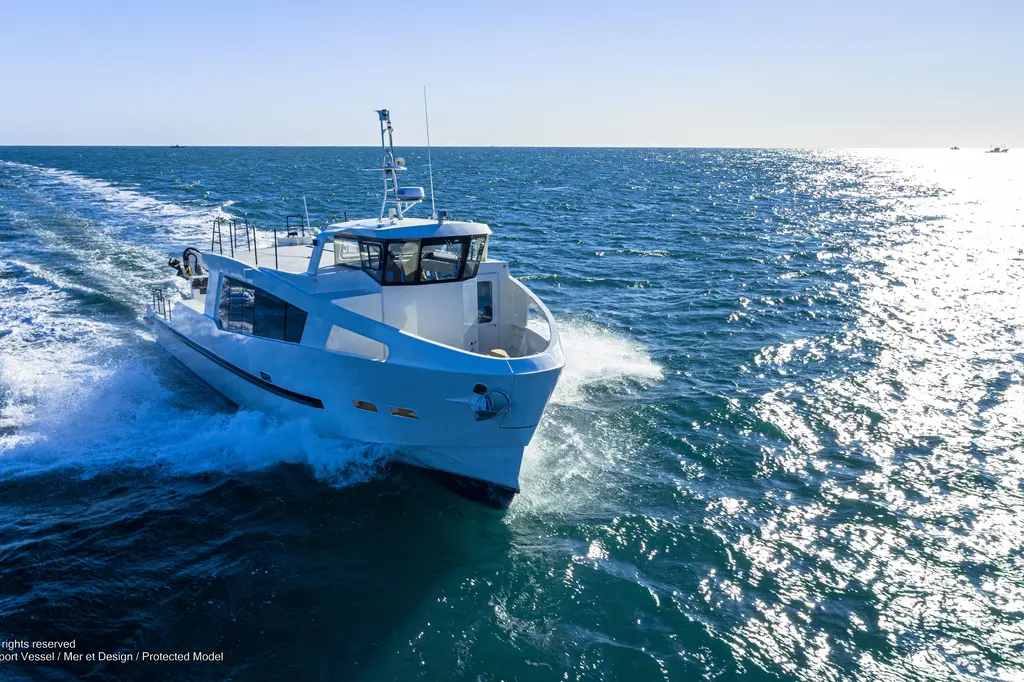

Semi-planing monohull with moderate V-bottom, more pronounced forward. Smooth keel designed for comfortable ride in waves. Speed and trim to be adjusted by the crew according to sea conditions to remain within designed vertical acceleration limits.

All windows in laminated security glass:

• Front cabin: 8 mm
• Side and rear faces: 6 mm



3. Engine & Steering

• 2 × Cummins QSL9 450 Hp @ 2100 RPM
• ZF325-1A gearboxes
• 2 × Stainless steel shafts (ZF) with 2 cutless bearings each and PSS water-injected shaft seals
• 2 × 4-blade S-Class propellers (ZF)
• Seawater cooling via heat exchangers
• Outboard: Mercury 115 EXL with throttle

Steering & Maneuvering

• 2 × 316L Stainless steel rudders
• Hydraulic steering with LS pump and cylinder
• 24V electro-hydraulic pump (16 L/min) for autopilot and joystick control
• 24V Side Power 10 kW bow thruster with joystick control

4. Toys & Supplies

• Crane: Guerra M40.90A1 (3.5 T/m) with 670 kg winch, white RAL 9016 finish
• Gallows: 150 kg capacity for tender/toys transfer
• Additional Tanks: 3100 L fuel + 800 L freshwater with 220V transfer pumps (8 m³/h and 3 m³/h)

5. Electrical Installation

System: 24 VDC

Power Generation:

• 2 × engine alternators
• Onan 17 kW 220V generator
• 2 × 220V/24V 30A battery chargers
• 10 m shore power cable



Batteries:

• 2 × Optima 24V 75 Ah (engines)
• 1 × Service 24V 200 Ah

Lighting: All 24V LED
Sound System: Fusion Apollo Marine with Wi-Fi + 8 waterproof speakers6. Electronics &Navigation Package:

• 2 × Simrad NSS12 evo2 + GPS antenna
• Simrad RS20S VHF + 1 portable GMDSS VHF
• Simrad BR3G Radar
• Airmar SS60 sounder
• Simrad Autopilot
• SART transponder + EPIRB
• Lalizas magnetic compass
• 8 cameras + monitor (engine room & navigation)
• Lowrance ELITE FS7 with sounder

7. Fire Safety

• Engine room insulated with A30 fireproof material
• Fire and smoke detectors
• Fire pump (engine-driven) + 10 m hose
• Backup diesel fire pump
• Novec automatic extinguishing system in engine room
• 2 × 6 kg ABC powder extinguishers + 1 × 5 kg CO2 extinguisher

8. Flooding Safety

• Main bilge pump 15 m³/h (engine-driven) with selector valve for all compartments (except peak)
• Peak compartment with independent manual pump
• Aluminum piping (steel in engine room for fire resistance)

9. Safety Equipment &On Pilot Console:

• Magnetic compass
• Horn
• Electric searchlight with joystick

Safety:

• Lalizas 8-person liferaft
• Anchor: Rocna SHHP 55 kg
• Chain: 10 m × 10 mm + 90 m × 16 mm rope
• 6 mooring cleats
• Electric windlass: Quick 2300 W
