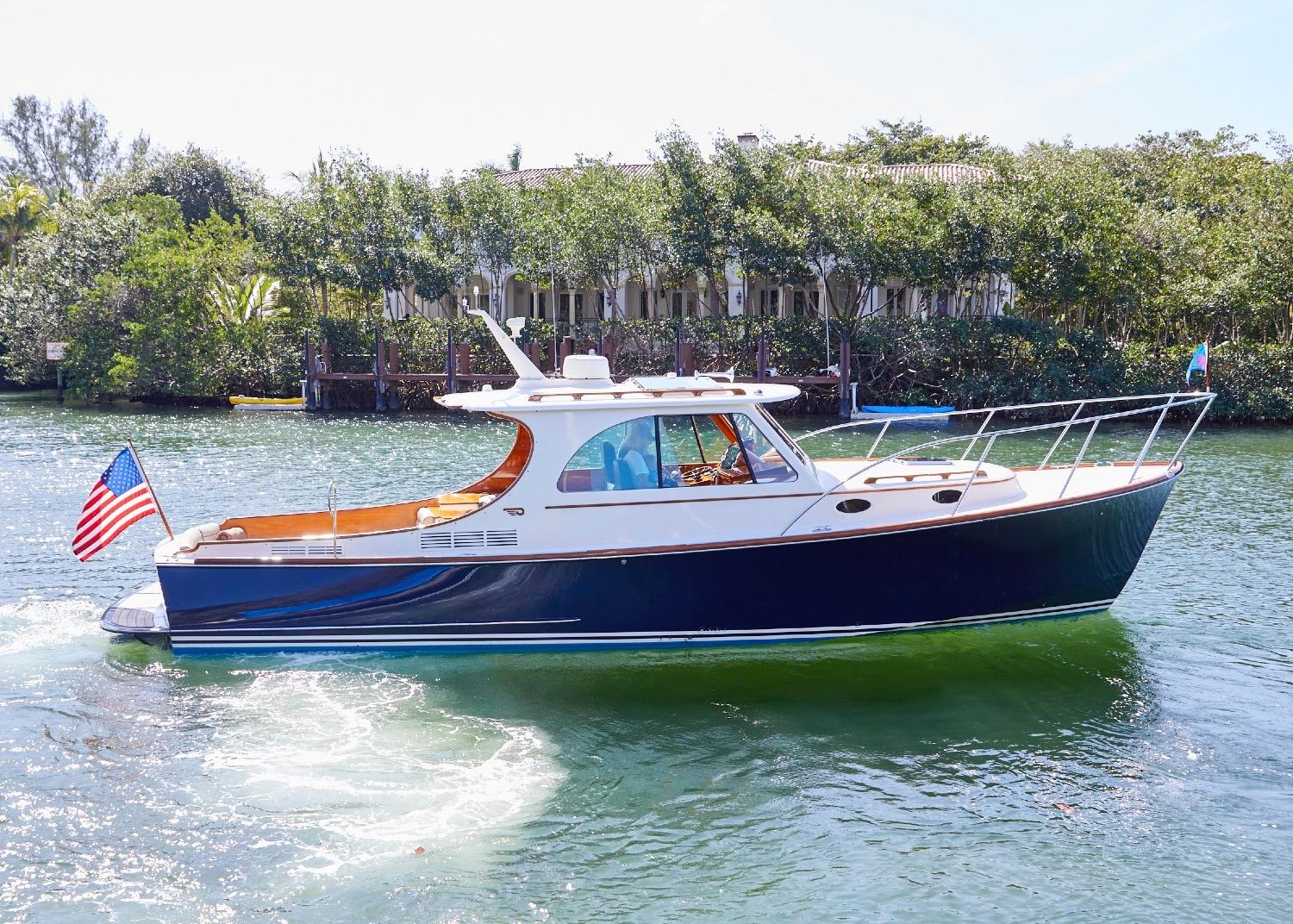

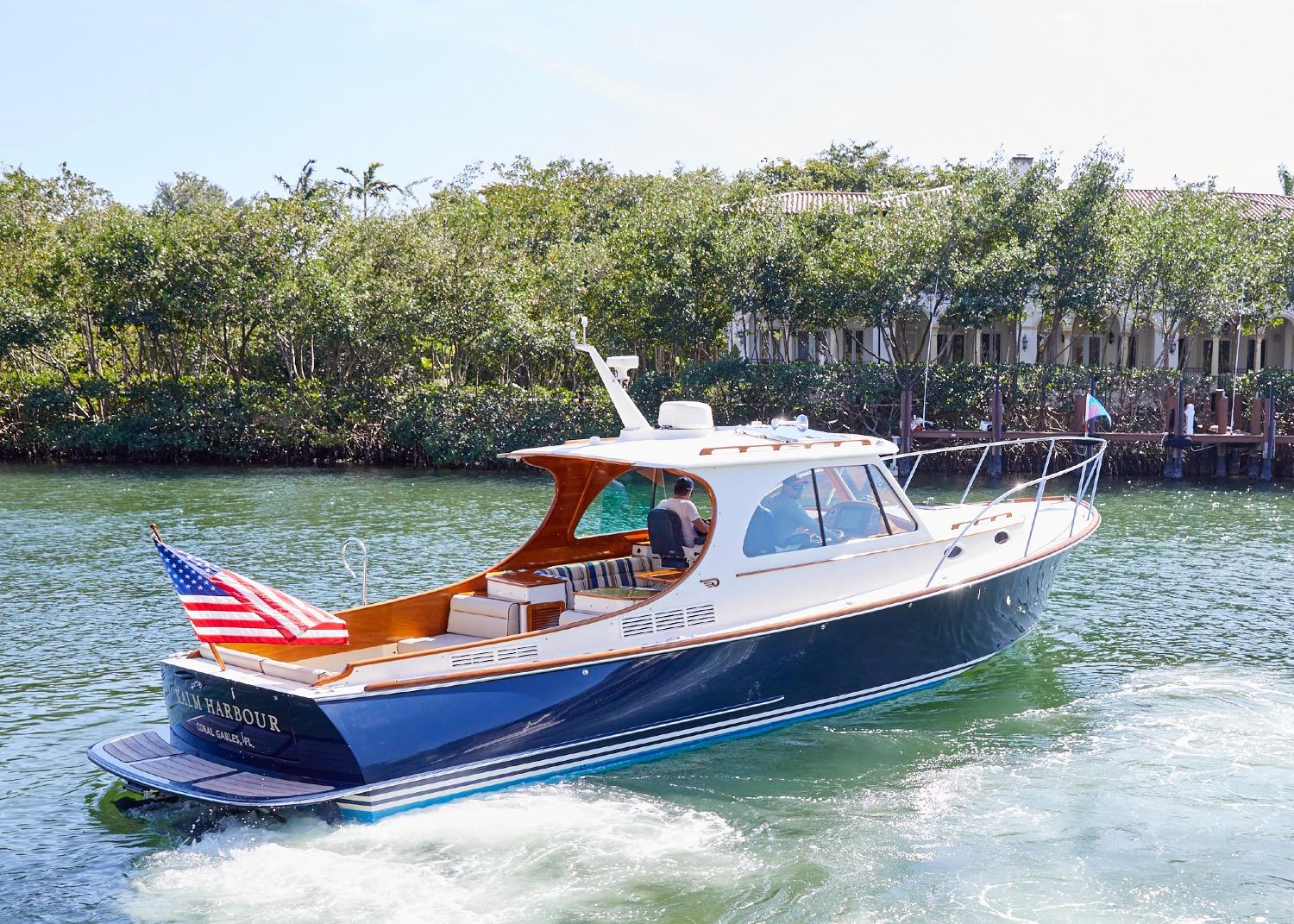

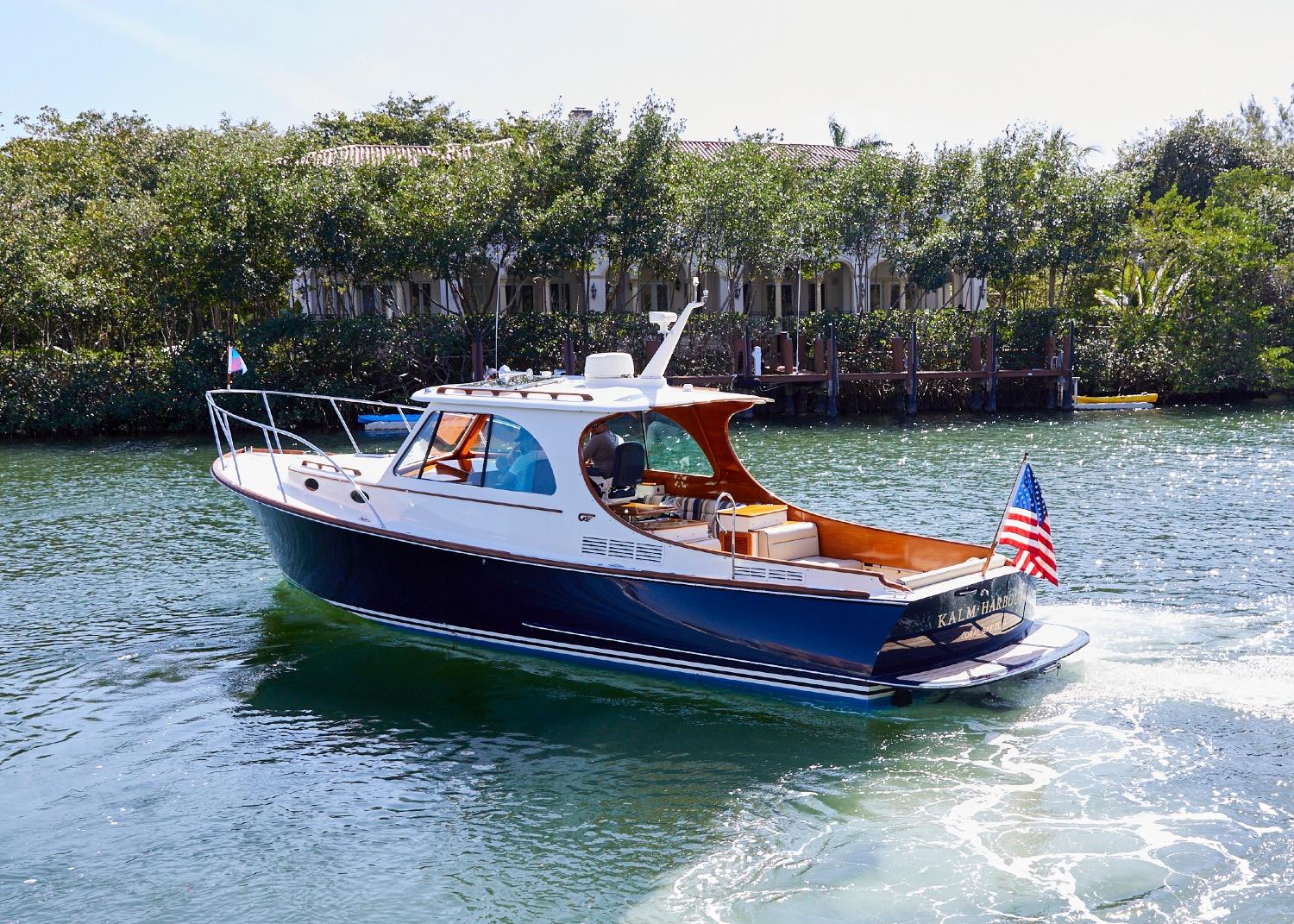

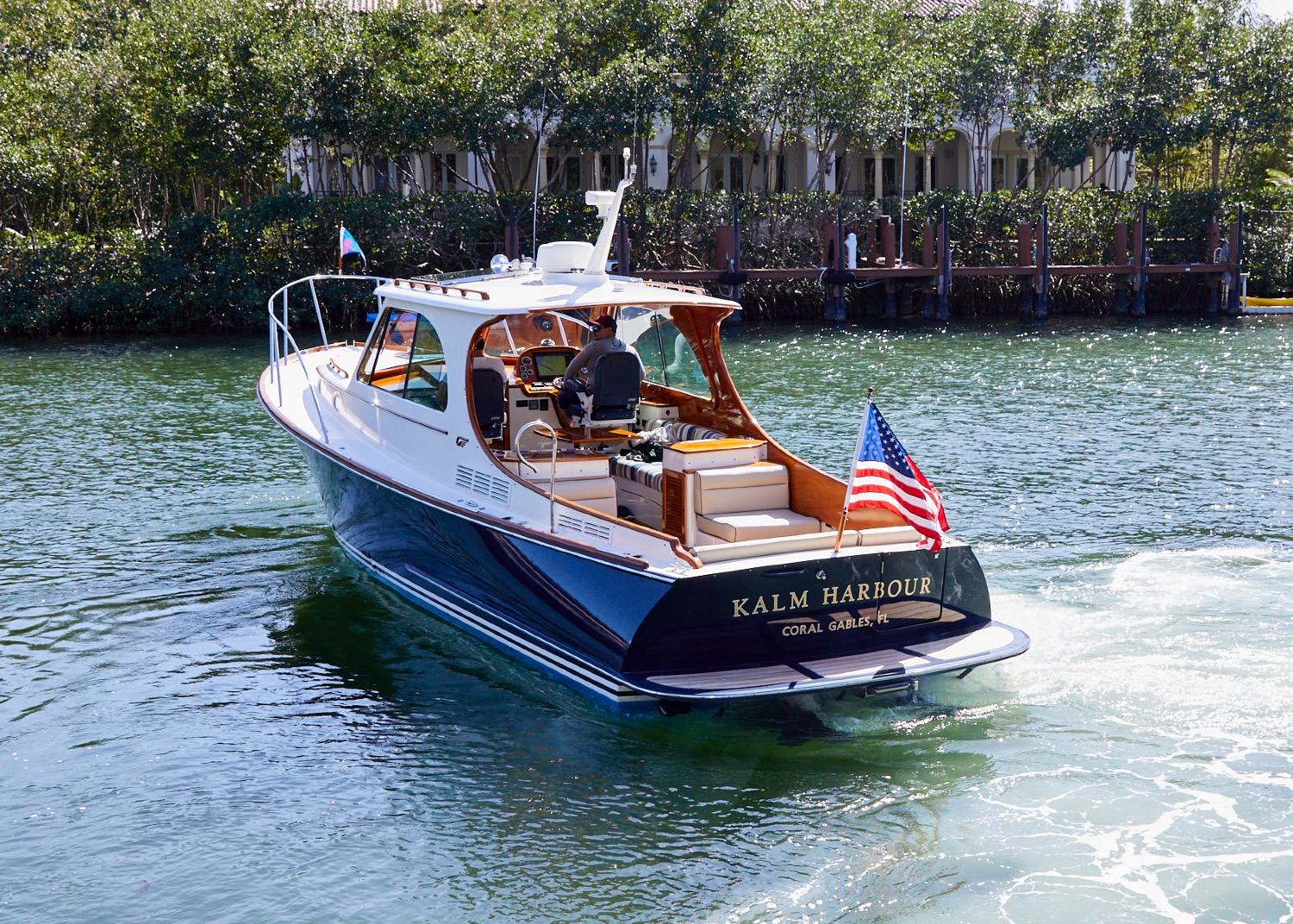

Hinckley Picnic Boat MKIII 2017

Steering System
Joystick Control

Introduction

The Hinckley 37 Picnic Boat MKIII is an updated and redesigned version of the company's iconic 36 Picnic Boat introduced in 1994. The MKIII is wider and longer than her predecessor with twin engines rather than one and a new hull design with increased transom deadrise. The result is a heavier and faster boat with similar lines but without the centerline engine box of the original Picnic Boat. There are two separate seating areas in the MKIII, one with facing settees and drop-leaf table under the hardtop, and the other with fore- and aft-facing seats in the open-air cockpit. The bridge deck, one step up from the cockpit, features a pair of Stidd chairs that swivel to face aft. Below deck, the interior is finished in satin-varnished cherry wood and the cabin sole is varnished teak

Description

HULL and DECK



• Flag Blue Awlgrip hull paint
• Light Cream gelcoat cabin house with painted to match non-skid decks.
• Oyster double bootstripe



The Hull is Hinckley DualGuard® Composite Construction Kevlar E-glass hybrid outer skin and Carbon-fiber inner skin.  SCRIMP® laminated with vinylester resin.  Deck and cockpit are E-glass with closed-cell foam core, SCRIMPED with vinylester resin.



• Marelon ball-valve seacocks with thru-hulls below water line and Marelon thru-hulls above the waterline
• Stainless steel half round on fiberglass molded rub rail
• Upgraded: - (3) Lumitec SeaBlazeX White/Blue LED underwater lights on the transom. Underwater lighting with switch at the helm





Construction / Carpentry:



• Upgraded: - Varnished teak dash forward of port and starboard helm seats and lower helm wheel pod.
• Upgraded: - Varnished teak pilothouse interior side liners.
• Upgraded: - Varnished teak cockpit coamings.
• Upgraded: - Varnished teak exterior handrails in lieu of standard stainless steel handrails.
• Upgraded: - Two sets of rod racks under port cockpit gunnel (includes tubes/holders)
• Upgraded: - Hinckley designed stainless steel 1-1/4" bow rail.
• Upgraded: - Removable filler in front of transom door with upholstered cushions.
• Upgraded: - 18" Deep insulated and drained cooler in port amenity between cockpit and pilothouse.

• Upgraded: - Powered adjustment for Stidd Helm Seat only (fore/aft, up/down)
• Upgraded: - Stainless steel power hatches in the pilothouse. Manual SS hatch on cabintop. Ocean Air Sky screens in lieu of standard Bomar screens.
• Upgraded: - Padeyes moved to Port and Stbd for fenders
• Upgraded: - Companionway lid hold-up arm.
• Upgraded: - Teak inserts on swim platform in lieu of standard Awlgrip non- skid.
• Upgraded: - Four Mate Series Combination cup holder/fishing rod holders: Two on aft side decks & Two on aft deck with drains. Rod holders are Mate Series model #C-2030-D in polished 316L SS with Oval Top 30o Rod Angle and 1/4" Drains. Include Stainless steel post for holding up shore cord.
• Upgraded: - Pilothouse table with removable stainless steel pedestal with canvas cover and storage bag.
• Teak pilothouse and cockpit sole with traditional black seams.
• Upgraded: - Custom Teak Flag Staff (varnished) with US Flag with stainless steel socket on transom
• Upgraded: - Custom Teak Flag Staff (varnished) with integrated socket into bow rail



Anchor locker:



• Flush foredeck anchor locker with hinged hatch and fold-out anchor roller.  Hinckley designed polished SS folding anchor roller with 12-volt windlass.  Windlass controls at helm and handheld wireless remote.  Polished SS Delta anchor with 25' SS chain and 150' rode.
• 1200W Maxwell Windlass RC series
• Upgraded: - Fresh Water wash down in anchor well



COCKPIT and PILOTHOUSE



The Pilothouse is fully air conditioned and features upgraded Ralph Lauren Dune Point Stripe Horizon cushioned seating.



• Upgraded: -  2 X 12000 BTU air conditioning units for the pilothouse
• Upgraded: - Optional teak soles decks throughout
• (4) Pilothouse windows with Green Tint include:  (2) Electric Sliding side windows and (2) Fixed, forward with heavy duty, self-parking, intermittent windshield wipers and fresh water washers
• Upgraded: - Insulated white overhead has two optional (2) Electric opening oversized hatches with Ocean Air Sky screens/shades instead of Bomar
• Upgraded: - Stidd seats with Luxor Leather Soft Touch in Vellum for helmsman and navigator seats with integral folding foot rests
• Storage lockers under pilothouse settees
• (10) Cup holders, three at each settee and two at each helm location
• Glove box/storage at port and starboard helm shelves
• Varnished teak locking companionway door
• Varnished teak handrail on centerline
• Upgraded: - Optional 110V AC waterproof outlet in pilothouse
• Upgraded: - Optional USB charging jacks in lieu of standard cigarette style 12V jacks in side shelf locations.
• Teak Pilothouse and cockpit sole
• Upgraded: - Pilothouse table with removable stainless steel pedestal. Canvas cover and storage bag included
• Upgraded: - 18" Deep Cooler, insulated, in port and starboard amenity between the cockpit and pilothouse
• Upgraded: - Cockpit and Pilothouse deck sockets , flush into the teak sole
• Chart fiddle located across port dash
• Fiddles located wither side of helm pod
• Upgraded: - Stainless steel power hatches in the pilothouse
• Windows covers (Port, Stbd and front)
• Cockpit Mooring cover (White Sunbrella)



Helm Station (Starboard)



• Varnished teak dash located forward to port and starboard helm seats as well as lower helm wheel pod
• Upgraded: - STIDD Helm seat includes power for aft up, up/down
• Varnished teak instrument pod
• Stainless steel 14" steering wheel with varnished wood rim
• Hinckley "JetStick II®" with H-Lock and Heading hold features
• Engine gauges, tachometer with hour meter, oil pressure, water temp., nozzle indicator, Fuel level
• Glove box/storage with lid at aft end of starboard shelf and USB jacks
• (2) Cup holders



ELECTRONICS and NAVIGATION EQUIPMENT



Helm Electronics and Navigation Equipment:



• Upgraded: - 1 x Garmin GPSMAP 8617 17-inch Multi-touch Widescreen Chartplotter/Sonar Combo navigation display.
• Upgraded: - 1 x Garmin GPS 19x NMEA 2000 position receiver/antenna
• Upgraded: - 1 x Airmar DT800 depth/temp 235 kHz smart sensor.
• Upgraded: - 1 x Garmin GMR 18 xHD 4kw high-definition 18" dome radar.
• Upgraded: - 1 x Garmin Grid control
• Upgraded: - 1 x Garmin GMI20 Multifunction Display
• Upgraded: - 1 x Garmin VHF 300 Communication System
• Upgraded: - 1 x Garmin GHP Reactor Autopilot System with GHC20 Control Head and Shadow Drive.
• Upgraded: - 1 x BlueChart g2 Vision chart chip.
• Upgraded: - All antennas painted in Awlgrip to match the deck color.
• Compass: Ritchie, mounted at helm dash
• Upgraded: - Remote controlled spotlight on mast, painted to match deck (ACR)
• Racor fuel filter/water audible alarm with indicators for generator main engines
• High water bilge alarm with indicators for each bilge zone (3)
• Upgraded: - Optional Hinckley OnWatch vessel monitoring system



Entertainment Electronics



• Upgraded: - Fusion FM/CD/Satellite receiver ready Stereo Independent volume controls for pilothouse and cockpit at helm
• All speakers for system are Fusion
• (2) Pair of speakers - (1) pair in pilothouse forward and (1) pair in cockpit.  All speakers have remote volume control
• Upgraded: - Two added speakers in the cockpit (6 on board) with amplifier



ACCOMMODATIONS BELOW



The Queen Island Berth interior is finished in satin-varnished cherry with custom shear lockers located to port and starboard. The cabin sole is gloss varnished teak and tulipwood.  This spacious cabin with 6'2" standing headroom is fully climate controlled with 10,000 BTU reverse-cycle air conditioning unit with outlets in the main cabin and the head.  Entry is from the pilothouse companionway to the Galley to port, private Head to starboard and the Island berth accommodations forward.



GALLEY (Port)



• Corian countertop
• Stainless steel sink with Grohe fixtures, spray nozzle and hot and cold pressure water.
• Sea Frost refrigeration - 12-volt cold plate refrigerator in a self-draining insulated box
• 110-volt outlet
• Built-in bin for Glass  stowage
• (3) Cherry pullout drawers
• Red step-light in galley
• Under counter pull-out garbage receptacle
• Additional storage is provided outboard and under the galley sink.
• A "pantry" locker with louvered door and several shelves separates the galley from the forward V-berth area and houses the stereo system.
• Gloss varnished cherry countertops in the galley



HEAD (Next aft starboard)



• Solid cherry door panel door
• Custom satin varnished cherry countertop and under-mounted porcelain sink.
• Grohe faucet/hand held shower provides hot & cold pressure water - bracket for shower bulkhead mounted
• Sealand Vacu-Flush electric marine head is plumbed to a 27-gallon holding tank and overboard discharge
• Mirror on the forward bulkhead with cherry frame.
• Storage is provided by cherry faced lockers above and outboard the vanity, a drawer with a cherry face beside the marine head, and a locker under the vanity.
• 110-volt outlet
• Air conditioning/heat outlet in head
• Opening port with screen, as well as forced ventilation.
• Stainless steel towel bar



ISLAND QUEEN BERTH  (Forward)



• Island Queen berth with settee to port for easy access to the bunk.
• Storage lockers under Island Queen berth have easy-access cherry front drawers
• Cedar-lined hanging locker is just aft of the berths to starboard.
• Custom shear lockers located to port and starboard for additional storage
• Overhead Stainless Steel opening hatch with Ocean Air Sky screen/shade.
• Air conditioning/heat outlet in cabin with zone control located at galley aft face
• Mattress cover upholstered in upgraded Ralph Lauren
• Cabin seat upholstered in upgraded Ralph Lauren
• Queen sheer lockers located both port and starboard.
• custom fitted bed sheets



ELECTRICAL



• Low resistance, copper wire and sacrificial zinc anode bonding system.



12-volt system:



• (2) 12-volt house batteries for a total of 420-amps.
• Start - Two 12-volt AGM Group 31 batteries with 950 CCA capability.
• House - Two 12-volt AGM Group 4D batteries - 210-amps each.
• Heavy-duty battery parallel switch allows emergency starting.
• (2) Two 185 amp 12 Volt D.C. alternators, one for house batteries and one for each starting battery
• 12-volt distribution panel includes thermo-magnetic breakers, volt and amp meter.



110-volt AC electrical system



• 110-volt shore power inlet and relay.
• (2) 30 amp shore power cord.  (1) dedicated to house and charging loads and (1) dedicated to climate control systems
• Upgraded: - 9KW Onan Diesel Generator (250 Hrs as of 02/22)
• Victron Multiplus inverter/charger with 100-amp 12-volt multi-stage battery charging capability.
• 3000 watt pure sign wave inverter with control mounted in cabin
• 110VAC waterproof outlet in bridgedeck - located in starboard side coaming
• Upgraded: - 3 (three) Lumitec SeaBlazeX White/Blue LED underwater lights on the transom with lighting switch in the helm
• 1 (one) Outdoor USB power jack
• Pro Tournament 360 Elite Series 2 Bank engine batteries charger



ENGINE/MECHANICAL



• Upgraded: - Volvo D6 435hp engines

• Hamilton 274 Jet Drives
• Twin ZF 220 transmissions
• Hydraulic variable side power 185T bow thruster
• Hinckley custom "JetStick II®" control system integrated with the bow thruster
• Dual cylinder trim tabs with indicator controls at helm
• Fuel filter/water separator with audible alarm panel at helm
• Fuel, oil pressure, and water temperature gauges.
• Alarms for high-low oil pressure, and high engine water temperature and hydraulic pressure
• Manual hydraulic steering pump.
• (3) Electric 1500-GPH 12-volt bilge pumps with float switches and high water alarm
• Whale emergency bilge pump - mounted in cockpit locker.
• In-line 12-volt automatic shower sump pump.
• 27-gallon holding tank with overboard discharge.
• 6-gallon stainless steel hot water heater - shore power and engine heated.
• 40-gallon polyethelelene water tank.
• (2) 110-gallon polyethelene fuel tanks - total 220-gallons.
• Mylar-faced acoustical foam-lined engine box insulation.
• Engine box cover with double gaskets and an electric riser.
• Engine box forced-air exhaust fan.
• Baffled and insulated air intake
• Automatic engine compartment fire suppression system, with automatic engine shut-down
• Accu-heat heaters including outlets in the pilothouse, head, galley/cabin
• Upgraded: - 10,000 BTU reverse-cycle air conditioning unit with outlets in main cabin and head
• Overboard waste discharge.



ADDITIONAL EQUIPMENT:



• USCG Flare Kit
• Life Jackets
• Dock Lines
• 3 X Fenders
• Boat Hook
• 3 X Extinguishers
