Overview
Brand New Hatteras 70MY under construction with an estimated delivery time of June - July, 2016.

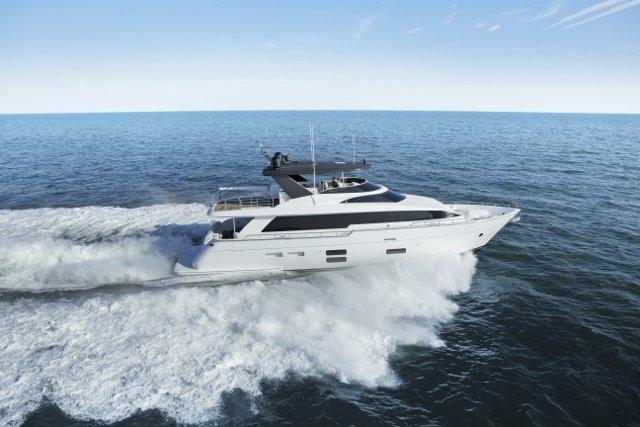

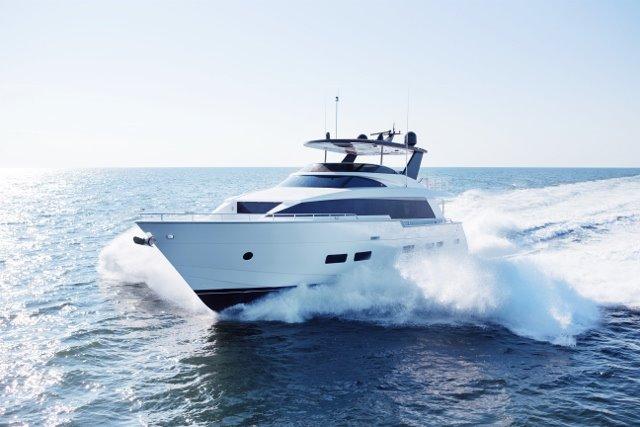

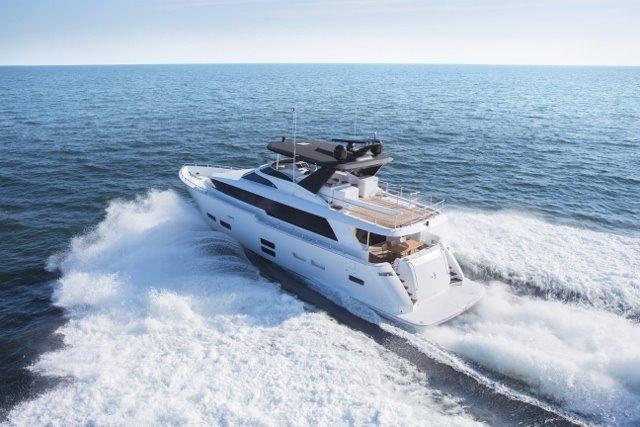

Pictures shown are sister ship and/or renderings.
Highlights
-
ManufacturerHatteras
-
Model70 Motor Yacht
-
Year2017
-
Beam20 ft 2 in - 6.15 meter
-
Engine BrandCaterpillar
Basic Information
-
CategoryPower
-
ConditionNew
-
LocationUnknown, US
-
Boat TypeMotor Yacht
-
Hull MaterialFiberglass
-
Flag of RegistryUS
-
Available for sale in U.S. watersYes
Dimensions & Weight
-
Length70 ft - 21.34 meter
-
Beam:20 ft 2 in - 6.15 meter
-
Bridge Clearance:20 ft 4 in - 6.2 meter
-
Dry Weight:145000 lbs
Engine
-
Make:Caterpillar
-
Model:C32A
-
Engine(s):2
-
Engine Type:Inboard
-
Fuel Type:Diesel
-
Horsepower:1600 (Individual), 3200 (combined)
Tank Capacities
-
Fuel Tank:2000 gallons - 1 tank(s)
-
Fresh Water Tank:300 gallons - 1 tank(s)
-
Holding Tank:250 gallons - 1 tank(s)
Descriptions
Inspired Mediterranean style, legendary Hatteras performance. Hatteras quality and craftsmanship meet sophistication and style for anew standard of elegance. Alfresco entertaining is the order of the day on the expansive flybridge with multiple seating options and sunning spaces. Inside, the Hatteras 70 astounds with an open - concept deckhouse salon and galley arrangement, surrounded by panoramic windows for views spanning 360 degrees.
The 70 features a gorgeous full-beam master suite in addition to a private VIP stateroom and designer - inspired twin staterooms for your guests. Along with a generous array of fine amenities, the 70 also offers the ability to introduce a range of custom details to ensure the yacht bears your personal stamp.
Propulsion
- Twin Caterpillar C-32A 1,800 BHP Diesel Engines
Exterior Finish & Construction
- Isophthalic / NPG gel coat, exterior layer
- Hull and superstructure painted with a premium linear polyester/polyurethane coating for improved cosmetics and increased durability
- Polymer/copper based anti-fouling bottom paint
- Boot stripe, linear polyester/urethane coating
- Decks, non-skid surface, polyurethane paint with polymeric beads
- Resin-infused solid fiberglass hull bottom with premium vinylester resin and blister resistant gel coat below the waterline
- Resin-infused composite hull sides with crosslinked foam core and premium vinylester resin
- Molded fiberglass longitudinal stringers with steel engine beds
- Resin-infused bulkheads and interior decks using crosslinked foam core
Hardware & Miscellaneous
- Interior wood selection Grey Oak, hand-crafted with a satin finish
- Fin stabilizer system
- Welded and polished stainless steel anchor chute and roller
- Anchor locker
- 90 lb. plow anchor with 25' chain and 300' rope
- Windlass; 3500lbs. electric with deck mounted control switches
- Dual prop bow thruster, 32 hp. hydraulic
- Four polished stainless steel spring cleats with chafing strips, through bolted in aluminum backing plates
- Two polished stainless steel bow cleats, through bolted in aluminum backing plates
- Two polished stainless steel stern cleats, through bolted in aluminum backing plates
- Welded and polished stainless steel rails on bow, side decks and flybridge, drilled and tapped aluminum backing plates
- Stainless steel rudders
- Manganese bronze dripless rudder seals
- Zincs on rudders and shafts
- Alloy 22 high-strength propeller shafts tapered with round keys for reduced stress concentrations at propeller and coupling ends
- Nibral high performance propellers
- Dripless shaft seals
- Manganese bronze struts
- Manganese bronze engine couplings
- Trim tabs
- Sea Stair ladder with dedicated storage brackets
- Stainless steel deck plates fuel fill, water fill, and waste pump out
- Fog bell
- Dual air horns
- Life jackets (10)
- Life ring (1)
- Braided nylon dock lines (6)
- Fenders (4)
- Portable "drychem" fire extinguishers in compliance with USCG and ABYC standards
- Portable 13lbs. Halotron - 1 fire extinguisher
- Air conditioning, 90,000 BTU capacity, with reverse-cycle heating
Engine Compartment & Bilge
- Painted polyurethane engine room and bilges
- Freshwater AC back-up pump
- Insulation in engine room ceiling, for noise mitigation in salon
- Water manifold with centralized shut-off valve for sinks and showers
- Individual sea chests for each engine and gensets, high speed sea chest for water makers, air conditioners and raw water pumps
- Discharge sea chest
- Painted pultruded fiberglass rudder shelf bolted to steel plates in stringers
- 1" stainless steel steering tie bar with pivoting self aligning ball joint connection at all cylinder and tie bar connections
- AC Engine room lights
- DC Engine room lights
- DC ventilation blowers
- Twin diesel, freshwater cooled main engines with electrically controlled marine gears, neutral interlocks, exhaust silencers, engine hour meters, alternators, fuel filters and seawater strainers
- Digital monitoring for main engines
- Start/stop switches
- FM200 fire extinguishing system for engine
- Generator exhaust water separator
- Polyethylene water lines
- USCG approved fuel lines
- Electric fuel transfer system with filtration and dry tank protection for pump
- AC compressed air system with air line and regulator
- 24V DC bilge and sump pumps with heavy duty float switches and protective guards
- Bronze/chrome ball valves through bolted in solid fiberglass on all underwater through hull fittings with electrical bonding
- Pressurized AC freshwater pump
- Air Conditioning back up seawater pump
- Electric water heaters
- Fiberglass fuel tanks constructed with fire retardant resin and bronze fittings
- Fiberglass water tanks, constructed with bronze fittings
- Fiberglass holding tanks, constructed with bronze fittings and 24V DC sewage pump, plumbed for dockside pump out, with 3/4 full display and alarm
- Oil changing system for engines, generators and gears
- Fuel filter/water separators for engines & generators
Disclaimer
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
