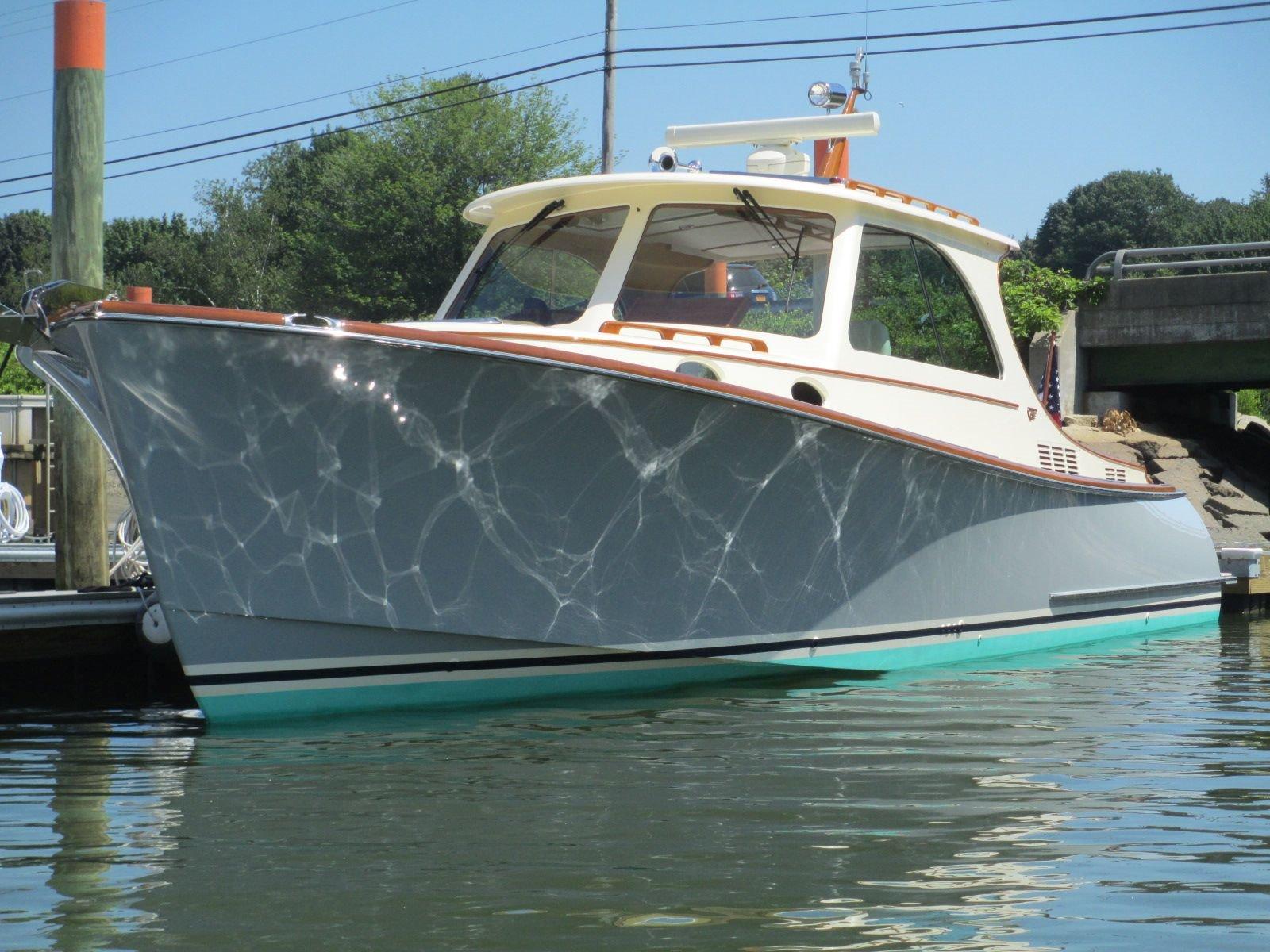

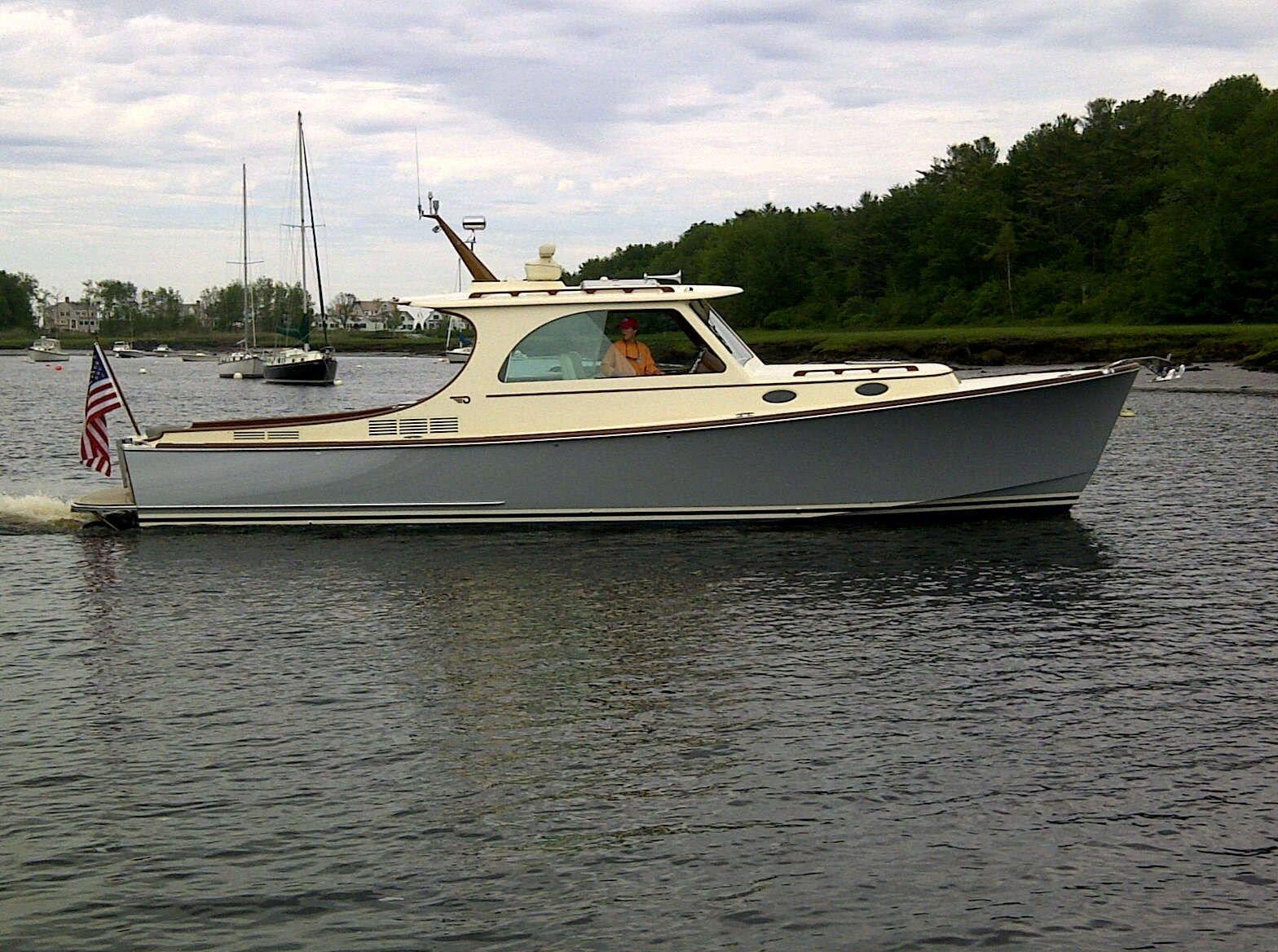

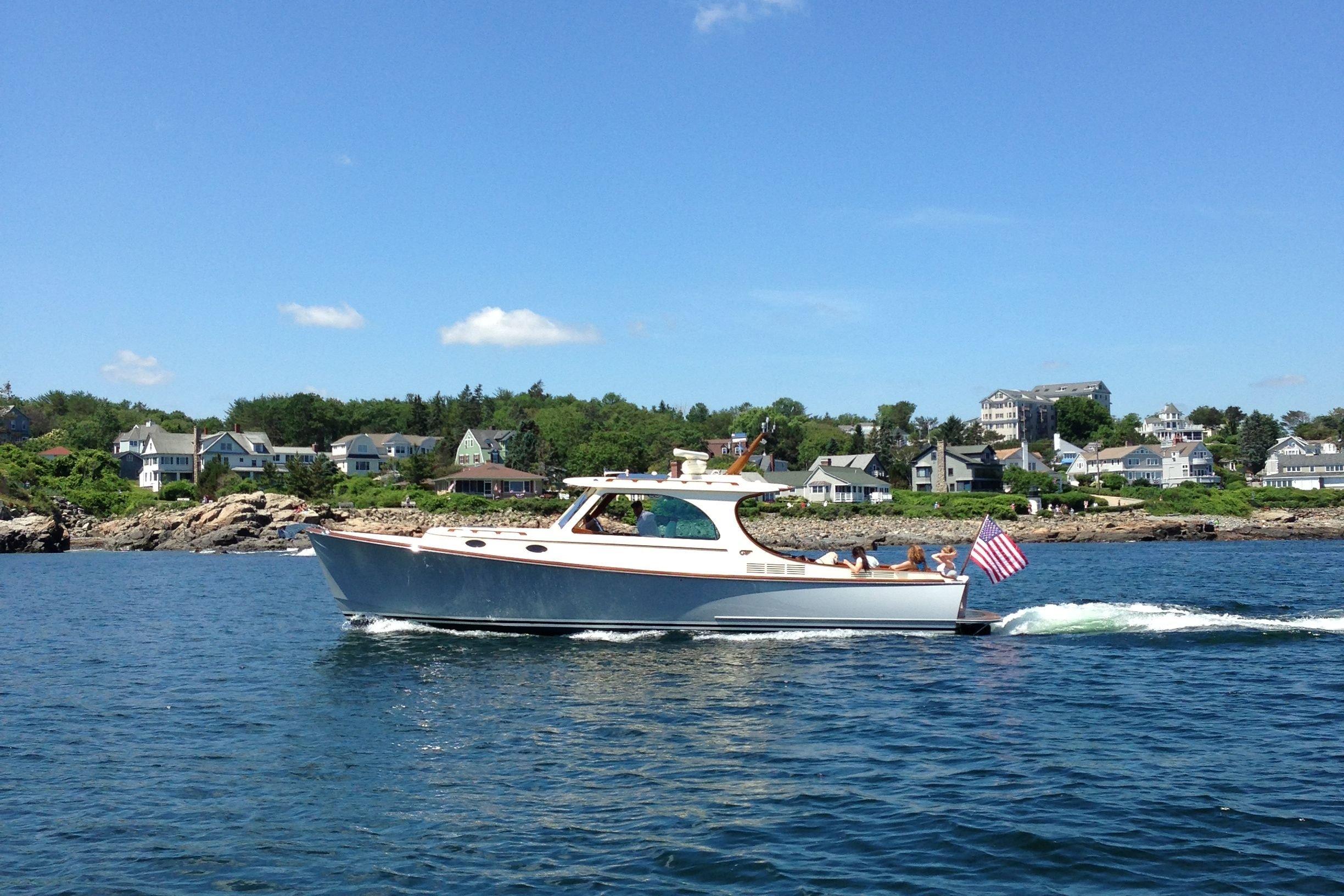

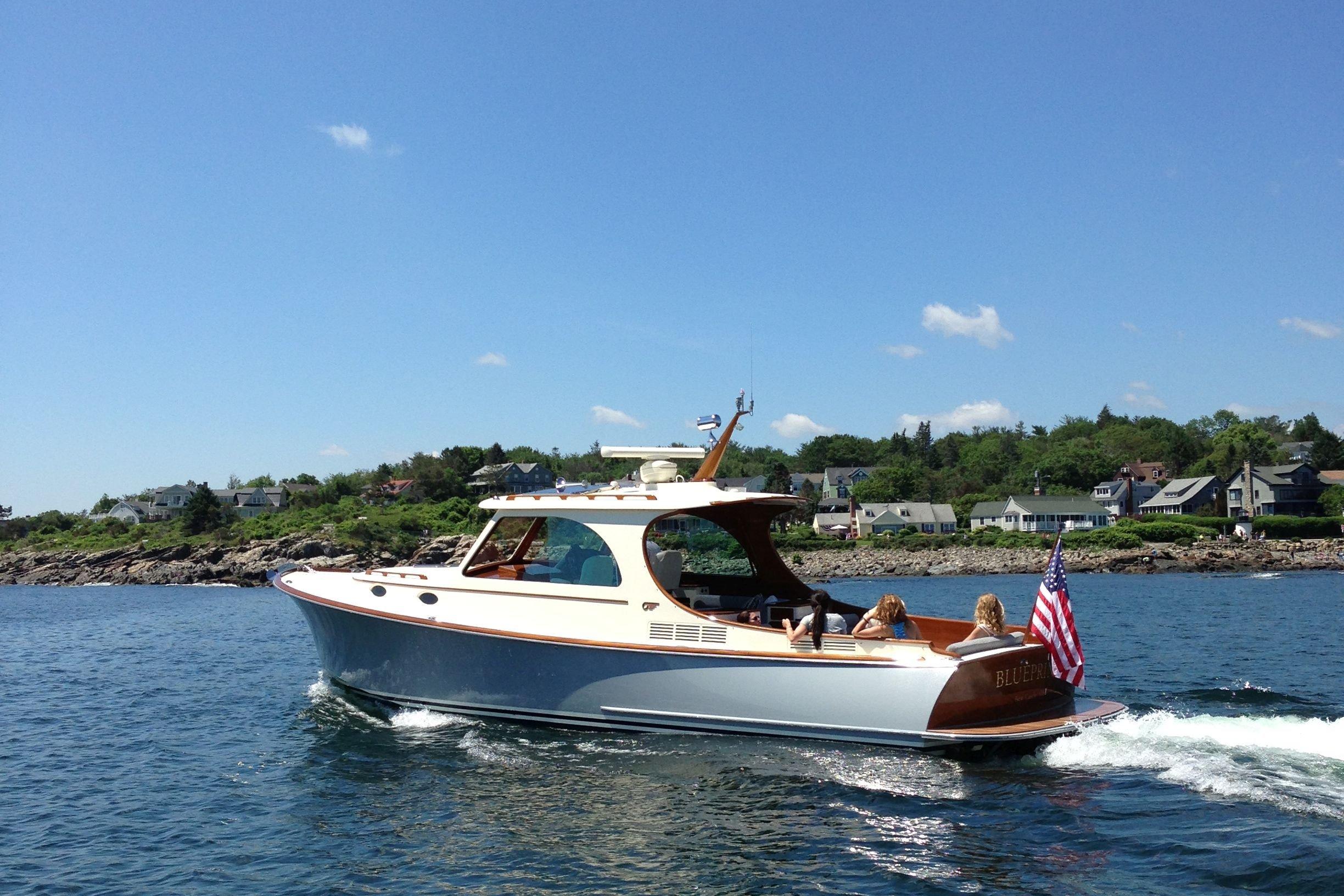

Right from the very first glance, BLUEPRINT’s aesthetics invite you to look closer. Her varnished wood transom and mast give her an old world yacht elegance that belies the most advanced engine, electronics, and systems found throughout. Her living and lounging spaces are eye pleasing and ergonomically correct, with custom chase seating in the cockpit, windows and hatches that open/close at the push of a button, and a helm and instrument panel that is a virtual command center. Many small details like upgraded lighting fixtures, hidden electrical switches/outlets, and select galley and head fixtures indicate a designer’s touch. The result is truly an aquatic piece of art that any couple or family will appreciate and enjoy.

Offered for the first time and ready to continue putting smiles on the faces of owners, guests, and all admirers. BLUEPRINT name reserved.

• Medium Gray Awlgrip topsides
• Light Cream gelcoat cabin house and deck, with matching nonskid pattern.
• Double Cream bootstripes plus Single Carinthia Blue stripe between
• Green bottom
• Gloss varnished teak transom

STRUCTURAL

• Hull: Hinckley DualGuard® Composite Construction-Kevlar®/E-glass outer skin with Aircraft grade end grain balsacore, and a Carbon fiber inner skin. Laminated with Vinylester resin using Seaman Composite Resin Infusion Molding Process (SCRIMP®).
• Deck: E-glass outer and inner skin with aircraft grade end grain balsa and closed cell foam core. Laminated using Seaman Composite Resin Infusion Molding Process (SCRIMP®). of the hull is Hinckley DualGuard® Composite.
• Marelon ball-valve seacocks with thru-hulls below water line and Marelon thru-hulls above the waterline
• Stainless steel half-round on fiberglass molded rub rail and aft hull splash guards
• OPTIONAL full teak covered heavy-duty fiberglass swim platform with stainless steel brackets and half- round.

• Stainless steel telescoping, 3-step folding swim ladder - stores under platform

DECK FEATURES

• Flush foredeck anchor locker with hinged hatch and fold-out anchor roller.
• Rounded, tapered, varnished teak toe rail with Hinckley profile
• Varnished teak eyebrow molding around cabin top
• OPTIONAL varnished teak Hinckley pilothouse mast
• OPTIONAL SS chafe strip across the transom – including transom door.
• Varnished teak handrails on house top, cabin and aft end of pilothouse
• OPTIONAL teak pilothouse and cockpit sole – including swim platform threshold.
• Direct drainage scuppers and stainless steel grates
• OPTIONAL varnished teak drawers in port and starboard bridge deck amenities.
• Four (4) elliptical fixed ports on house sides
• Large side windows in Pilothouse open electrically
• (1) Low-profile opening stainless steel hatch in cabin with Ocean Air Sky screen.
• (2) Electric opening stainless steel hatches in the Pilothouse with powered Ocean Air Sky Screens
• Custom Hinckley 316L stainless steel bow chocks
• OPTIONAL bow and stern 316L stainless steel 10” pop-up mooring cleats - mid-rail easily reached from cockpit
• Fender padeyes with toe rail chafe strips
• Masthead mounted ACR custom chrome spotlight - with helm mounted electric remote control
• Masthead mounted LED pivoting cockpit floodlight, a sensor + GPS & VHF antennas - all painted gray to match hull.

• Stidd helmsman port and starboard seats – with chrome package and finished in Ultrafabric, Promessa #363-5848 with French stitching. Helm seat has powered fore/aft and manual up/down.
• Companion seat is manual fore/aft and up/down.
• Pilothouse seating – Port and starboard cushioned fiberglass settees with storage under.
• Cockpit Seating - Cushioned forward facing seating at the transom with removable cushions at transom door. Aft-facing seats are located at the forward end of the cockpit.

• OPTIONAL cockpit port side full lounge removable filler seat with cushion and teak legs.

• OPTIONAL cockpit stbd fwd seat extender ottoman, removable with cushion and teak legs.

• Louvered locker door access to storage under the settees and bin storage under transom settee.

• Pilothouse & Cockpit cushioned settees port and starboard – Perennials #975-207 “Touchy Feely - Platinum backs and Perennials #980-207 “Very Terry” – Platinum bottoms.

• Teak interior and teak cockpit coaming.
• OPTIONAL full teak sole in cockpit
• Starboard transom door from swim platform
• Courtesy lights under side decks port and starboard

• Hinckley designed flip-down boarding step in coaming port and starboard.
• Teak boarding step for port or starboard side deck

• Cockpit/pilothouse lockers with varnished louvered teak doors
• Cockpit shower with mixing valve at transom door.
• Dockside water connector
• Shore power inlet
• Boat hook mounted to port under optional lounge
• Stamoid mooring cover – with optional port/starboard entry
• Stamoid windshield cover

• Teak finished pilothouse upper sides and dash.
• Teak sole in Pilothouse
• (4) Pilothouse windows include: (2) Electric Sliding side windows and (2) Fixed, forward with heavy duty, self-parking, intermittent windshield wipers and fresh water washers.
• Insulated white overhead has varnished teak battens and (2) Electric opening hatches with custom option powered Ocean Air Sky screens/shades
• Storage – Louvered door locker under port & starboard pilothouse settees and in amenities aft port and starboard that also include optional drawer storage
• Lights - Custom i2 system dimmable lights – 5-profile overhead in polished chrome bezels and 2-red dimmable, one each over helm and companion dash
• 12 volt charger and USB connector at starboard side
• Stainless steel cup holders
• Varnished teak locking companionway door – with removable hatch that stores below.
• (1) Varnished teak handrail overhead on centerline
• Stamoid 3-piece drop curtains with Eisenglass windows

Helm Station (Starboard)

• Varnished teak instrument pod with custom dash layout
• Stainless steel 14” steering wheel with varnished wood rim and custom Talaria hub center
• Hinckley “JetStick®”
• Engine gauges, tachometer with hour meter, oil pressure, water temp., fuel level
• Stainless steel cup holders
• Alpine multi-media stereo system at helm station

Helm Electronics and Navigation Equipment:

• Raymarine E165 multi-function display color Chartplotter/Radar + Bluetooth remote
• Twin Raymarine i70 multi-function display repeater

• Raymarine autopilot interfaced to GPS

• 48” 4kw HD digital open-array radar sensor
• Sirius satellite weather for Raymarine E series
• Yanmar gauges networked to E-series
• ICOM VHF radio

Entertainment Electronics

• Pre-wired for TV
• Alpine IVE-W535HD AV DVD Multi-Media Head – 2 Alpine RF stereo remotes – cabin & cockpit and separate volume control in pilothouse
• Alpine MRX-F30 Amplier
• Audio & video feed to Raymarine E series
• Sirius satellite Radio
• iPod digital connection cable at helm in glove box
• Cockpit speakers
• (3) Pair of speakers – In V-berth forward bulkhead, pilothouse. Forward and pilothouse speakers have remote volume control. Cockpit speakers with dedicated amplifier with fader control.

The interior is finished in satin-varnished cherry. The cabin sole is varnished teak and tulipwood and has a custom cabin sole cover. Louvered cherry locker doors and custom i2 system lighting add to the cabin ambience.

• (9) Bright white profile lights on polished chrome bezels in cabin and head: 7-dimmable plus 2-overhead in head
• Entry is from the pilothouse companionway to the galley to port, private head to starboard and the Island Queen berth accommodations forward.
• Fixed Portlights with painted trim rings

• Air Conditioning (10k BTU) - in interior cabin with custom Hinckley vent grills
• Interior speakers have cherry trim rings and natural cloth

GALLEY (Port)

• Corian Hickory Smoke countertop and sink cover
• Stainless steel sink with folding Scandvik single-lever fixture, hot and cold pressure water.
• SeaFrost refrigeration – 12-volt cold plate refrigerator in a self-draining insulated box
• Wired for electric cook-top
• Custom 120-VOLT Vimar duplex out
• 110-volt outlet
• GFCI outlet and breaker in under sink cabinet
• Dedicated water gauge in galley
• Built-in bin for dish stowage
• (3) Cherry pullout drawers
• Red step-light in galley
• Under counter pull-out garbage receptacle
• Additional storage is provided outboard and under the galley sink.

The stainless steel sink has a removable Corian cover and is set in the countertop that offers ample counter space. The refrigeration is mounted aft and is accessed by a counter lift-up top. Several large sliding louvered door lockers and drawers are over and under the countertop.

A “pantry” locker with louvered door and several shelves and built-in cabin seat separates the galley from the forward V-berth area.

HEAD (Next aft starboard)

• Solid cherry door panel door
• Molded fiberglass sole for easy cleaning.
• Varnished cherry countertop with a polished stainless steel sink.
• Scandvik single-lever fixture faucet/hand held shower provides hot & cold pressure water – bracket for shower bulkhead mounted
• Sealand Vacu-Flush electric marine head is plumbed to a 27-gallon aluminum holding tank and overboard discharge
• Mirror on the forward bulkhead with cherry frame.
• Storage is provided by cherry faced lockers above and outboard the vanity, a drawer with a cherry face beside the marine head, and a locker with shelf under the vanity.
• 110-volt outlet
• Fixed portlight with painted trim ring.
• Forced ventilation.

Island Queen BERTH (Forward)

• A very comfortable queen berth upholstered in Perennials #730-217 Pillow Talk – Gray Matter fabric
• Seat aft and to port of queen berth upholstered in matching fabric and has custom access cover to storage
• Varnished cherry sheer lockers over berth outboard port and starboard

• Storage under queen berth has two large drawers.

• Cedar-lined hanging locker is just aft of the V-berths to starboard.
• (2) Stereo speakers are mounted port and starboard on the forward bulkhead.
• Overhead opening hatch with Ocean Air Sky screen/shade.
• (2) Vimar outlets on either side of queen berth.
• Lighting includes i2 lights over the berth on a 3-way switch

Low resistance, copper wire and sacrificial zinc anode bonding system. Zinc saver.

12-Volt system:

• (3) 12-volt batteries for a total of 540-amps.
• Start – Two 12-volt AGM Group 31 batteries with 950 CCA capability each.
• House – Two 12-volt AGM Group 4D batteries – 210-amps each.
• Heavy-duty battery parallel switch allows emergency starting.
• (3) 115-amp 12-volt alternators – 1-house and 1-starting battery.
• 12-volt distribution panel includes thermo-magnetic breakers, volt and amp meter.

110-Volt 30-Amp AC electrical system:

• 110-volt shore power inlet and relay.
• Glendinning retractable 50-amp-110/220 shore power cord power cord with wireless remote.
• Victron Multiplus 12V/3000/120 pure sine inverter/charger with 100-amp 12-volt multi-stage battery charging capability.

Pre-wired for generator and stove cooktop.

• Optional Twin Yanmar 8LV 370-hp D6 diesel engines
• Hamilton 274 Jet Drives
• Twin ZF 63 transmissions
• 7” hydraulic bow thruster
• OPTIONAL power steering
• 10,000 BTU air conditioning units for cabin
• OPTIONAL Reverso oil change pump for engines/transmissions
• Hinckley custom “Jet Stick” control system is integrated with the bow thruster.
• Dual cylinder stainless steel trim tabs with indicator controls at helm
• Fuel filter/water separator with vacuum gauges and water sensing alarms
• Fuel, oil pressure, and water temperature gauges.
• Alarms for high-low oil pressure, and high engine water temperature and hydraulic pressure.
• Manual hydraulic steering pump.
• (3) Electric 1500-GPH 12-volt bilge pumps with float switches and high water alarm
• Groco bronze raw water strainers
• Whale emergency bilge pump - mounted in cockpit locker.
• In-line 12-volt automatic shower sump pump.
• 28-gallon polyethelelene holding tank with flush mount vent, pump-out deck fitting and overboard discharge.
• 6-gallon stainless steel hot water heater – shore power and engine heated.
• 40-gallon polyethelelene water tank – with vent and remote gauge.
• (2) 110-gallon polyethelene fuel tanks - total 220-gallons – with fuel whistles.
• Mylar-faced acoustical foam-lined engine box insulation.
• Engine box cover has double gaskets and an electric riser.
• Engine box forced-air exhaust fan.
• Baffled and insulated air intake
• Automatic engine compartment fire suppression system, with automatic engine shut-down.

Engine access:

• Electro-Hydraulic lift pilothouse deck provides full engine access.
• Custom engine room grating

Ground Tackle System:

• Muir electric windlass pkg: Flush foredeck anchor locker houses a Muir electric windlass with polished stainless steel Delta 22# anchor + 25’ stainless steel chain & 150’ anchor rode and polished stainless steel folding bow roller. The windlass can be operated from the helm station or a handheld wired remote at anchor locker.

Equipment:

• Bow varnished burgee pennant staff with flush socket.
• Stern mounted 4 ft. varnished teak ensign pole & flush socket.
• Boat hook - mounted under side deck.
• Dock lines
• Fenders with fleece covers
• Deck shower/water outlet with hot & cold mixing valve.
• Life jackets
• Fire extinguishers
• 12-volt trumpet air horn with switch on dash.
• Masthead and running lights
