DIMENSIONS
Length o.a.:    37.3m (122.4ft)
Length w.l..    31.7m
Beam:    7.5m (24.6ft)
Draft:    2.2m (7.2ft)
Displacement    170 tons
Gross tonnage:    245 tons
Net tonnage:    73 tons

CONSTRUCTION
Hull:    Aluminium
Superstructure:    Aluminium
Decks:    Teak
Naval Architect    Heesen Yacht Builders B.V.
External Designer    Heesen Yacht Builders B.V.
Internal Designer    Omega yachts

CLASSIFICATION
Class:    ABS + A1 Yachting Service AMS MCA
MCA:    MCA LY2 short range
Other:    N/A

PERFORMANCE
Maximum speed:    31 knots
Cruising speed:    22 knots
Consumption (approx.):    250 l ph @ 12 knots approx.
Range:    2000 nm @ 12 knots

MACHINERY
Engines:    2 x MTU 16V 4000 M90 (2 x 3626hp)
Engine hours:    June 2015  Port 2594 h  Stbd 2577 h
Generators:    2 X 54 KW Kilopak model CD 4045 T
Generator hours:    June 2015  Port 5204 h  Stbd 5104 h

STEERING & PROPULSION
Steering:    Sperry Marine 2 x 2.2 KW
Propellers:    2 five-blade Nibral propellors
Gearbox:    2 ZF model BW 7550 P

AUXILIARY EQUIPMENT
Bow thruster:    50 KW Hydromar type HBT-GF-CR50
Stern thruster:    51 KW Hydromar type HBT-GF-CR51 retractable
Water maker:    2 HEM 20/400  1500 lpd each
Stabilizers:    Naiad trim tabs
Fuel separator:    Westfalia type OTC-2-02-137  appr.1200 ltr.per hour
Air-conditioning:    2 Marine Air type MCW 120
Waste water treatment:    Hamann
Oily water separator:    N/A
Toilet system:    Vacuum system with jet pump
Boilers:    2 hot water boilers 205 liters each

TANKAGE (approximate)
Fuel:    35,000 l
Lubrication oil:    640 l
Dirty lub oil:    640 l
Fresh water:    8,600 l
Grey / black water:    3,500 l

ELECTRICAL SYSTEM
Voltage:    230 / 400 V
Frequency:    50 Hz
Shore power converter:    N/A
Batteries:    Service batteries 2 x 24 V DC/600 Ah
Start batteries 2 x 24 V DC/112 Ah
Emergency 2 x 24 V DC 200 Ah + 55 Ah

NAVIGATION EQUIPMENT
Magnetic compass:    C.Plath magnetic compass
Gyro compass:    C.Plath gyro compass Navigat X MK1
Log:    B & G Hydra 2000
Depth sounder:    B & G Hydra 2000
Sonar:    B & G Hydra 2000
Autopilot:    Sperry Marine Navipilot V HSC
Radar:    Furuno X – band FR-1505 Mark 3
Electronic chart system:    Transas Navi sailor 4000 (2014 new software)
GPS:    DGPS Saab R4
Instrumentation system
(wind speed & direction):    B & G Hydra 2000

COMMUNICATION AND SATELLITE EQUIPMENT
Inmarsat:    Sailor inmarsat C system H-2095 C
Navtex:    Navtex receiver ICS NAV-4
Fleet 77:    Nera
Broadband Internet    N/A
GSM:    Yes
SSB radio:    N/A
VHF:    Sailor RT 5022 VHF DSC
Mini M:    N/A
Telephone exchange:    Panasonic
VHF hand held radio:    2 x GMDSS Jotron, type TRON TR-20
Printer / fax:    HP officejet

ENTERTAINMENT EQUIPMENT
TV/ DVD:    Saloon Pioneer plasma PDP 505 HDE
Satellite:    KVH M9 ( 2012 )
Music system:    Bose

DOMESTIC APPLIANCES, EQUIPMENT AND LAUNDRY
Refrigerator:    Foster Pro S 400 H ( compressor in E.R. )
Freezer:    Foster HR 150 ( 2 x extra freezer in tender garage )
Oven:    2 x Gaggenau EB 271-111
Stove:    Gaggenau CI 380-114
Microwave:    Gaggenau EM 221-110
Icemaker:    2 x Foster FCI 20
Dumb-waiter:    N/A
Dishwasher:    Miele G 7764
Washing machine:     Miele WS 5425
Dryer:    Miele T 5205

ACCOMMODATION
12 guests in 5 staterooms and 6 crew in 3 cabins

Further accommodation for up to 10 guests is provided on the lower deck as three double staterooms and an additional children’s cabin with four single berths.

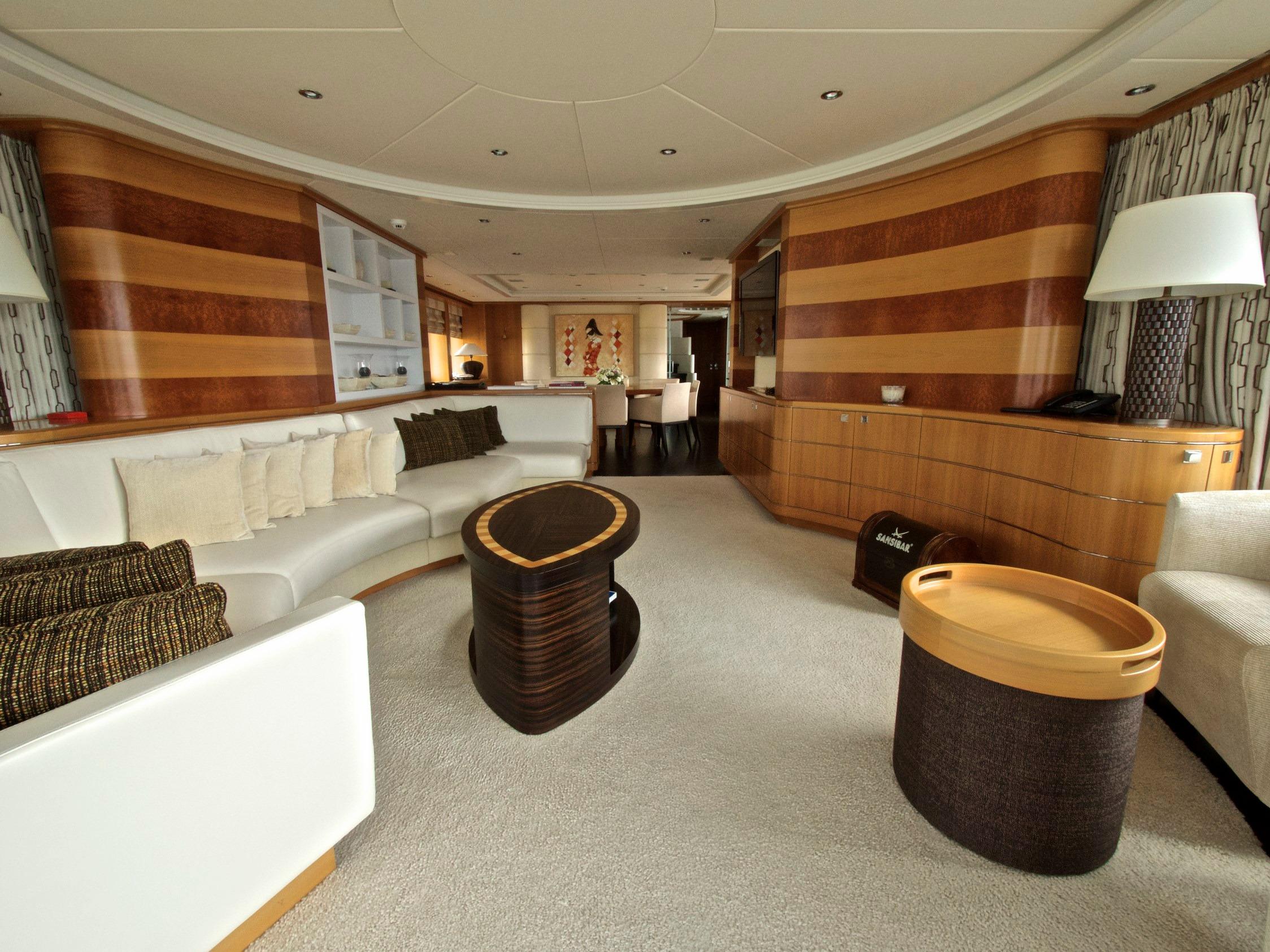

Saloon
The spacious and luxurious main saloon and dining area provides an informal area for relaxing indoors.  The interior is light with cream leather sofas.  The open saloon feels very comfortable and invites 8-10 guests for a superb dining at a round dining table.

Main Hallway
Forward from the dining salon on starboard there is a guest hallway with stairs up to the pilothouse and a day head.  This area has a Wenge floor.  An electric sliding door on the right opens to the starboard guest entrance.

Owner stateroom
The full-beam master suite lies forward on the main deck: this sumptuous retreat provides a spacious en-suite bathroom, his and hers vanities, and a walk-in wardrobe.

VIP Stateroom
The spacious VIP cabin is on the lower deck and offers a queen-sized bed with an en-suite bathroom.

Guest stateroom
Two similar guest cabins with double beds and bathroom en-suites.

Children’s Room
The children’s cabin is located on the starboard side and is an L-shape room with four bunk beds and a bathroom en-suite.

Crew Accommodation
The crew area is accessed from the laundry room through the watertight door.  There are 2 forward crew cabins and 1 on the starboard side.  All 3 crew cabins have en-suite bathrooms.  Crew cabins accommodate 6 crew.

Bridge/Pilothouse
The Pilothouse is fully equipped with all up-to-date marine instruments, and has a built-in chart table/desk and a separate table with a U-shaped couch on the port side for office work.

DECK ARRANGEMENT
The yacht boasts impressive deck areas for her size with the sundeck accommodating a large Jacuzzi surrounded by white sumbrella sunpads, wet bar, teppenyaki grill and shaded dining area.  An additional sunbathing area lies forward of the bridge and provides awesome panoramas while underway. The main deck aft provides a more formal location for al-fresco dining or relaxing.

The swimming platform is accessed through the side stair cases from the aft deck.  The stern door/garage door opens down so the door that is covered with teak becomes the perfect swim platform.  This area provides access for swimming, boarding a tender or jet ski, and setting up chairs and umbrellas to enjoy a “beach” setting.

DECK EQUIPMENT
Anchors & chain:    2 x SHHP Pool-TW galvanized anchors 149 kg
Chains 16 mm galvanized 1 x 150 m + 1 x 100 m
Cranes:    None
Windlass:    2 x Staalart type CAS12-16.ED
Passarelle:    Hydromar electric,hydraulic telescopic passarelle
Bathing ladder:    Stainless, custom
Bimini top:    2 electric awnings on flybridge
Stern capstans:    2 x Staalart

TENDER AND TOYS
Tenders:    NOVURANIA 540 Equator
Toys:    Yamaha jetskI
Dive equipment:    2 x full sets, masks and fins

SAFETY & SECURITY
EPIRB:    406 MHz   ACR RLB 32 CAT 1
Life rafts:        4 x 10 PAX Survitec ZODIAC type TO ZMEC
Life jackets:    20 x SOLAS Challenger offshore
Fire–fighting equipment:    E/R TYCO NOVEC 1230
Ship alarms:    THORN SECURITY, Minerva T 2000
Intruder alarms:    N/A
Bilge & fire pumps:    2 x 400 V bilge/fire pumps type, AKHE 5101
Searchlight:    ACR point pad, URP 102
Security cameras:    CCTV  Panasonic
Ships safes:    1 x owners, 1 x captains both JUWEL

COMMENTS
A superb example of the Heesen pedigree, CHRIMI II was built for an experienced Owner.  The yacht has since been maintained to highest standards, and has seen relatively low levels of use in the Mediterranean each summer.  From the current Owner, she was only privately used.

Built for an Owner who loves to quickly reach hidden anchorages.  But beside that, if the yacht is cruising with economical speed, the range is up to 2000 miles and perfect to cruise around the Mediterranean
