Dimensions
Displacement: 29000

Engines
Total Power: 420
Cruising Speed: 24 K
Max Speed: 29 K

INTRODUCTION

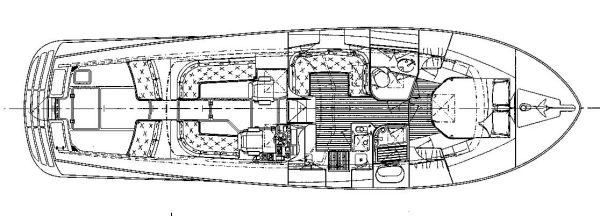

HERON features a "dinette layout" with queen berth and many custom features as build detailed by her experienced owner.

CONSTRUCTION

Flag Blue Awlgrip topsides

Light Cream gelcoat deck and cabin top with molded-in nonskid

Single Cream Awlgrip boottop

Red bottom

CONSTRUCTION:
DualGuard (tm) Composite Construction and SCRIMP process. Hinckley's DualGuard construction has a skin coat of chopped E-glass mat in low shrink vinylester resin, an outer skin of Kevlar/E-glass, a core of end-grain resin-sealed aircraft grade balsa and high-density foam, and an inner skin of carbon fiber.

In such areas as the hull/deck connecting flange, jet intakes, and all through-hull fittings, the core is eliminated and the hull massively reinforced with additional layers of fiberglass. A reinforcement stringer system of carbon is inserted into the hull, and the completed laminate (hull stringer system) is then SCRIMPed. The patented SCRIMP process, an advanced, closed-molding, resin infusion technique, and uses a strong vacuum to saturate or infuse the "sandwich" with vinylester resin in a single step. Marelon ball-valve type seacocks are then installed flush with the hull. The hull shell is supported by a combination of foam cored FRP stiffeners laminated to the primary hull, and structural bulkheads.

These materials and building techniques provide for a superior surface finish, greater resistance to osmosis, high degree of stiffness & stiffness/weight ratios, greater hull strength against impact damage, and thermal insulation.

DECK:

Pilothouse roof has a custom Hinckley mast (painted to match house) that has an anchor/steaming light, antennas, air horn and aft-deck flood light.

Foredeck anchor locker has a custom stainless steel anchor roller that can be pivoted to deck launch position. Control for anchor windlass is at the locker, as well as a remote control at helm station makes anchoring this boat simple. The anchor also can be pinned in place or pivoted back into the locker for a clean look. Freshwater and saltwater deck washes are in the foredeck locker.

Varnished teak handrails on the pilothouse top and cabin trunk provide easy access for boarding the boat or for going to the foredeck.

Vanished teak grab rail on aft end of pilothouse top has a Stamoid weather cover.

• (7) Lewmar Ocean aluminum hatches with Lexan with Stamoid Ivory covers
• (6) Trunk cabin opening port lights with removable screens
• Solid 3/4" stainless steel half-oval across the transom
• Stainless steel chocks and mooring cleats - 20" forward and mid-rail cleats
• (8) Additional Wichard folding padeyes & chafe strips for fender & docklines
• Outboard deck locker for propane storage bottles

COCKPIT
Entry to the cockpit is either from the side or through the transom. A centerline transom door with stainless steel clasp opens on to the swim platform.

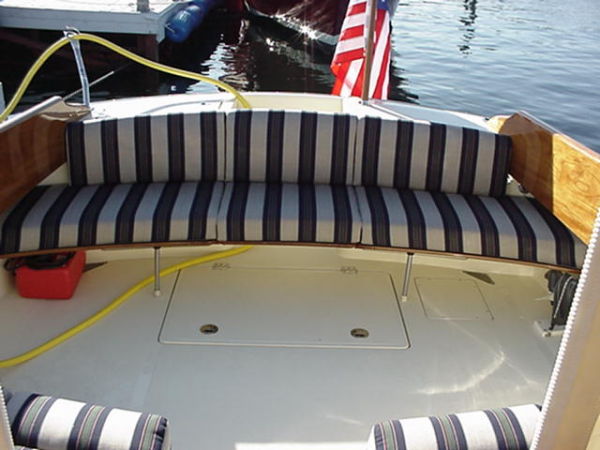

Port and starboard aft-facing settees are covered in Sunbrella Navy/Burgundy/Beige/Linen stripe fabric and have weather covers.

Aft, the forward-facing settee has an easily removable center section for transom door access to the swim platform. The settee has opening seat tops for access to storage space within and custom varnished teak trim banding around the front and inboard sides. The cushions (pilothouse matching) have weather covers.

Storage is provided in the cockpit by a locker with a custom support arm on the aft deck and by a cockpit sole hatch. Stainless steel storage racks in the cockpit sole hatch provide rope/fender storage.

Features include:

• Varnished teak cockpit coamings
• Removable teak boarding step for side decks that can be used port or starboard
• Swim platform with teak inserts and a "hideaway" stainless steel swim ladder under swim platform
• Fresh water shower with mixing valve and hot/cold water under port deck
• Aft fish locker/cooler with support arm
• Ivory Stamoid cockpit cover fastens to pilothouse top & fastens with snaps
• Ivory Stamoid weather covers for exterior cushions
• Fishing rod holders on aft deck sides with drains
• Custom removable stainless steel arm inserts in a fishing rod holder to hold up the shore power cord
• Glendinning electric shore power cord reel system
• Fishing rod holder under starboard coaming.

PILOTHOUSE
The pilothouse has 3 forward, tempered-glass, fixed windows with windshield wipers & washers. The pilothouse side windows slide open giving the helmsmen and crew members additional communication to the dock and increased ventilation.

White noise-absorbent overhead with varnished teak trim

(2) Overhead opening hatches above for excellent ventilation

Aft pilothouse exterior teak handrail

Custom varnished teak overhead handrails are on underside of pilothouse overhead.

Overhead halogen lamps on dimmers provide lighting.

(2) Hella fans in the pilothouse

(2) 12-volt outlets and (1) 110-volt outlet

Layout includes:

Forward - Stidd 500N powered helm seats in the helm area (starboard) and navigator area (port).

Aft - To port there is a L-shaped settee that has a custom varnished teak table and a padded protective cover. This table is mounted on a pedestal that can be powered up and down to form an additional bunk with cushion. To starboard is a second L-shaped settee with a custom bolster cushion.

The pilothouse can be enclosed with an aft 3-piece drop curtain in inclement weather and there are interchangeable mosquito netting panels for fair weather.

Features include:

Varnished teak dash and coaming

Varnished teak table with power up-down with padded Sunbrella protective cover (can convert to a bunk with cushion) and padded storage bag.

Stidd 500N UltraLeather Admiral covered helm seats port and starboard - Both seats to have forward/aft power on chrome pedestals and the port seat has power up-down control and a 2X footrest. There are Ivory Stidd helm seat covers.

Pilothouse 3-piece drop-down curtain enclosure with door.

Additional interchangeable 3-piece mosquito screen panels for drop-down curtain enclosure.

Pilothouse cushions - covered in Sunbrella FF Navy/Burgundy/Beige Linen Stripe fabric. Exterior throw pillows and small bolster cushion.

Interior Ivory Stamoid fabric window covers for all pilothouse windows

Marineair reverse-cycle heat/air conditioning

Espar D5L heater outlet

(2) Bose 131 stereo speakers with volume control.

Storage under helm seat.

Rheostat controls under port and starboard settees and at the helm

Reading lights on gooseneck mounts port and starboard behind pilothouse settees.

(2) 12-volt outlets

Forward to port:
The Navigator/passenger's Area has a gloss-varnished custom dash/chart locker with a lift-up lid with support arm. The Navigator's chair is a Stidd 500N polished chrome power pedestal with 2X footrest and electrically slides forward/aft and up/down, and it pivots.

Outboard the passenger seat is a varnished teak shelf and chart light.

The main DC/AC electrical panel is under this shelf.

12-volt and a 110-volt outlet in this area with stainless steel cover.

Chart light with red lens is on a flexible arm mounted above the DC panel.

Data terminal for computer connection. Serial port adapter for download of GPS waypoints from laptop computer to chartplotter.

Double drink-holder above the DC panel.

Raytheon Tri-Data depth gauge mounted in valence above windshield.

HELM: The Helm has a gloss-varnished teak dash with Hinckley JetStick, engine controls, nav instruments & gauges, and a 15" wood-rimmed steering wheel. The Stidd 500 powered helm seat is covered in Ultra Leather Admiral, slides forward and aft electrically, and pivots. A louvered teak door provides access to storage outboard the helm step. This storage area has a shelf.

There are two cup holders in locker below the helm seat with refrigerator/freezer/icemaker built in.

Oiled teak helm-step hinges up.

Outboard of the helm seat:

A varnished teak shelf with fiddle which houses the Hinckley JetStick and a cup holder.

A 12-volt outlet is near the key switches.

• NAVIGATION ELECTRONICS EQUIPMENT:
• Simrad AP-22 Autopilot
• Northstar 961 XD GPS/Color Chart plotter with differential correction interfaced to autopilot
• Furuno 1932 MK II Radar with 41" open-array antenna
• Raytheon ST-60 Tri-data displays with Speed, Depth and Temperature display mounted in starboard pilothouse valance.
• Standard Spectrum VHF radio with loud hailer - Ram microphone remote at helm
• Ritchie "Constellation" compass - at helm
• 406 EPIRB (NAT S1515 406) with manual bracket
• Serial port adapter to download GPS waypoints from laptop computer to Northstar 961.

INTERIOR ACCOMMODATIONS
COMPANIONWAY ENTRY:
Entry to the interior accommodations from the pilothouse is down the aft companionway steps, with teak handrail to port. The top and bottom steps have custom storage and there is custom liquor storage in the middle step. The companionway door is varnished teak with the top 1/3 louvered. The companionway top is a bi-fold and can be removed and stored. In addition, there is a varnished teak handrail on the companionway frame.

HERON sleeps 5 in her spacious accommodations.

Forward, there is a Master Stateroom with centerline double berth, Head, and Shower. Moving aft there is a Galley to starboard and a Dining Salon to port. The interior is finished in satin-varnished cherry with white acoustic overheads with varnished cherry battens, and a bright-varnished teak and tulip cabin sole with a cabin sole cover. All lockers have louvered doors with radius frames.

HERON amenities include:

Rheostat cabin lighting throughout providing enhanced ambiance.

Opening portlights and five opening overhead hatches provide a light and airy interior.

Hella fans provide extra air circulation when necessary.

Reverse-cycle air-conditioning in the interior and pilothouse offers additional cooling and heating comfort.

Espar D5L heater - allows heating the interior without a generator.

Interior Ivory Stamoid fabric window covers for privacy in the pilothouse.

Interior Curtains - Sunbrella with Blue pin-stripe.

MASTER STATEROOM (Forward)
Centerline entrance opens to:

A stateroom that is satin varnished with cherry sheathing, paneled cherry doors and louvered cherry locker doors. There is storage forward accessed via double doors into the partitioned chain/rope locker with room for second anchor and chain. The forward cabin has a large centerline deck hatch and there are oval opening ports starboard and port for plenty of extra light and ventilation.

Air conditioning duct for either cooling or reverse-cycle heat.

Espar D5L heater outlet

Frigast lamps mounted on the forward bulkhead as well as overhead dome light on dimmer.

(2) Hella fans - on forward bulkhead with remote wall switch

(2) Speakers have a separate volume control

(2) 110-volt outlets are port and starboard below the bunk rail.

The centerline queen bunk:

(2) Sets of fitted sheets.

Coverlet in Lee Jofa Chantal Plaid Cornflower fabric with matching pillow shams

Custom-fitted lockers port and starboard with hinged lift-tops have storage inside.

(3) Storage drawers below berth.

Additional storage:

Shelf storage outboard, port and starboard of the centerline bunk aft

Port and starboard aft hanging lockers have louvered doors and cedar sheathing.

Both hanging lockers have shelf over.

Additional bin storage is forward of the hanging lockers

Lift-up port and starboard cabin steps

Bookshelves port and starboard

HEAD AREA:
Aft of the forward stateroom is the ensuite Head with the marine Head to port and Shower area to starboard. There are opening ports and opening deck hatches in both the head and the shower. A solid cherry door leads to the rest of the accommodations.

Head to port:
The Head area has an off-white colored fiberglass sole with molded-in nonskid. The bulkheads in the head are satin-varnished cherry.

Corian Dusk Sierra countertop with polished stainless steel sink

Grohe fixtures, hot and cold pressure water

(4) Stainless steel towel bars, as well as towel hooks.

Head locker has a partitioned top shelf

Sealand Vacu-flush marine head is plumbed directly to the 35-gallon holding tank. The holding tank can be discharged overboard through the Sealand macerator pump or through a deck pump-out.

Espar heater and reverse-cycle air conditioning system have ducts in the head.

Lighting on dimmer

Shower to starboard:
Separate Shower with Off-White bulkheads and fiberglass sole with molded-in nonskid.

Teak seat

A watertight divided storage/towel locker is outboard just over the oiled teak shower seat.

Stainless steel towel rack

Robe hooks for hanging towels or wet gear.

There is an outlet for the reverse-cycle air conditioning system in the shower.

MAIN CABIN (Amidship):
The Main Cabin has a U-shaped dinette to port and galley to starboard. The cabin is finished in satin-varnished cherry, has white acoustic overheads with cherry battens, and a gloss varnished teak and tulip sole.

Two large overhead opening hatches add extra light + ventilation to this full thwartship area.

Reverse-cycle air conditioning offers additional comfort in all conditions.

Ambiance dimmer lighting.

Espar diesel heater

Aft are three steps that lead up to the pilothouse and there is a wine holder and storage under the steps. There is a varnished cherry handrail on the companionway frame to assist in exiting to the pilothouse.

To Port: DINING SALON
U-shaped dining area comfortably seats five. Lee Joffa Losanges Stripe Lapis fabric covers the dining cushions.

The varnished custom cherry dining table, with a padded cover, is on a Stidd chrome pedestal.

The table pedestal can be raised and lowered manually and allows the table to form a double berth. The drop-down position includes a filler cushion.

Outboard are louvered cherry lockers, an entertainment center, storage alcove with removable fiddle, custom bottle storage and stereo speakers. A lighted storage area is provided aft of the dinette and there is a custom access panel to storage under the deck.

Opening portlight outboard.

Additional lighting provided by two Frigast stainless steel lamps and by a recessed halogen lamp over the dining table.

110-volt outlet

Entertainment Center:

Alpine CD/DVD stereo system with amplifier

Speaker pairs have separate volume control

GALLEY (Starboard):

Corian "Sahara Magna" countertop with polished stainless steel double sink

Grohe fixtures and sprayer with hot & cold pressure fresh water system

Force 10 Stove - Stainless steel 3-burner propane with oven - with a wood stove cover

Custom Hinckley refrigeration/freezer cold-machine system - top twin-loading, with lighting and sliding shelf

Microwave oven

Hella fan

110-volt outlet

Pull-open trash bin

Alcove area has fiddle for storage

Starboard is the U-shaped GALLEY finished in satin-varnished cherry cabinetry with louvered locker doors.

Forward: Is the sink with Grohe chrome faucets with hot & cold pressure water and hand sprayer. The countertop has a back splash to protect the cherry laminated bulkhead. Inboard of the sink there is an under-counter pull-open trash receptacle.

Outboard: Outboard the sink is a below-counter dry storage area. There is a 3-burner propane stove with oven and a wood stove cover. There is varnished cherry sheathed alcove storage directly outboard with storage lockers forward & aft. Additionally there are three drawers with dividers for silverware, knives, etc. There is a Hella fan. A 110-volt outlet is in the forward outboard corner of the galley.

Aft, there is a custom Hinckley refrigeration system - top-loading with lighting that is triggered when opened, sliding shelf storage inside and a freezer. Additional under counter dry storage area.

Above the aft outboard refrigeration is a locker with microwave. Lighting is built-in to the bottom of the locker giving concentrated light to the countertop. There is a 110-volt outlet, Hella fan and a Guest 12-volt outlet.

• ENTERTAINMENT ELECTRONICS:
• Alpine CD/DVD Stereo player with remote, amplifier + 8 speakers, each speaker pair with volume control:
• (2) Alpine speakers in forward cabin.
• (2) Alpine speakers in dinette.
• (2) Bose speakers in the pilothouse
• XM Radio receiver
• 15" Monitor - mounted on movable bracket with jacks in pilothouse and galley.
• TV shore cable hook-up
• (2) Bose speakers in the cockpit

ELECTRICAL
Separate 12-volt DC starting and accessories systems. 120-volt and 240-volt AC systems from shore power and generator.

The Generator is sound shield mounted and is complete with DC voltmeter, water temperature gauge, oil pressure gauge, hour meter, control switch, shut-down by-pass switch and pre-heat. Indicator lights show the operation of the generator (at helm) and fuel pump.

There is a shore inlet for cable TV and phone with cables.

• 12V-DC SYSTEMS:
• Two (2) Lifeline GPL-27 12-VDC 95-amp/hr batteries - main engine & generator start
• Three (3) Lifeline DF8D 12-VDC 225-amp/hr batteries for accessories
• Custom Bass 12-volt DC electrical circuit panel
• 12-volt 80-amp alternator on port engine for starting battery charging
• 12-volt DC 100-amp alternator for ships service batteries
• 35-amp alternator on generator for starting battery charging
• (3) 12-volt outlets
• 120V-AC & 240V-AC systems:
• Fischer Panda 12-Kw generator (Approx. 112.5 hrs - 6/2006) rated for 240-volt AC, 60-Hz (Light at helm illuminates when generator is operating).
• Custom Bass 120-volt AC electrical circuit panel
• Freedom 2500 Inverter with Link 1000
• 50-amp Shore power cord with Glendinning Cablemaster cord reel system
• (4) Additional 110-volt outlets
• Copper electrical bonding system.
• GFI protected circuits in galley, engine room and head.

MECHANICAL
Twin 2001 Yanmar 6LY2-STE diesel 420-hp 6-cylinder in-line engines with Twin Disc 1.50:1 reverse/reduction gear, Aqua Drive CV shaft system, and twin Hamilton 321 waterjets. Mathers electric single-lever controls and synchronizer control the engine RPM's & transmission. Patented Hinckley JetStick® control system integrates forward and aft motion of the boat, steering, and the 10" electric bow thruster.

Tankage:

35-gallon holding tank - with custom locking system for overboard drain-out seacock

(2) Aluminum alloy 150-gallon wing fuel tanks

(1) 200-gallon centerline tank with remote fuel gauges

(2) Fuel transfer pumps with switch at helm

100-gallon aluminum fresh water tank

MORE:

Engine room access includes custom ladder

Two-inch foam/lead fully insulated engine room and flexible engine mounts provide quiet, vibration-free cruising.

Side Power 10" bow thruster integrated with JetStick®

32,000 BTU Marineair reverse-cycle air conditioner services pilothouse, galley, dinettes, head, shower, and forward cabin

Double Racor in-line fuel filters for engine & generator

Racor LG-100 in-line fuel/air separators (3)

Alarms for water in fuel

Water sensors, drain petcocks and vacuum gauges for Racors

• Engine tachometer with hour meter gauge
• Waterjet angle gauge at helm
• Engine oil pressure gauge
• Engine cooling water temperature gauge
• Floscan 9600 fuel monitoring system for each engine
• Indicator lights to show operation of fuel transfer pumps
• Low oil pressure alarm
• High cooling water temperature alarm
• Oil transfer pump for engines, transmissions, & generator
• Additional 12-volt fuel transfer pump - portable
• Carbon monoxide 12-volt sensor - portable
• Par 6900 saltwater deck wash pump with spigot mounted in forward anchor locker
• Paragon Sr. freshwater pump - with spigot mounted in forward anchor locker
• High water bilge alarm system with Ultimate Senior switches
• (3) Rule 3500-gph 12-volt DC automatic bilge pumps
• Whale Gusher bilge pump
• Fireboy automatic fire extinguisher system: For main engines, with automatic engine shut-down
• Fire extinguishers
• Electrical and mechanical spare parts kit.
• Cold machine refrigeration with freezer

ADDITIONAL EQUIPMENT
Ground Tackle:

Lewmar Ocean 2 electric 12-volt DC windlass in the anchor well.

Custom 316L stainless steel bow roller

Bow roller mounted stainless steel Delta anchor with 50' x 3/8" stainless steel chain + 200' x 5/8" nylon rode

Fortress secondary anchor with padded bag mounted in forepeak + 25' chain + 200' rode in bag

Anchor snubber

• EQUIPMENT:
• ACR spotlight mounted on pilothouse top with remote at helm
• Aft deck floodlight mounted on mast
• Teak bow burgee pole
• Brass 6" bell
• Ivory Stamoid weather covers for exterior cushions, exterior hatches, and exterior handrails
• Toast Sunbrella cabin sole covers for forward cabin, galley and dinette.
• Navigation lights
• Dock lines
• Fenders with covers
• Boat hook
• Liferaft - 6-man Winslow SL/OR - inflatable floor + tri-arch
• Coast Guard safety package
• 406 EPIRB - NAT S1515 - mounted
• Life jackets
• Parker stainless steel propane grill - with quick disconnect and teak platform
• Weaver snap davits for inflatable dinghy - holds dinghy in vertical position while underway
• Avon 2.81 Rover inflatable dinghy
• Yamaha 5-hp 2-cycle outboard engine - custom stored in mounts under side deck
• Spare parts kit

• ** Personal Items Do Not Convey **

COMMENTS

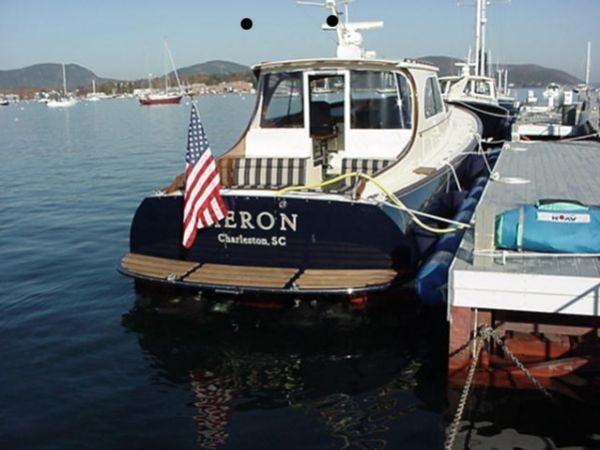

HERON is an excellently detailed Talaria 44. The experienced owner had her built with many custom features. She was refurbished during winter 2005-6 by Hinckley. All maintenance and other work has always been done at Hinckley yards, almost all at Southwest Harbor.

Disclaimer
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
