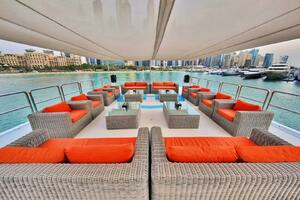

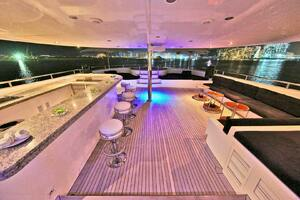

Sundeck:

The sundeck consists of a touch-and-go helipad area that can be used for pick-up/drop-off of guests, or when not in use, as a large lounge area with seating for 16 guests, covered by a large awning providing guests with plenty of shade.

Forward to it, you will find an "al fresco" dining table for 12 guests, a BBQ grill station, a bar accommodating 7 guests on the port side, and a seating area on starboard.

All the way forward lies a jacuzzi accommodating up to seven guests, surrounded by 2 sunbathing areas fitted with 2 parasols providing shade whilst in the Jacuzzi.

For entertainment, the sundeck is equipped with a large TV, a high-end sound system, and discotheque lights.

Bridge deck:

The bridge deck aft is used to store the two Novurania tenders and the two Yamaha jet skis. Once unloaded thanks to the cranes fitted in the ceiling, the aft deck becomes a great flush area that could be fitted with any loose furniture of your choice.

Before the refit, the "al fresco" dining table used to be located in the center of the deck, between the tenders, and could easily be reinstalled in its initial position if needed.

Foredeck:

Right in front of the bridge, you will find a small seating area for couples to enjoy the views underway.

Main deck:

Accessing the main deck via a wide and centered passarelle, you will find a seating area that can accommodate about 8 to 10 guests thanks to its two opposite sofas and low tables.

DECK ARRANGEMENT - SUNDECK

Jacuzzi                                   ALIMIA Experience, 6-7 Seats

Bar                                         Accommodating 7 guests

Helipad                                  Touch & Go

DECK EQUIPMENT

Chains                                    2x Maxwell, Marine type, 18 mm, 165 m, 1,370 kg

Anchors                                 2x 360 kg, stainless steel, custom made

Cranes                                   2x Brook Hansen, 2.2 tons, electrical

Windlass                                2x Maxwell, hydraulic

Passerelle                              Nautical structure, 230 kg, hydraulic

Stern capstans                      2x Maxwell, hydraulic

Upper saloon:

The upper saloon consists of a large sofa for 6 guests, a bar accommodating 5 guests fitted with a white marble top, a large screen TV, and white leather stools. The floor is made of polished timber wood and together with the high-end sound system consisting of 12 speakers, a subwoofer, and a mixer, this area is ideal for celebrations.

Main Salon / Dining room:

This open-plan's floor is made of marble with polished timber inlays and serves two functions. Entering from the aft deck, you will find the lounge area fitted with generous white leather sofas on each side, white leather stools, low tables, and a large TV screen.

Continuing forward, you will reach the dining area fitted with a round transparent glass table that can accommodate up to 8 guests on white leather chairs, surrounded by lots of storage.

On the port side of the dining area, you will find access to the pantry and on starboard access to the day head.

Crew area:

The crew area consists of a large crew mess accommodating the crew for meals and breaks, equipped with a TV screen, a professional galley fitted with all new equipment, a walk-in fridge/freezer, and 4 crew cabins, all with en-suite bathrooms.

Special rooms / Staff cabins:

On the lower deck amidship are lying 2 extra twin staterooms, both fitted with large individual beds, en-suite, and TV. These cabins could be used for extra staff such as nannies, assistants, security, doctors, etc.. or could eventually be converted into gym/spa/massage rooms.

12 GUESTS in 6 CABINS / 4 STAFF in 2 CABINS / 14 CREW in 6 CABINS

Accessed through the main saloon:

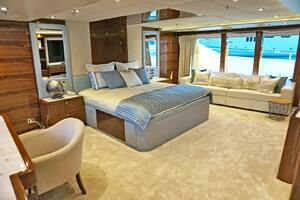

Owner's stateroom

- Located on the main deck forward

- King-size bed, large sofa, marble-top desk with vanity, 3 wardrobes

- Large windows x6

- Large en-suite bathroom with Jacuzzi

- TV & Bose sound system

VIP stateroom

- Located on the main deck forward, on the starboard side

- Queen size bed, wardrobe

- Large windows x2

- En-suite bathroom

- TV & sound system

Accessed via the dedicated staircase on the main deck aft:

Guest stateroom 1 - Double

- Located on the lower deck aft, on the port side

- Queen size bed, wardrobe

- En-suite bathroom

- TV & sound system

Guest stateroom 2 - Double

- Located on the lower deck aft, on the starboard side

- Queen size bed, wardrobe

- En-suite bathroom

- TV & sound system

Guest stateroom 3 - Twin

- Located on the lower deck aft, on the port side

- Large twin beds, wardrobe

- En-suite bathroom

- TV & sound system

Guest stateroom 4 - Twin

- Located on the lower deck aft, on the starboard side

- Large twin beds, wardrobe

- En-suite bathroom

- TV & sound system

Accessed via amidship's staircase on the main deck:

Staff stateroom 1

- Located on the lower deck amidship, on the port side

- Large twin beds, wardrobe

- En-suite bathroom

- TV & sound system

Staff stateroom 2

- Located on the lower deck amidship, on the starboard side

- Large twin beds, wardrobe

- En-suite bathroom

- TV & sound system

Crew cabin 1 - Captain's cabin

- Located on the bridge deck forward, on the port side

- Queen size bed, wardrobe, direct access to the bridge

- En-suite bathroom

- TV & sound system

Crew cabin 2 - Chief Engineer's cabin

- Located on the bridge deck forward, on the starboard side

- Queen size bed, wardrobe, direct access to the bridge

- En-suite bathroom

- TV & sound system

Crew cabin 3

- Located on the lower deck forward, on the port side

- 4x bunk beds, 2x wardrobe

- En-suite bathroom

Crew cabin 4

- Located on the lower deck forward, on the starboard side

- 2x bunk beds, 2x wardrobe

- En-suite bathroom

Crew cabin 5

- Located on the lower deck forward, on the port side

- 3x bunk beds, 2x wardrobe

- En-suite bathroom

Crew cabin 6

- Located on the lower deck forward, on the starboard side

- 3x bunk beds, 2x wardrobe

- En-suite bathroom

Main engines                         2x CAT 3512B, total 2,684 kW (installed 2002)

Engine Hours                         Port: 6,191 Hrs / Stbd: 6,189 Hrs (November 2022)

Generator                              2 x Northern Lights M6125T, 185 kW (installed 2002)

Generator Hours                   Port: 10,028 Hrs / Stbd: 8,409 Hrs (November 2022)

Emergency generator           Yanmar YDG 6600YTE-E

PERFORMANCE

Cruising speed                                   12 knots

Max speed                             13.2 knots

Range at Cruising Speed        2,890 nm @ 12 knots

Consumption approx.           610 L/h at 12 knots for 2 engines and 1 generator

Bowthruster                          Koopnautic, 75 kW, hydraulic

Water maker                         2x Matrix 860 L/h, total 1,720 L/h

Stabilizers                             Koopnautic, fins

Fuel separator                      Alfa Laval, MAB 104 (new 2019)

Air conditioning                     Heinen & Hopman, MC 785 chiller-2, 90 kW

Wastewater treatment         Headhunter treatment plant, Tidal Wave 50 B

Oily water separator             Heli-Sep, 500-OCD

Toilet system                         Headhunter, electric

Boilers                                   2x 100 L Marine, electrical

Fuel capacity                         147.000 L / 38,833 US gallons

Lubrication oil                       3.400 L / 898 US gallons

Dirty lub oil                            1.400 L / 370 US gallons

Fresh water capacity             15.830 L / 4,182 US gallons

Grey water                            4.980 L / 1,316 US gallons

Black water                           1.325 L / 350 US gallons

Voltages                                 380 V

Frequency                              50 Hz

Inverter                                  380 V / 220 V

Shore power converter          3 phase, 50/60 Hz

Batteries                                24 V emergency power covered by a total of 20 batteries of

12 V / 200 Ah (new 2019)

Steering                                 Koopnautic, hydraulic

Propellers                              Conventional drives, 4 blades

Gearbox                                 Reintjes WAF742, ratio 3.55:1

Navigation lights                    Boning AHD 880TC

Steering gear control             Alarm unit AL8-2

Propeller console                   Kobelt

Ais                                          Simrad V5035

Wiper control                         W4NN

PC                                           Acer Aspire Z3-615

Magnetic compass                 Cassens & Plath

Gyro compass Repeater         Simrad AR80

Gyro Compass Motherboard  Anschutz Digital Gyro STD22 (new 2020)

Speed log                               Consilium / SAL SD 1-7

Depth sounder                       Simrad EQ60 S 2016 (new 2020)

Sonar                                      Simrad EQ60 S 2016 (new 2020)

Autopilots                               Simrad AP50 (new 2020)

Simrad HS50 (new 2020)

Radars                                    Furuno RCU-028 (new 2020)

Furuno RCU-014 (new 2020)

Electronic chart system          Danelec, DM700

GPS                                        2x Furuno GP-170 (new 2020)

Instrumentation system

(wind speed & direction)       Furuno RD-33 (new 2020)

Talk Back                               Stento ETB-10

Telex                                       JRC NKG-800 /JRC NKG-900 (new 2020)

Inmarsat-C                                       JRC, JUE-87 (new 2020)

Navtex                                             Furuno NX-700

Data Terminal                                  JRC NDZ -127J

Broadband internet / WIFI          2x TELTONIKA RUT950 / 2x UNIFI SWITCH 24 (new 2020)

Radiotelephone                               JSB-196GM

VHF                                                 JRC, JHS-32B / Furuno FM-8900S (new 2020)

Satellite Phone                                COBHAM (installed, to be connected and activated)

Telephone exchange                     Panasonic, TE3824

VHF hand held radios                    3x iCOM IC-GM1600E (new 2022)

Printer/scanner                               Brother, DCP-T 520W  (new 2022)

NBDP/DSC                                     NCT-196N

SUN DECK

Grill                                       NORTH Pro Gas HS2 (new 2019)

UPPER DECK

Ice-maker                              SCOTSMAN AC46

GALLEY

Waste disposal                     DISPERATOR 510BS (new 2019)

Fryer                                     TECNOINOX 316077 (new 2019)

Grill                                       TECNOINOX 316061 (new 2019)

Induction                               TECNOINOX 316026 (new 2019)

Oven                                      EKA EKF611CTC(new 2019)

Ice-maker                              BARTSCHER A100062V(new 2019)

Fridge                                    KAPPA METAL custom with glass doors(new 2019)

Walk-in Fridge/FreezerTECHNOFREEZER Custom  (new 2019)

Microwave                             DCB11E (new 2019)

Dishwasher                            ELECTROLUX 400141 (new 2019)

CREW MESS

Oven                                      BOSCH HKR39C150(new 2019)

Fridge/Freezer                                  WHIRLPOOL (new 2019)

PANTRY

Ice-maker                              VITRIFRIGO(new 2019)

Fridge/Freezer                      PROG 1100H

Wine cellar                            AVINTAGE (new 2019)

Dishwasher                            BOSCH 00089(new 2022)

LAUNDRY

Washing machines                1x BOSCH serie6 WAQ2448XES/16 (new 2019)

                                              1x LG ThinQ 204PNRT27974 (new 2022)

Drying machines                   1x BOSCH WTG86260EE/04 (new 2019)

                                              1x CANDY Smart Pro H8A2DE-S (new 2022)

All entertainment equipment was renewed 2019-2022.

The public system was upgraded to BlueOs controlled by iPad tablets.

OWNER'S CABIN

TV                                         SAMSUNG 7 series, 72"

Media player 1                      GOLDEN MEDIA Wizard HD Vote 2

Media player 2                      APPLE TV 4K 32GB

Media player 3                      ZIDOO Z9S

Sound system                       BOSE Lifestyle 35, 5.1

Control                                  iPad Mini 2019 64GB

VIP CABIN

TV                                         LG LM63, 32"

Media player 1                      APPLE TV 4K 32GB

Media player 2                      ZIDOO Z9S

AV receiver                           YAMAHA RX-V385

Speakers                               MONITOR AUDIO Pro65, in ceiling

Control                                  iPad Mini 2019 64GB

GUEST & STAFF CABINS

TVs                                       All 32": PHILIPS TX-32LE7Y / SAMSUNG UE32M5000 / LG LM63

Media player 1                      APPLE TV 4K 32GB

Media player 2                      ZIDOO Z9S

AV receiver                           YAMAHA RX-V385

Speakers                              MONITOR AUDIO Pro65, in ceiling

Control                                  iPad Mini 2019 64GB

SUN DECK

TV                                         SAMSUNG UE58RU7179U, 58"

AV receiver                           MARANTZ SR5013

Media player                         APPLE TV 4K 32GB

Media player 2                      ZIDOO Z9S

Music streaming                   BLUESOUND Node 2i

Speakers                              6x SONANCE Mariner 86 / 4x SONANCE VPXT8R marine

Amplifier                               SONANCE DSP 2-150 MKII

Control                                  iPad Mini 2019 64GB

UPPER DECK

TV                                         LG 49UM7100PLB, 49''

AV receiver                           MARANTZ SR7013

Media player                         APPLE TV 4K 32GB

Media player 2                      ZIDOO Z9S

Music streaming                   BLUESOUND Node 2i

Speakers                              2x JBL ELX20018S / 6x SONANCE VP52R / 4x PARADIGM P65RX

Subwoofer                            FOCAL Sub Air

Amplifiers                             CROWN AUDIO DCI 2 300N / SONANCE 12-50

Control                                  iPad Mini 2019 64GB

MAIN DECK

TV                                         LG OLED 65C1, 65"

AV receiver                           MARANTZ SR7013

Media player                         APPLE TV 4K 32GB

Media player 2                      ZIDOO Z9S

Music streaming                   BLUESOUND Node 2i

Speakers                              10x SONANCE VP52R / 4x PARADIGM P65RX

Subwoofer                            FOCAL Sub Air

Amplifier                               SONANCE 12-50

Control                                  iPad Mini 2019 64GB

Tenders                                 2x Novurania 560Q, 18'5" (5.60m), 150 HP Yamaha

Toys                                       2x Yamaha Jetskis, Waves Runner 1200cc

Diving equipment                  1x Diving compressor, 4x Diving equipment

SSAS                                    2x JRC NQE 3224

EPIRB                                  2x Jotron, Tron 60S

Life rafts                                4x YOULONG 15870

Life jackets                            38

Fire-fighting equipment        TYCO Marine Minerva T2000, Aquamist Selco

Intruder alarm                        Wireless Bell Gangway

Bilge & fire pumps                 2x Beijer Pro

Searchlight                            Norse light, NR 20R20

Security cameras                  Prolab, HD-8R1080P

Ships safes                             7x Arfe, Pregex

SART                                      2x Kannad marine (new 2022)

Marine Distress Fire Signals  12x Parachute, 4x Smoke, 6x Hand-flare

Damper control panel             Marine Electricals

Pharmacy                              Full package A2

Walkie Talkie                         5x HX40E, 1x HX 210 / 8x XT50

Life Buoy                                8x White, 8x Red

Listing MLS by Yachtr.com
