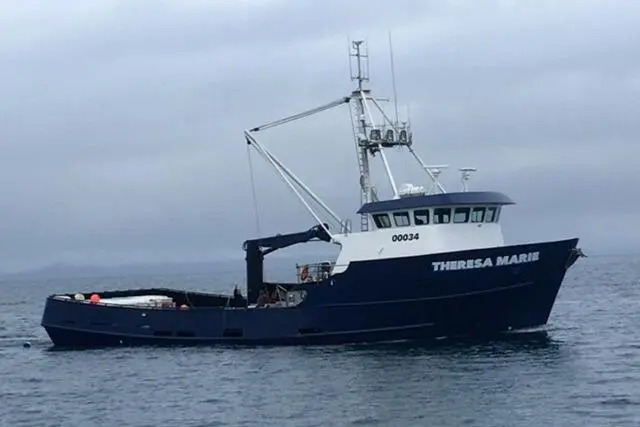

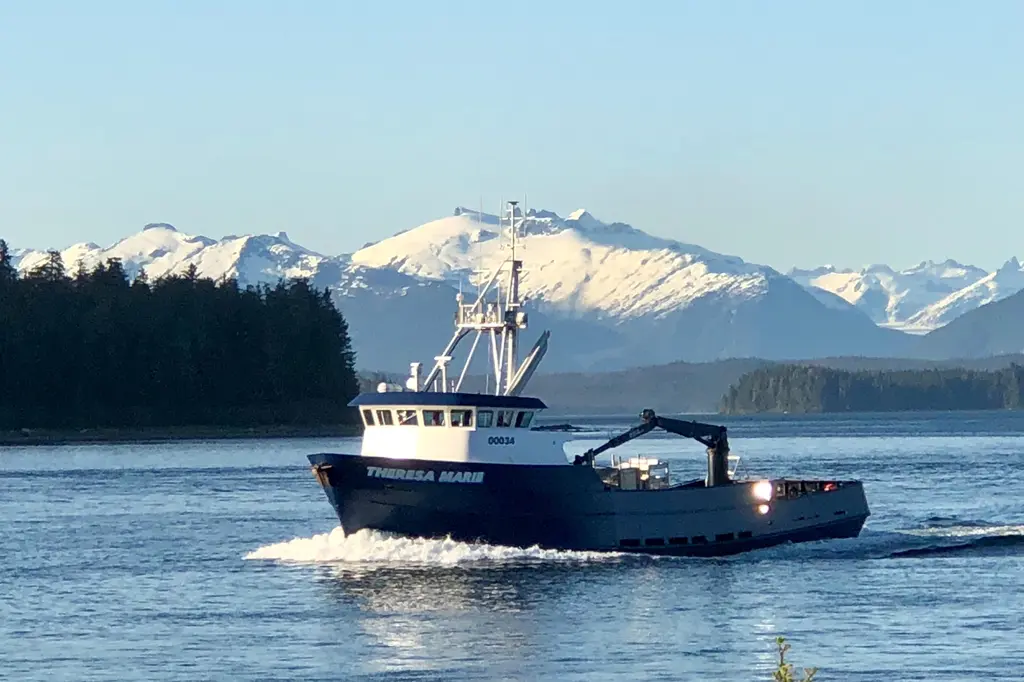

F/V THERESA MARIE -- 93.3' Steel Cannery Tender (Petersburg, AK)

Vessel ID

• Name: F/V THERESA MARIE

• Type: Cannery Tender (originally built on Bering Sea king crab harvest vessel design)

• Builder: Marine Power & Equipment (Seattle, WA)

• Year: 1974

• Hailing Port: Petersburg, Alaska

• Give me a call about gear included and tender contract.

Principal Dimensions & Tonnage

• LOA: 93.3 ft

• Registered Length: 83.3 ft

• Registered Breadth: 30.8 ft

• Registered Depth: 11.8 ft

• Gross/Net Tons: 179 GRT / 53 NRT

Hull, Deck & Structure

• Construction: All welded mild steel hull and superstructure; aluminum tophouse

• Hull Form: V-entry, raked stem, moderate flare, pronounced sheer, single hard chine, squared stern

• Lengthening/Sponsons: Duwamish Shipyard (Sept 1991) -- sponsons total 8 ft; lengthened 10 ft beyond rudder

• Reported Scantlings:

  • Hull side/bottom plating: 3/8" mild steel

  • Deck plating: 1/4" mild steel

  • Deep frames: 8.5" x 3" flange x 1/4" @ 48" centers

  • Longitudinal framing: 3" x 2" x 5/16" steel angle @ 20" centers

  • Deck longitudinals: 3" x 1/4" flatbar @ 18" centers

  • Under deck transverse frames: 4" x 3" x 3/8" angle @ 48" centers

  • Chine bar: 3" x 1" flatbar

  • Keel shoe: 10" x 1" flatbar

• Watertight Subdivision: 6 transverse bulkheads to main deck (forepeak void; forward engine room; aft engine room; aft #1 fish hold; aft #2 fish hold; lazarette)

• Deck Drainage: 20 freeing ports (port and starboard)

• Working Deck: 1/4" steel deck plate; 2" x 6" planks in main hatch areas

• Bulwarks: Forward bulwarks 40" high tapering aft; capped 2" x 4" steel tube; aft bulwark capped 2" x 4" steel tube with 2" steel pipe rail above

• Hull/Work Guards: 6" half-pipe sheer strake guards; stainless pot guard (starboard hauling area)

• Cleats/Chocks: 7 cast steel 24" cleats; ring chocks at bulwarks

Tankage & Capacities

• Fuel Capacity: 31,904 US gal (diesel)

• Fuel Tanks: 10 total integral fuel tanks (outboard main fish holds)

• Fresh Water Capacity: 3,497 US gal (integral steel tank in lazarette)

• Sewage Holding: 414 US gal (Type III MSD holding device)

• Additional Integral Tanks: lube oil storage; waste oil; hydraulic oil

Propulsion & Drive Train

• Main Engine: Detroit Diesel 16V-149 (non-turbo) -- 940 HP

  • Unit #: 16E0013770

  • Spec #: 9162700

  • Hours Indicated: 8,661 (meter; since new in 2001 per meter statement)

• Controls: Mathers Micro-Commander 91110 (S/N 30047775)

• Transmission: Twin Disc MG 5301 deep case (S/N 3AH493)

• Reduction Ratio: 6:1

• Shafting: 6" propeller shaft with stainless tail shaft

• Bearings: 4 Cooper bearings

• Shaft Seal: Dripless type gland

• Cooling: Closed pressurized cooling through structural channel keel coolers (main + generators)

• Exhaust: Welded steel pipe with bellow flex joints; stainless steel where exposed to weather

Fuel System (Supply, Transfer, Filtration)

• Fill Locations: Port and starboard deck stand pipes

• Manifolds: Port and starboard fuel manifolds with ball valves (marked)

• Transfer Pumps: Two transfer pumps with meters; one electrically driven gear type transfer pump with relief valve (engine room)

• Filtration: Racor filter/water separators + engine-mounted spin-on filters

• Main Engine Racors: Dual Racor units plumbed in parallel

• Centrifuge: Westfalia OTA2-00-066 fuel-oil centrifuge

• Vents: Port and starboard, high off deck

Electrical (AC/DC) & Distribution

DC System (12V)

• Electronics Bank: 2 x 8D batteries

• Port Generator Start: 1 x 8D battery

• Starboard Generator Start: 1 x 8D battery

• Charging/Monitoring: Marine battery chargers; Blue Sea individual circuit breakers

• Battery Switches: Rotary type

AC System (208V 3-Phase / 60A Service)

• Shore Power: Hard-wired shore plug to vessel panel

• Source Selector: Manual selector (forward engine room main electric panel)

• Panels: Main switchgear + labeled subpanels with individual breakers

• Monitoring: Voltage and amperage analog gauges

• Wiring: Neoprene encased stranded copper marine-grade in chases

• Outlets: AC outlets throughout vessel

Generators

• Starboard Generator: Detroit Diesel Series 50 -- 200 kW (208V three-phase)

• Port Generator: Detroit Diesel 4-71

• Cooling: Structural keel cooled

• Filtration: Racor + engine-mounted spin-on filters

• Exhaust: Dry stack (insulated)

Hydraulics

• Hydraulic Pumps: 2 x Vickers triple cartridge vane pumps

• Drive Motors: 75 HP electric motor + 100 HP electric motor

Deck Machinery & Rigging

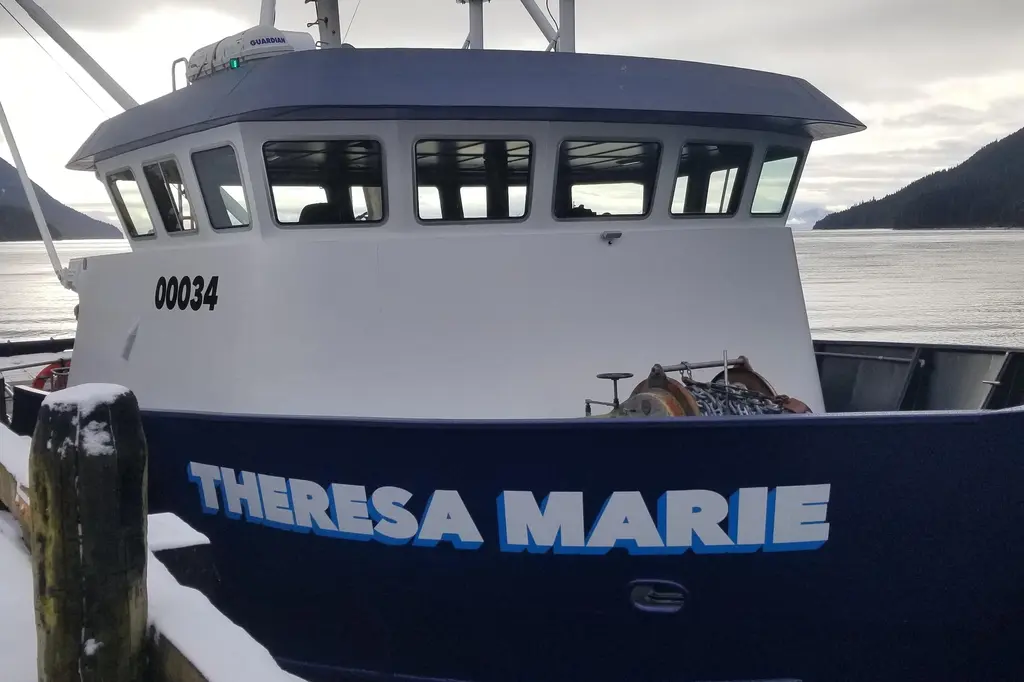

• Anchor Winch: Nordic hydraulic anchor winch with hand brake and horizontal capstan

• Deck Crane (Port): Custom North American 30' hydraulic knuckle boom

  • Winch: Rotzler #3 with 100' of 1/2" galvanized wire

  • Controls: Operated from main or 01 deck starboard side

• Picking Boom (Starboard): 6" schedule 80 pipe

  • Winch: Rotzler #2 with 120' of 1/2" Spectra line

  • Controls: Starboard side behind house

• Mast/A-Frame:

  • Mast: 12" schedule 80 steel pipe with rungs

  • A-Frame: welded pipe structure supporting mast/rigging/antennas/lights

Fish Handling, Tender Gear & Cold Chain

• Fish Pump: Trans Vac with 40 HP electric motor

• De-water Box: Aluminum

• Sorting Table: Aluminum with money fish boxes

• Weight Box: Aluminum

• RSW: IMS 50-ton on-deck self-contained RSW system

• Fish Holds: Two main holds, polyurea coated

• Reported Fish Pack: 230,000 lbs total salmon

• RSW Pumps:

  • Condenser pump: 2" x 1-1/2" electric

  • Circulating pumps: 2 x 6" electric (port and starboard)

• Crab Gear: Steel davit + Yaquina Boat line hauler model 2469

• Air Compressors: 2 x Ingersoll Rand T30 dual stage service air compressors

Accommodations & Interior Systems (Crew-Oriented)

• Berths: Sleeps 8

• Heads: 2 (main deck + master)

• Showers: 2 independent shower stalls (one per head)

• Laundry: Frigidaire stackable washer/dryer

• Ventilation: Fantech air handlers

• Heating: Wall-mounted electric heaters + forced-air heaters/ducting to bridge/windows

• Galley Equipment:

  • Sink: Deep double stainless sink

  • Stove/Oven: Lang stainless marine 2-burner with grill top + oven

  • Microwave: Stainless over-counter microwave

  • Cold Storage: Commercial walk-in freezer + refrigerator/freezer (noted in layout narrative)

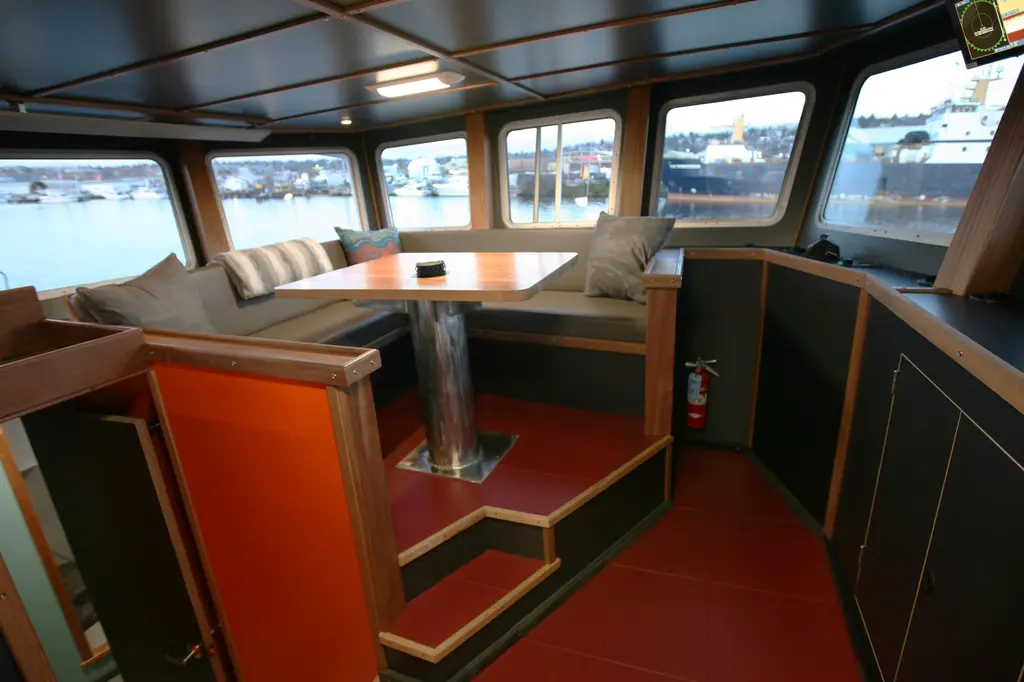

• Layout Highlights: Galley and dinette on main deck; engineer stateroom (twin bunks); crew bunk room (4 bunks); master stateroom and master head on 01 level

Steering & Stations

• Steering: Hydraulic steering with manual helm + self-contained electric power pack

• Helm Pump: Wagner

• Stations: 3 total -- centerline manual helm + port and starboard wing stations

• Steering Ram: Wagner "T" ram

• Rudder Stock: 4" stainless

Electronics, Navigation, Comms

• VHF: 2 x ICOM IC-M424

• 2-Meter Radio: 1 x ICOM

• Radar: Furuno 1513

• GPS: 2 x Furuno GP33

• Plotter: Furuno TZ Touch color plotter

• Sounder: Furuno DFF with 2 transducers

• Compasses: Furuno SC-70 satellite compass + Sperry 8" magnetic

• Autopilot: Simrad AP70

• Navigation PC: HP laptop with TimeZero

• Satellite Comms: Sailor Fleet 1 satellite phone + Mitsubishi satellite phone (caller ID)

• Internet: Starlink marine roaming

• CCTV: Closed circuit camera system (engine room + aft deck)

• Entertainment: Samsung Bluetooth stereo; 2 flat screen TVs with DVD players and sound bars

Ground Tackle

• Anchors: 1 x 1,000 lb Danforth + 1 x 750 lb Danforth (spare)

• Chain: 2 shots of 7/8" stud link chain

• Wire: 400' of 7/8" galvanized steel cable

• Hardware: Devil's claw chain hook and turnbuckle

Safety Equipment (USCG Inventory Listed)

• Immersion Suits: 6 adult + 1 jumbo + 1 intermediate

• Ring Buoys: 3 total (one with MOB light)

• Life Sling: 1 (forward 01 deck)

• Liferaft: Guardian 8-person (SOLAS A pack)

• EPIRB: McMurdo 406 MHz Class A

• Visual Distress: 6 handheld flares + 3 smoke + 3 parachute

• Fire Extinguishers: Halon (2), foam (1), ABC BII (4), CO2 BII (2)

• Fixed Fire: 4-bottle CO2 system (engine room)

• General Alarm System: wheelhouse activator + engine room sensor

• High Water Alarms: engine room + lazarette

• Fire Hydrant/Hose: 1 hydrant + 50' of 1-1/2" hose

• Defibrillator: Phillips

• Emergency Lighting: dual-lite fixtures

• First Aid Kits: 3

Underwater Gear (Dimensions Listed)

• Propeller: Stainless 4-blade RH -- 78" x 63"

• Rudder: Steel palmed rudder -- 90" x 47" (9" leading edge)
