• Polyester and high quality anti-osmotic resin
• Hull and deck and coach roof laminated by infusion
• Balsa core hull, white gel coat
• Balsa core bridge deck and deck
• Laminated or glued plywood bulkheads

Hardware

• 1 Harken Power winch 46.2 STA
• 1 Harken manual winches 46.2 STA
• Mainsail track with ball-bearing cars
• Self-tacking jib track
• Anodized aluminum crossbeam with fixing point for the self-tacking jib furler, anchor roller
• Navigation lights on the forward decks and at the back of the coachroof

TRANSOM

• Hot/cold deck shower on starboard
• S/S telescopic swim ladder with fixed handle on starboard
• Small storage on the sides of the transom

AFT COCKPIT

• Cockpit usable as a deck saloon, protected by a hard top bimini
• L-shaped bench with 1 storage locker and 10 kg / 22 lb gas bottle under the seat
• Removable polyester cockpit table 6/8 people (1400x820mm / 4?7?x2?8?)
• Storage locker on portside (cockpit fridge or ice maker option)
• Lounger on port side with storage locker
• Polyester fiddle anti-runoff on the sides of the cockpit
• Access to the engine compartments through hatches with gas struts
• Aft crossbeam with stainless steel backrest

HELM STATION?

• Composite staircases to access from the cockpit
• Double stainless steel cushioned helm seat
• Leather covered stainless steel steering wheel diam. 800mm / 31in
• Console for screen and instrumentation
• Engine throttles (2) and panel(s) 2
• Cup holder
• Sheets bag on the starboard side of the helm station
• Winch handle holder
• Access to coachroof via a staircase with teak steps and s/s structure + handrail with sliding window on hardtop bimini

FORWARD COCKPIT?

• Large hatch on starboard with gas s/s struts and locker for the access to the fresh water tank
• Locker on portside with gas s/s struts (300L / 79 US gal) additional fresh water tank or generator option)
• Trampoline (nylon)

BOW LOCKERS

• Access through opening deck hatches with locker (T60 - 507x507mm / 1?8?x1?8??)
• Lighting

STANCHIONS AND LIFE LINES?

• Pushpits with flag support
• Stanchions: H 610mm / 24in ? Double lifelines

On starboard:?

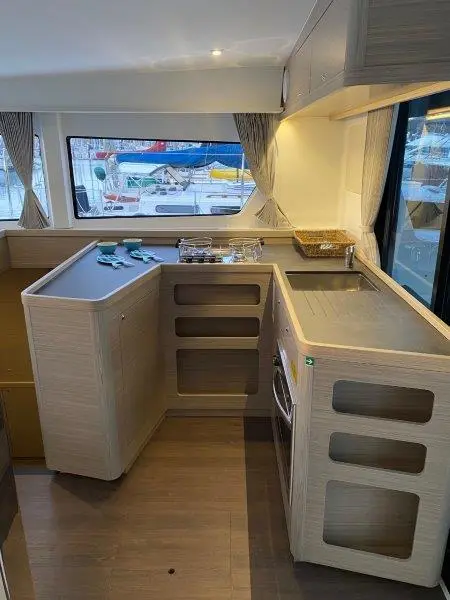

• U-shaped galley
• Laminated Volcanic Ash with molded wood countertop
• S/S sink with hot/cold mixer tap
• 1 door with a 25L / 7 US gal waste bin under the sink
• 1 cutlery drawer under the countertop
• 1 gas oven under the countertop
• 3 burner gas stove
• Storage niches under the stove
• Low storage cupboards with shelves, access from the saloon
• Open storage next to the entrance
• High storage cupboards?

On portside:?

• Low cupboard with:
  • Open storage
  • Fridge 130L / 34 US gal
  • Freezer with top access 100L / 26 US gal?
  • High storage cupboards

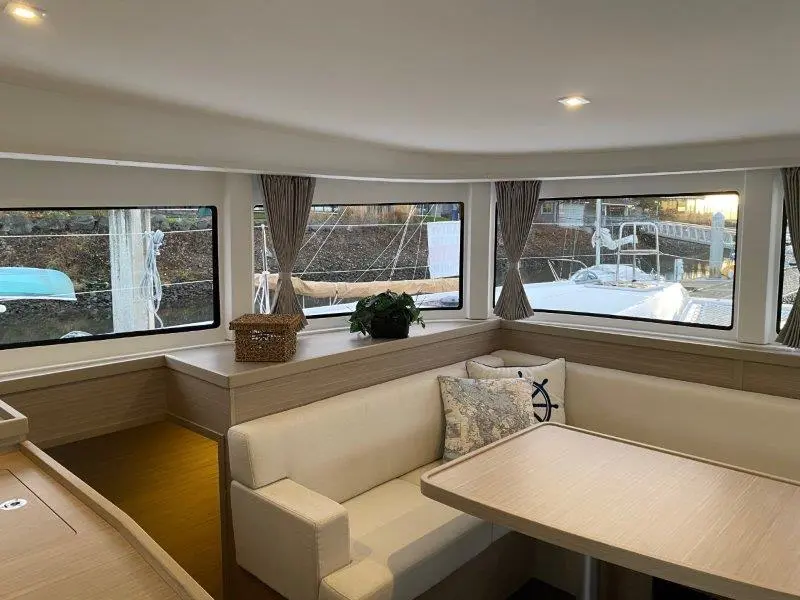

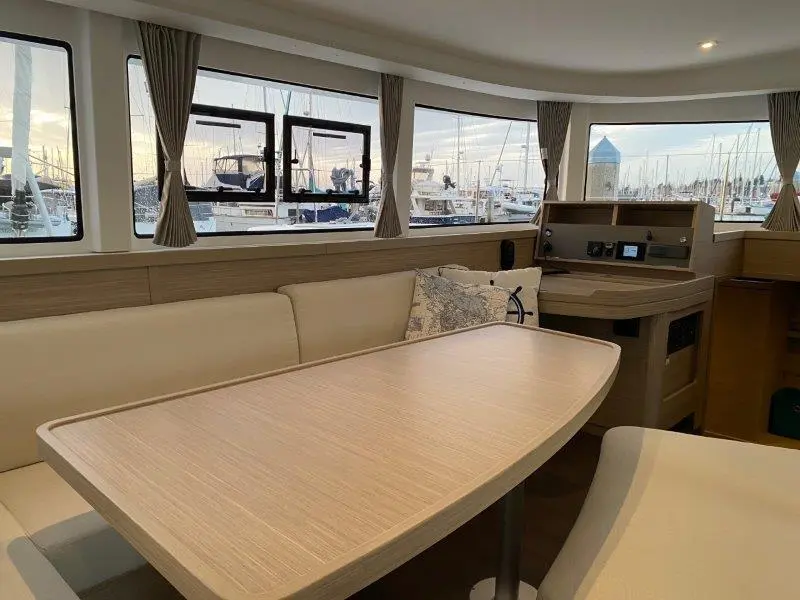

SALOON

Living area with

• Sliding windows in aluminum, 3 sections, with locker for the access to the cockpit (2250 x 1900mm / 7?5?x 6?3?), blocking in different positions
• Wooden saloon table
• Convertible berth in Salon?
• 6 seats L-shaped bench on front starboard
• 1 fixed bench 2 seats in front of the L-shaped seating area
• 3 lockers under the bench
• Stainless steel mast support strut
• 2 opening portholes in the front window (482x342mm / 1?7?x1?1?)

CHART TABLE

• Large instrument console with panel to install the electronics that can be built in (finishing with soft touch paint color Titanium)
• 1 desk with 1 flap and 3 pencil holders
• Electric panel in the starboard companionway

PORT HULL?

Aft Guest cabin

• Double bed with front and lateral access (2,05m x 1,80m / 6?9?x5?11?)
• 2 bed nightstands
• 1 under bed drawer
• 1 wardrobe ? inboard side
• 1 storage cupboard - inboard side
• 1 opening deck hatch with dorade box (T44 - 442x442mm / 1?5?x1?5?)
• 1 opening hull porthole (T30 - 347x171mm / 1?2?x 7in)
• 1 fixed hull window in black PMMA (1200 x 420mm / 3?11?x1?5?)
• 1 fixed hull window in black PMMA overlooking the back (230 x 1400mm / 9inx4?7?)
• 1 opening hull porthole overlooking the back above the fixed window (347x171mm / 1?2?x 7?) (essential equipment)

Aft Head

• Composite countertop
• Sink with hot/cold mixer tap
• High storage: 1 shelve, 1 mirror, 2 niches
• Low storage: 1 door, 2 shelves
• Separate shower with Plexiglas door
• Manual toilet
• 1 opening deck hatch with dorade box (T10 - 260x260mm / 10in x 10in)

Forward Guest cabin

• Double bed with front and lateral access (2.00m x 1.20m x 1.30m at foot / 6?7?x3?11?x4?3?)
• 1 under bed drawer
• 1 wardrobe ? inboard side
• 1 storage niche with 1 shelf ? inboard side
• 1 opening deck hatch with dorade box (T44 - 442x442mm / 1?5?x1?5?)
• 1 opening hull porthole (T30 - 347x171mm / 1?2?x 7in)
• 1 fixed hull window in black PMMA (1200 x 420mm / 3?11?x1?5?)

?

Forward Head

• Composite countertop
• Sink with hot/cold mixer tap
• High storage: 1 mirror, 2 niches
• Low storage: 1 door, 2 shelves
• Integrated shower
• Manual toilet
• 1 opening deck hatch with dorade box (T10 - 260x260mm / 10in x 10in)

STARBOARD HULL

Owner Suite

• Access from the saloon down gradual steps with sliding privacy door

Sleeping area

• Double bed with front and lateral access (2,05m x 1,80m / 6?9?x5?11?)
• 2 bed nightstands
• 1 under bed drawer
• 1 opening deck hatch with dorade box (T44 - 442x442mm / 1?5?x1?5?)
• 1 opening hull porthole (T30 - 347x171mm / 1?2?x 7?)
• 1 fixed hull window in black PMMA (1200 x 420mm / 3?11?x1?5?)
• 1 fixed hull window in black PMMA overlooking the back (230 x 1400mm / 9inx4?7?)
• 1 opening hull porthole overlooking the back above the fixe window (347x171mm / 1?2?x 7?) (essential equipment)

Working area

• 1 cupboard with shelve behind the door ? inboard side
• 1 wardrobe in front of the door ? inboard side
• Storage module with 4 drawers and 3 opening lockers in lieu of sofa ? outboard side
• 1 desk with flap ? outboard side
• Bookshelves ? outboard side
• 1 large storage with: - Wardrobe in the upper part (washing machine option) - Cupboard with shelves in the lower part
• 2 opening deck hatches with dorade box (T10 - 260x260mm / 10in x 10in)

Owner Head

• Composite countertop
• Sink with hot/cold mixer tap
• High storage: 1 shelf, 1 mirror, 4 niches above the sink
• High storage: 1 door with shelves above the sink
• Low storage: 3 doors with shelves outboard side
• Manual toilet
• Large Separate shower with Plexiglas door (forward in head /hull)
• 1 opening deck hatch with dorade box (T44 - 442x442mm / 1?5?x1?5?)
• 1 opening hull porthole (T30 - 347x171mm / 1?2?x 7?)
• 1 fixed hull window in black PMMA (1200 x 420mm / 3?11?x1?5?)

SAILS

• Fully Battened Square-Top Dacron Mainsail
• Lazy Bag with Battens and Lazy Jacks - color = Graphite
• Self-tacking jib in Dacron with UV cover
• Furler with furling line led to helm for Jib.

STANDING RIGGING?

• Anodized aluminum mast with mainsail ball bearing track system
• 1 level of spreaders
• Anodized aluminum boom
• 2 encased shrouds
• 2 shroud chainplates
• 2 forestay chainplates
• Deck light on the mast

RUNNING RIGGING

• 1 double purchase Spectra mainsail halyard
• 1 Spectra self-tacking jib halyard
• 1 pre-stretched mainsail sheet
• 1 pre-stretched self-tacking jib sheet
• 3 reefing lines (1st Dyneema)
• 1 pre-stretched self-tacking jib furling line
• 2 pre-stretched mainsail traveler car control lines

• Composite longitudinal crossbeam with integrated chain run and mooring cleat
• 8 mooring cleats
• Anchor Package - Delta Fast Set with Chain & Rode
• 1000W / 12V electrical windlass with vertical axis, gypsy (chain 10mm)
• Access to windlass and to anchor locker

• 2 x YANMAR 4JH57 57hp common rail saildrive
• Two fix-blade propeller
• Raw water filter
• Mechanical engine throttles at the helm station
• Engine compartment ventilation : electrical extraction in the aft transom
• Access to the engine compartments from the transom through hatches

Fuel circuit:

• 2 x rotomolded 300L / 79 US gal tank?
• Fuel filter systems
• Fuel shut off valve
• Gauge at the general control panel on touch screen

Electrical POWER CIRCUIT

• DC ? 12V
• 2 alternators 12V - 125A
• 2 start batteries 12V - 110A
• 4 service batteries 12V - 140Ah (AGM) Battery circuit breaker in the engine compartments (just below the hatches)

ELECTRIC DISTRIBUTION PANEL

• 12V General distribution panel at the chart table with protection by circuit breaker
• Amp meter, voltmeter, circuit breaker, panel lighting
• USB sockets
• 12V included in the electrical panel

LIGHTING?

• Recessed 12V LED spotlights in ceiling
• 12V LED reading light next to bunks
• 12V LED chart table light
• 2V lighting in engine compartment
• LED navigation lights

A sleek, modern design.

This new member of the Lagoon family has style and a strong personality.
While keeping a family resemblance and retaining the main features of the latest generation of Lagoons, it shows us a new path: unhurried evolution, a new "organic" approach, in search of harmony between living space and man.
An elegant silhouette, flowing curves which, by virtue of a noticeable acceleration of the lines in the bows and in the new coachroof design, emphasise the powerful and dynamic nature of this new model? A VPLP design naturally, a guarantee of performance under sail!

On deck:
An ingenious deck layout: The mast moved further aft and the self-tacking jib, a guarantee of performance under sail and ease of handling, provide the ability to bring all operations together in one place.

An ergonomic helming station at the coachroof bulkhead, offering many advantages:
direct communication between the cockpit and saloon,
improved circulation, forward and aft of the helming station,
direct access to the coachroof for easier access to the boom,
a composite bimini with a sliding panel to ensure a good view of the sails,
a closure panel for helming station safety when under way.

A cosy cockpit, with smooth, elegant curves:
a single level from the aft platform to the saloon: a structural "revolution",
entirely new ergonomics that ensure excellent use of space and ease of circulation on board,
a large glazed door that occupies the entire width of the coachroof, and provides access to the unparalleled internal volumes.
The suspended steps at the transom provide a whole new perception of the boat: a continuous, wide and inviting platform, worthy of a large vessel.
