The X4.9 is arguably the best 50-foot yacht currently on the market, This particular X4.9 was designed with many custom additions for long-distance voyages.

Featuring Spectra carbon sails that roll into the boom, a steel hull, and luxurious, meticulously crafted interiors. It includes all the characteristics that make X-YACHTS some of the best sailboats in the world.

FULL BOAT SPECIFICATIONS:​

X49 MKI Standard version (A1B1C1) - 3 cabins 2 heads. Galley with white Corian worktop, fixed forward facing nav table station, large dining table and with Nordic Oak veneer throughout the yacht. According to the specification of August 2023

HULL - X-Yachts hulls are built using the latest high tech construction technologies with a vacuum-infused, post-cured (Oven baked @ 70°C) EPOXY construction and gelcoat finish

KEEL STRUCTURE - Heat galvanized steel keel frame improves strength, enables central lift hoist attachment & safety

• Hull Colour - 'Pure White' (RAL 9010) & 3 x 'Dark Blue' integrated GELCOAT Water Lines' (RAL 5011)

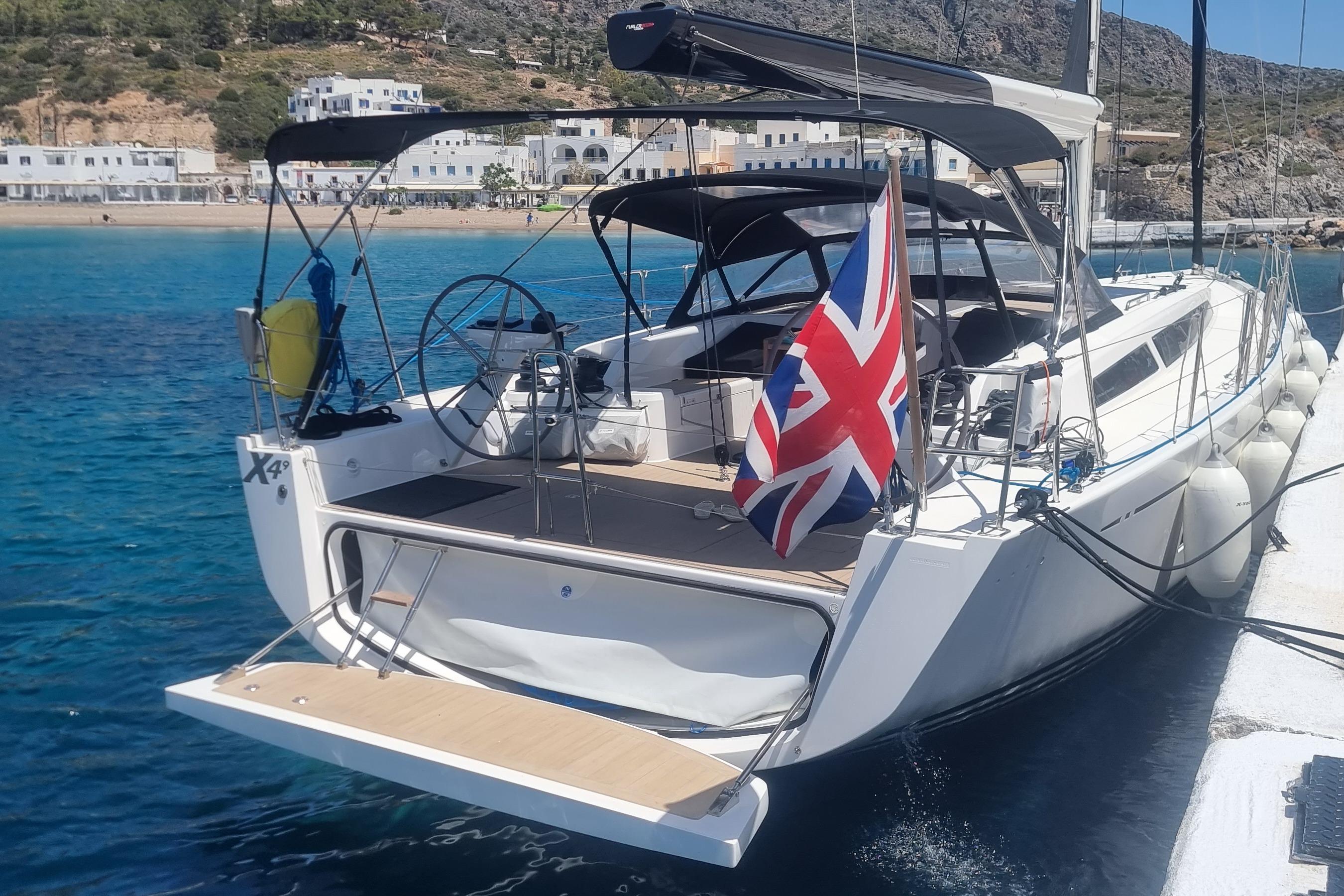

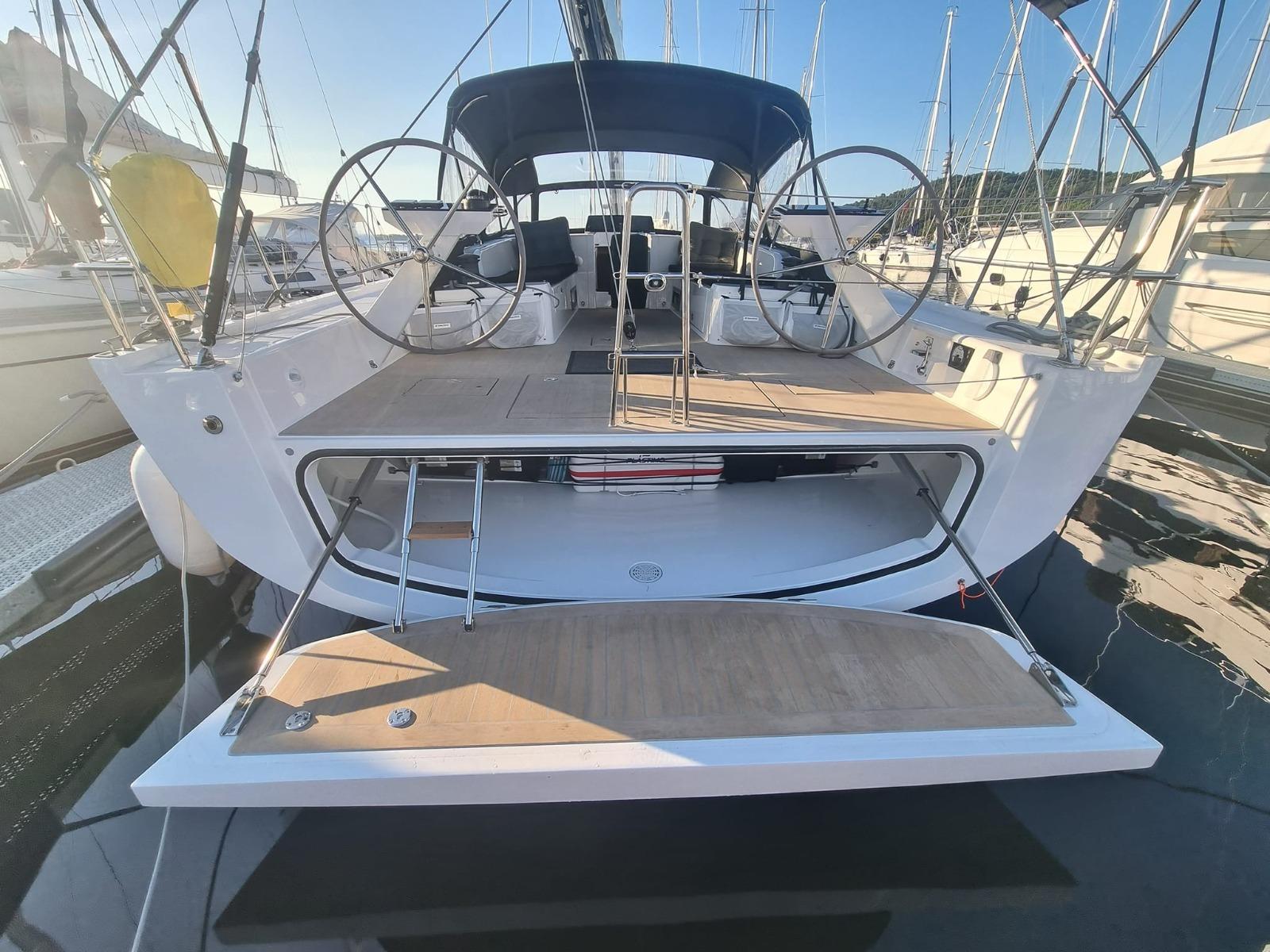

• Transom door/Bathing platform - The platform is operated electrically with two actuators, integrated attachment for "hang on" bathing ladder with teak steps and an automatic pull out ladder with teak steps to access the opened platform. If choosing Flexiteek instead of teak, remember to select Flexiteek on bathing platform
• Large Hull Portlights (190x190 mm) in grey tinted laminated toughened glass (6 in total)
• Dinghy GRP floor in lazarette - with inspection hatches for lower rudder bearing
• Hull Treatment - 3 x layers of sprayed epoxy primer & 2 x layers Copper coat

DECK:

• Flexiteek on cockpit floor and seats
• Flexiteek on Bathing platform
• Removable cockpit table - with two hinged leaves, resting on two stainless steel rectangular legs, with central bottle box in GRP, securely bolted with 8 bolts to cockpit floor and removable teak foot chock below the table
• Cockpit Cushions in black color

SAIL HANDLING:

• Self Tacking track recessed - into the coach roof, curved 42 mm track and Toulon ball bearing traveller, single sheet led aft via the mast to cockpit winch (one side).
• Primary Winches (Outermost winches) - 2 x Harken Performa 50.2 STP two-speed self-tailing winches, in cockpit near helm position
• Secondary Winches (Innermost winches) - 2 x Harken Performa 50.2 STP two-speed self-tailing winches, in cockpit near helm position
• Electric Winch - Primary 1 x Harken Performa 50.2 STP Electric two-speed self-tailing winch - PORT - up price
• Electric Winch - Primary 1 x Harken Performa 50.2 STP Electric two-speed self-tailing winch - STARBOARD - up price Note: It is recommended when choosing the furling boom to have both STARBOARD winches electrical!
• Longitudinal Genoa sheet tracks - on coach roof top, with adjustable plunger stop cars incl 1 set of genoa sheets, in addition to standard deck recessed self-tacking track. Shorter than standard handrails will be installed. Outboard sheeting pad eyes mounted
• HATCHES / PORT LIGHTS / VENTILATION / SPRAYHOOD
• Flush Deck Hatches - 12 pcs: GRP hatch above anchor locker, sail compartment, gas locker and dinghy garage plus 8 pcs frameless hatches - see deck layout for details
• Port lights - 8 x openable coach roof port lights: 2 x openable coach roof port lights per side on outside coach roof for added ventilation in main cabin and in aft head, 2 for each aft cabin facing cockpit and 2 integrated in outside coaming stripe of glass, for added ventilation and light
• Rigid Sprayhood Cover - Self draining recessed deck storage for optional sprayhood to be stored in the deck with rigid moulded GRP cover with stainless steel hinges and lock fittings

GUARD RAILS / ANCHOR EQUIPMENT / STAINLESS STEEL FITTINGS

• Electric Anchor Windlass - 1500 with 75 m of 10 mm calibrated galvanised anchor chain
• Anchor - 25 kg Delta galvanised anchor
• Mooring Cleats Amidships - 2 x Stainless steel cleats mounted amidships
• Boarding Gates in Guardrails - for standard lifelines on both sides with champfer rails on bulwalk (3 per side)
• Bow Boarding Ladder - Stainless steel with rail for safer boarding
• Pad Eyes - In addition to the standard 4 foldable Wichard pad eyes in cockpit, a pack of 4 (2 each side) additional Wichard 6 mm foldable Padeye for safety lines bow and stern - see deck layout

MAST & RIGGING:

• Fractional tripple spreader rig
• Tapered silver anodised mast
• Discontinued rod rig with turnbuckle
• Stainless Steel headstay chainplate
• Stainless Steel bulwark recessed chainplates for shrouds
• Permanent backstay with integral hydraulic adjuster
• LED Steaming Light combined with LED deck flood light
• LED Tricolour & Anchor Light fitted at mast head
• Mast Steps - 2 x Mast steps fitted to Aluminium mast
• V- Furling Boom - 'Furler Boom - T20' infusion moulded monocoque glasfibre with carbon mandrel included. Spring loaded vang, boom lift/pasarella halyard, painted in grey to suit colour of standard anodised mast. NOTE: Electrical winches PORT side for furling boom operation is strongly recommended - up price compared to standard alumnium boom
• Integrated boom cover for V- Furling Boom - T20 with black canvas
• Cockpit boom LED light for Furlerboom - "Casolux Max" white & Red. 2 W
• Mast Track for In Boom furling - Mounting of 'Furler Boom' mast track for In boom furling System
• STANDING RIGGING:
• Furling headstay - Furlex 400 TD with an under deck drum. Furling line led back to cockpit for easy handling
• Rod rigging - discontinuous with tip cups incl. racing Rod turnbuckels for V1's and D1's
• Preparation for inner forestay with chain plate with tack point on deck, stainless steel stay tang attachment on mast, sheave box. Note: No spectra halyard, jammer, mast base block or forestay included.

RUNNING RIGGING:

• Halyards in Dyneema SK78 - much reduced stretch less than polyester halyards
• 2 x Halyard bags - Positioned in front of each steering pedestal
• KEEL
• Standard Keel - 2.40m 'T' keel consists of antimony hardened lead T-bulb bolted and glued to cast iron fin for high strength, low centre of gravity for comfortable sailing performance. The Keel is totally encapsulated in three layers of CSM E-glass with epoxy for protection, perfecting the shape. The keel is securely bolted to the structural steel keel floor grid. The lead bulb weighs minimum 3000 kg increasing stability (1 degree heel) improving comfort, performance and safety.

RUDDER & STEERING:

• Compass Top - 2 x Compass, Silva 85E, mounted on top of each wheel pedestal with grab rail
• Painted pedestals in hull colour (see options under hull) incl medium or large mount

INTERIOR:

• Nordic Oak veneer - all wooden surfaces (excluding companionway steps)
• Lmitated Teak with gaboon inlay stripes floorboards- instead of standard imitated teak

OWNER'S CABIN:

• Double berth - with hinged gas strut supported top access and drawers underneath. Shelves next to berth and accessory shelf on headboard.
• Owner's cabin upper cupboards - Upper cupboards with bottom hindged doors fitted on freeboads above the berth

MAIN CABIN:

• Long sofa - Long sofa situated in starboard side with longitudinal backrest
• U-Sofa - Large U-sofa for 6 people in portside with longitudinal backrest
• Main cabin dining table - table without table/drinks box below. Has top surface of wooden veneer with longitudinally grain direction
• Main cabin upper cupboards - Upper cupboards with bottom hinged doors fitted on freeboards
• Laminated Handrails - handrails in laminated oak or teak, respectively, with stainless steel spacers inside the coachroof in each side
• Backrest cushions - backrest cushions along the main bulkhead and galley front of the U-sofa
• Double Pouf - with storage, gas spring supported seat fixed to floorboards in two positions
• NAV STATION
• Navigation Station - with electronic equipment in a longitudinal compartment. It can fit a music radio, 9 inch plotter, VHF, heater control, etc.

ELECTRONICS:

• VHF Ray90 base station (internat.) w. loudspeaker, at nav station or cockpit
• AIS700 Transceiver for Axiom series plotter incl. filter
• Shakespear VHF antenna for VHF & FM, cable Aircell7, Pom mast isolation mounted in mast head
• Second station plotter : 1 x Axiom2 12"PRO-S Hybrid touch plotter
• GALLEY:
• Coolbox - 90 litre toploaded Insulated & watercooled Danfoss / Secom compressor & Isotherm accumulator plate with ASU start-up technology
• ENO 3 Burner Oven & Grill - ENO, gimballed 3 burner hob, oven & grill
• Black Corian - Black Corian worktops in galley
• Corian removable worktop over oven for additional worktop surface - colour white or black matching galley worktops
• Fridge Front Opening - 85 litre with ice cube compartment, front opened with ASU start-up technology, positioned under sink
• Microwave - Stainless Steel front fitted in galley. (only 230V). Note: Runs on shore power, inverter or Generator power.
• Nespresso Citiz - incl. sliding shelf integrated in cupboard

HEADS & SHOWER COMPARTMENT:

• Tecma Electric Toilet - 12V electric, Tecma Elegance Short replacing standard manual toilet (Freshwater flush)
• AFT CABINS
• Double berth (C1) - with a shelf on the freeboard above the berth
• Sea Berths - Freeboard hung sea berths (both aft cabins in version C1)
• CUSHIONS & BLINDS
• Blinds for owners -
  Ocean Air Skyscreen Blinds including flyscreen and blackout blinds for small skylights;
  Ocean Air Skyscreen Blinds - blackout blinds for main double skylight;
  Forward facing coachroof portlight and hull portlights fitted with blackout blinds;
• Blinds for main cabin and aft cabins -
  Ocean Air Skyscreen Blinds including flyscreen and blackout blinds for small skylights in aft cabins;
  Hull portlights, portlight in cockpit coaming and portlight facing cockpit in aft cabins are fitted with push button blinds;
• Leather or Alcantara© (mircro fibre) in main cabin
• Ocean Air curtains main cabin -
  Coachroof soft vinyl panelling, including Ocean Air Skysol pleaded curtains
  Ocean Air Skysol pleaded curtains for hull portlights
  Ocean Air Skyscreen Blackout and flyscreen for double hatch
• PLUMBING & HEATING
• Pressurised hot & cold water system - with fresh water tank, 310 litres located below the floorboards in main cabin, 24 litre hotwater tank located in engine compartment
  Deck Shower located in aft cockpit
• Holding Tanks - 55 litre, Polyethylene holding tank per toilet (2 in total) . Emptying by sea cock or deck suction
• Extra fresh water tank - 90 litre stainless steel tank under the main cabin floorboards.
• Manual Backup Fresh Water Pump - for freshwater in galley. In addition to the std. pressurized freshwater system
• Manual Bilge Pump - An Additional manual bilge pump mounted inside aft cabin with long hose - 1 pcs
• Seawater Tap - with electric pump fitted in galley to reduce fresh water consumption
• Heating system - Eberspächer Airtronic 3 D6L with 6 outlets in main cabin (2), owner's cabin (1), fwd head (1) and both aft cabins (2)
• Watermaker - Dessalator, 60 l/hr - DUO 12/230V, fitted under aft cabin berth connected to freshwater tank
• Aircon system - Climma with outlets in main cabin, owners and/or aft cabin: Note: The aircon unit is designed to cool down each cabin by a maximum temperature difference of 15°C. Under extreme conditions the temperature differential can be less. Aircon system can heat cabin limited from 8° C water temperature
• Washing Machine - Type Baby Nova 1000, mounted in compartment behind the engine compartment. Access from starboard aft cabin
• ELECTRICAL INSTALLATIONS
• Shore Power Installation - 50A Battery charger & 424Ah 12V battery bank. Separate engine start battery
• LED Interior Lighting - LED lighting throughout the yacht
• Socket package, 230V AC & 12V USB & 12V outside socket: 230V- mounted one in galley, one in each cabin and one in each head & USB Double socket - mounted in each cabin and at nav station & 12V outside - in cockpit near helm station

ENTERTAINMENT

• Fusion Multi Media Centre - Fusion Apollo MS-RA770 AM/FM/VHF/Apple Airplay/Iphone/Ipod/USB/SiriusXM-Ready (USA only) fitted in main cabin near navigation station. One set of Fusion 4" 2 way 120 Watt black loudspeakers (2 pcs) mounted in main cabin
• Cockpit Speakers - Fusion Cockpit loudspeakers fitted in cockpit connected to multimedia system (2 pcs)
• Flat Screen TV - 32" LED Flat Screen TV fitted on main bulkhead in main cabin with antenna mounted in mast incl. fitting and antenna cable, 220V socket, DVB-T and installation, mounting bracket for wall mounting. TV connected to Multimedia system (Note: 220V)

ENGINE & TANKS

• Fuel tank - aluminium 265 litres, centrally located under main cabin floorboards to keep weight centered around the keel for best sailing performance
• Main engine upgrade - Yanmar 80 HP CR ( 59 kW) with 3 Blade folding propeller replacing Yanmar 57 HP CR engine
• Retractable bow Thruster
• Max Powe
• NMEA engine interface

SAILS

• North Furling mainsail for furling boom, Spectra Carbon, with 5 full battens, 2 reefs, class mark, 73 m2
• North Sails Selftacking Furling Jib 88% - Spectra Carbon, with painted UV leech protection (painted), foam furling pad and 4 vertical battens, 45 m², stanchion patches, standard measurement

Custom options

• Black canvas
• Painted mast
• Flexiteek under the sprayhood
• Wardrobe in PS owners cabin
• Safe mounted in owners cabin (small version safe with space for passport etc)
• Mirror on owners door
• Special custom option: Superpack 4x100Ah LiPO4 Battaries
• Additional P70s autopilot display mounted in pedestal
• Solar pack (4x115W) Flexiball on deck
• Remote for transom
• Additional control buttons for primary winches, mounted in pedestals (4 buttons in each pedestal) - without engraving
• Main sump pump alarm with light and sound in cockpit (on/off in chart table el panel)
