HULL

• NPG Isophthalic gelcoat

• Modified epoxy vinylester laminating resin

• Partially cored with CNC computer cut closed-cell synthetic foam coring

• Locally reinforced in high-load areas

• Laminated in "one shot" resin infusion process eliminating secondary bonding of structural

materials

• All hull penetrations made through solid E-glass laminate "core windows"

• Interior surfaces painted out for aesthetics

• Internal structural grid designed to carry rig and keel loads, bonded and glass-taped into hull

• UL and ABS approved, corrosion free Marelon flush through hull fittings

• (3) Fixed deadlights

• Built to meet ABS Plan Certification

• Transferrable 10-year hull structural and blister warranty

DECK

• NPG Isophthalic gelcoat

• Modified epoxy vinylester laminating resin

• CNC computer cut sealed premium coring

• Locally reinforced in high-load areas

• Laminated in "one shot" resin infusion process eliminating secondary bonding of structural

materials

• All deck penetrations made through solid E-glass laminate "core windows"

• Interior surfaces painted out for aesthetics

• Molded nonskid surface on working areas

• 6061 T6 aluminum backing plates added at lamination for all loaded hardware

• Inward-facing hull flange with integrally molded 6061 T6 aluminum bar forming a full length

backing plate for hull-to-deck joint

• Hull-to-deck joint fasteners, stainless steel and meet or exceed ABS standard for offshore use

• Hull-to-deck joint bonded with 3M 5200 adhesive sealant

RUDDER & STEERING SYSTEM

• Twin wheel pedestal style chain and wire rope steering system

• Carbon fiber twin pedestals

• (2) 36" stainless steel wheels

• Stainless steel pedestal guard

• Single-lever engine control with stainless steel handle

• Lighted binnacle compass on each pedestal

• High density, closed-cell foam rudder blade with reinforced skins

• Tapered carbon fiber rudder post

• High density, low friction rudder bearings

• Bronze rudder stuffing box

• Emergency tiller

DECK HARDWARE

• (2) Harken 35 STC Radial (self-tailing chrome) cabin top winches

• (2) Harken 46 STC Radial (self-tailing chrome) cockpit winches

• Harken self-tacking jib traveler

• 24" x 1" diameter stainless steel stanchions

• 24" x 1" tube double stainless steel bow rail with navigation light

• 24" x 1" tube double stainless steel split stern rail with navigation light

• 1 x 19 double lifelines with port, starboard, and transom boarding gates

• Stainless steel stem fitting with integral bow roller

• Stainless steel 10" bow mooring cleats

• Stainless steel 8" mid-ship mooring cleats

• Stainless steel mid-ship chocks

• Stainless steel 10" aft mooring cleats

• Aluminum toe rail standard, teak toe rail optional

• (2) Harken aluminum winch handles

• Custom stainless steel mast collar with attachment points for mast-base blocks

• Harken turning blocks at base of mast for leading sail controls aft to cockpit

• Spinlock rope clutches on cabin top for aft led sail controls

• Mainsheet led aft to house top winches

• Self-tacking jib sheet led to house top winch

• Reacher sheet blocks

• Traveler taglines led to cabin top cam cleats

• Harken aft lead control blocks

• Companionway hatch sea hood with instrument pod

• Match molded anchor locker lid with latch

• Deck drains to waterline discharge, eliminates hull streaking

• Stainless steel cabin top handrails

• Cockpit mounted manual bilge pump

• Offshore ready, match-molded and gasketed cockpit seat hatches

VENTILATION

• (3) Aluminum CE approved deck hatches

• (10) Cabin-side mounted stainless steel portholes with fly screens

• Cockpit-mounted stainless steel porthole with fly screen

• (2) polished chrome 4" cowl vents on composite Dorade boxes

• Lexan sliding companionway hatch with composite hatch boards and trim

ENGINE & MECHANICAL

• 30 hp diesel saildrive with two-blade fixed propeller

• 35-gallon fuel capacity in aluminum tank with remote gauge

• Fuel filter/water separator

• High density, foil faced engine insulation

• Engine service access forward, sides, and aft

ELECTRICAL

• (2) AGM Group 31 batteries

• 30A battery charger

• Polished chrome and stainless steel interior lighting fixtures with LED lights

• Courtesy floor lighting

• Service lighting in engine compartment and cockpit lockers

• Directional reading lights at berths and main cabin settees

• Directional spot lights in galley and over main cabin table

• 110 VAC ELCI protection

• Shore power cord

• 110 VAC distribution panel

• 110 VAC outlets in each cabin with GFI protection

• 12 VDC metered distribution panel with 12VDC USB outlet

• Battery selector switch

• ABYC compliant color coded wiring throughout

• Stranded, tinned, copper wiring

• All wiring is chafe-protected where it passes through internal structure

• Wiring bundled in PVC conduit with room for future installations

• Electrical bonding system

• Electric sump pump with automatic float switch for icebox and shower drains

• Electric bilge pump with automatic float switch with manual override

• High-water bilge alarm

• USCG approved navigation lights on bow rail, stern rail, and mast

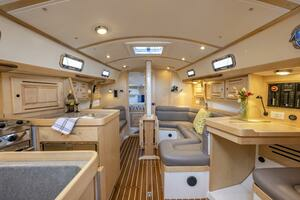

INTERIOR

• Structural fiberglass timbers taped to hull to carry mast and keel loads

• Structural bulkheads bonded to hull and deck

• Choice of maple or cherry hardwood interior buildout

• Solid stock hardwood trim throughout

• Solid stock hardwood raised panel passage doors

• Polished chrome, mortised door lock sets

• Solid stock hardwood cabinet faces throughout

• Positive lock polished chrome cabinet hardware

• Solid hardwood-faced, dovetail joined, all-wood drawers throughout

• Hardwood-battened overhead with strategically placed access panels

• Varnished teak handrails placed for security in a seaway

• Interior woodwork sprayed with satin finish, solvent and UV resistant two part conversion

varnish

• Varnished teak and holly cabin sole with bilge access lift outs

• Selection of designer fabrics available for interior upholstery

ACCOMMODATIONS & STORAGE

• Forward cabin with storage lockers, hanging locker, and dovetail drawers

• Approximately 78" x 60" forward berth

• Furniture-grade main cabin settees and seats with contoured cushions

• Maple or cherry cabinets with ventilated raised panel doors throughout

• Storage outboard of main cabin seat backs

• Main cabin table folds up to mast for exceptional available floor space

• Full navigation station

• Navigation lockers with installation space for extensive electronics

• Aft cabin with a double berth, hanging locker, and shelves

• Storage below berths

• Cockpit seat locker

• Cockpit lazarette to starboard

• LPG gas bottle storage in cockpit for 11-lb tank

GALLEY & PLUMBING

• Two-burner Force 10 gimbaled stove with oven

• LPG sniffer with automatic shut off

• Maple or cherry-faced cabinetry with raised panel access doors

• Maple or cherry-faced, dovetailed cutlery drawers

• 9" deep, stainless steel, single sink with marine grade galley faucet and manual foot pump with

swivel spigot

• Granicoat solid surface galley countertops

• Storage under galley sink through ventilated raised panel Maple or cherry doors

• Built in 12VDC refrigeration

• Hot and cold pressure water with service access to pump and plumbing

• Polyethylene tubing and Whale mechanical fittings for freshwater plumbing

• All below waterline hose connections are double-clamped with stainless steel hose clamps

• Premium marine-grade hoses used throughout

• 60 gallons of freshwater tankage with distribution manifold

• 6-gallon water heater, operates on 110 VAC or engine heat exchanger

HEAD

• Manual marine head with 30-gallon holding tank

• Deck pump out with vent

• Low-odor premium grade marine sanitation hose

• Holding tank gauge

• Shower drains to sump box with automatic overboard discharge

• Premium, marine-grade head faucet and shower mixer

• Molded Granicoat solid surface counter top

• Stainless steel sink

• Utility storage under sink through raised panel maple or cherry door

• Solid maple or cherry-faced upper vanity cabinet with storage

SPARS & RIGGING

MAST

• AMP Spars, painted carbon-fiber mast with integrally molded carbon-fiber masthead

• Double, tapered airfoil aluminum spreaders with machined through bars

• Low friction mainsail track

• 1 x 19 Stainless steel wire rigging with forged turnbuckles

• Internal halyards

• Internal, single-line lazy jack system

• Furler for self-tacking jib

• Furler for masthead 155% reacher

• Mast-to-deck tie rod to carry running rigging loads

• Masthead anchor light

• Steaming light with foredeck illuminator

• Mast wiring conduit

• Custom stainless steel chain plate system links to structural fiberglass grid in hull

• Spartite mast sealing and chock system

• Molded mast boot

BOOM

• AMP Spars carbon-fiber traditional boom

• (2) Single line reef led aft to cabin-top winch

• 2:1 outhaul led aft to rope clutch and cabin top winch

• Two-part boom topping lift

• Rod vang with tackle led aft

RUNNING RIGGING

• Polyester double-braid jib sheet, mainsheet

• Polyester double-braid main traveler control lines

SAILS

• Fully-battened Dacron mainsail with (1) reef, Sunbrella mainsail cover

• Dacron self-tacking jib

• Light weight Dacron 155% (of larger reacher J dimension) masthead reacher
