Overview
The X4? is the second model in a new Pure X range, aimed at the discerning sailor and his crew. It utilizes advanced, proven technology and build techniques which only incorporate first class components, enabling the exploration of new uncharted horizons in comfort. Pure X models offer both excellent sailing capabilities and a modern spacious interior. These new 'X' models include innovative design features above and below deck, the latest build technologies and the use of exceptionally high quality materials. By introducing this range, X-Yachts continues sharing the passion for 'Superb Sailing Pleasure'.
The hull is made using vacuum infused epoxy sandwich lamination technology to ensure maximum strength and safety. The X4? offers sailors a substantial keel weight and sail plan making it a dream to sail into wind and waves. Eleven fixed hull and deck port lights and twelve openable deck hatches ensures maximum interior ventilation and light. Six well sized self-tailing winches for halyards, genoa and main sheet. All X-Yachts normal features including encapsulated lead keel, hydraulic backstay adjuster, discontinuous rod rigging and Spectra halyards are standard.
The X4? was conceived as true dual-purpose yacht. The guiding principle is that the X4? should be competitive when sailed with a full crew and also easily handled by a couple or family. It should be optimised for racing under major handicap rating systems, but equally suited to a relaxed weekend cruise or a longer blue-water passage. Key to this adaptability is the multi-functional bowsprit, which offers four variations. The carbon bowsprit in clearcoat black enables a full sail wardrobe of asymmetric spinnakers and reaching Code Zeros to be carried. The anchor fitting is neatly concealed under the sprit.?
Xiomara is fully equipped for extended cruising in the Pacific Northwest and far beyond. ?Features include:
- Code 0 and Asymmetric Spinnaker
- Oxxean Aluminum RIB w/ Torqeedo Outboard
- Lithium Battery Bank
- 2000W Inverter / Charger
- Iridium Sat Phone
- Star Link
- Liferaft
- Diesel Heater
Highlights
-
ManufacturerX-Yachts
-
ModelX4?
-
Year2019
-
LOA42 ft 5 in - 12.93 meter
-
Beam13 ft - 3.96 meter
-
Draft - max8 ft 2 in - 2.49 meter
-
Engine BrandYanmar
-
Engine Hours1057
-
Number of Rooms3
Basic Information
-
CategorySail
-
ConditionUsed
-
LocationNanaimo, BC, CA
-
Vessel NameXiomara
-
Boat TypeCruiser
-
Hull MaterialFiberglass
-
HIN:XYA43770I919
-
Flag of RegistryCA
-
Available for sale in U.S. watersYes
Dimensions & Weight
-
Length41 ft - 12.5 meter
-
LOA:42 ft 5 in - 12.93 meter
-
Beam:13 ft - 3.96 meter
-
Draft - max:8 ft 2 in - 2.49 meter
Engine
-
Make:Yanmar
-
Model:4JH45
-
Engine(s):1
-
Hours:1057
-
Engine Type:Inboard
-
Fuel Type:Diesel
-
Horsepower:45 (Individual), 45 (combined)
Tank Capacities
-
Fuel Tank:200 gallons - 1 tank(s)
-
Fresh Water Tank:340 gallons - 1 tank(s)
Accommodations
-
Total Cabins:3
-
Total Heads:2
Descriptions
General
- 3 cabins / 2 toilets
- Interior in Nordic oak veneer
- Flooring in laminate with teak imitation
- LED lighting throughout the boat
Saloon
- Long sofa to starboard with longitudinal backrest
- U-shaped sofa for four to port
- Folding dining table with wine cabinet and drawer in the center
- Overhead cabinets with downward-opening doors along the hull sides
- Stainless-steel handrails with spacers on the cabin roof
Owner?s Cabin (forepeak)
- Double berth with gas struts and drawers underneath
- Shelves and counter space at the headboard
- Mattress and topper
- Curtains/blinds for hull windows
Aft Cabins
- Overhead cabinets in both port and starboard aft cabins
- Roller blinds and mosquito nets for deck hatches
Galley
- White Corian countertops
- Refrigerated box 90 L (100 mm insulated, Danfoss Secop compressor + Isotherm accumulator plate)
- Isotherm Cruise 65 L refrigerator
- ENO 3-burner gimballed stove with oven and grill
- Stainless-steel handrails on cabin ceiling
Toilets / Plumbing
- Spectra Catalina 340C Watermaker
- 2 Marine Heads
- Pressurized freshwater with hot and cold water (340 L freshwater tank)
- Waste tank 55 L (polyethylene, deck or sea outlet)
- Shower on aft deck
- Ebersp?cher D5 diesel heater (4 outlets in saloon, owner?s cabin, aft cabin, and aft toilet)
Ventilation & Hatches
- Flush frameless deck hatches on foredeck, coachroof, and companionway
- Integrated self-draining sprayhood storage in deck
- Sprayhood in dark gray canvas with stainless-steel frame
- Ocean Air Skyscreen roller blinds (mosquito net + blackout) in cabins
Engine & Propulsion
- Yanmar 4JH45, 45 hp, diesel, common-rail engine
- 3-blade folding propeller (Flex-O-Fold)
- Aluminum fuel tank, 200 L (centrally located under starboard berth)
- Retractable bow thruster, Max Power
- Steel frame integrated into keel structure for extra safety
- 2.2 m T-keel (antimony-hardened lead bulb with iron fin)
- Keel fully encapsulated in epoxy for protection and strength
Deck Equipment
- Electric windlass with 50 m of 8 mm galvanized chain
- 20 kg Vulcan Anchor
- Stainless-steel stanchions with opening gates
- 2 ? midship cleats (stainless steel)
- 4 + 2 mooring cleats
- Removable clear-coated carbon bowsprit
- Guardrails with gates
- Teak in cockpit, on seats (9 mm vacuum-glued, black caulking)
- Pedestals with stainless-steel handrails and integrated Axiom displays
- Two black composite wheels (Carbonautica)
- Removable cockpit table
- LaFabrica Dodger
- LaFabrica Bimini over Helms
- Canvas Connector between Dodger and Bimini
- Aft shower (hot/cold)
- 8 X-Yacht fenders
Mast and Rigging
- John Mast fractional rig with double spreaders (silver anodized aluminum mast)
- Harken Switch Track for Mainsail
- Stainless-steel chainplates and forestay
- Harken hydraulic backstay tensioner
- Gas-sprung kicking strap (boom vang)
- LED deck and navigation light combo
- Below Deck Furlex Furling jib with control lines led to cockpit
- Discontinuous standing rigging in stainless rod wire with racing turnbuckles (V1/D1)
- Dyneema SK78 running rigging
- Additional foldable mast steps
Sail Handling
- 2 ? Harken Performa 50.2 STP genoa winches
- 2 ? Harken Performa 46.2 STP mainsheet winches
- 1 ? electric jib/halyard winch (Harken 46.2 STEPH) port, and 1 manual starboard ? total of 6 winches
- Sheet traveller with 4:1 purchase to cockpit
- Sailhandling Pack 1 for Asymmetric Spinnakers and Code 0
- 2:1 Code 0 Halyard
- Harken Reflex 2 Furler for Code 0
- Snuffer for Asymmetric Spinnaker

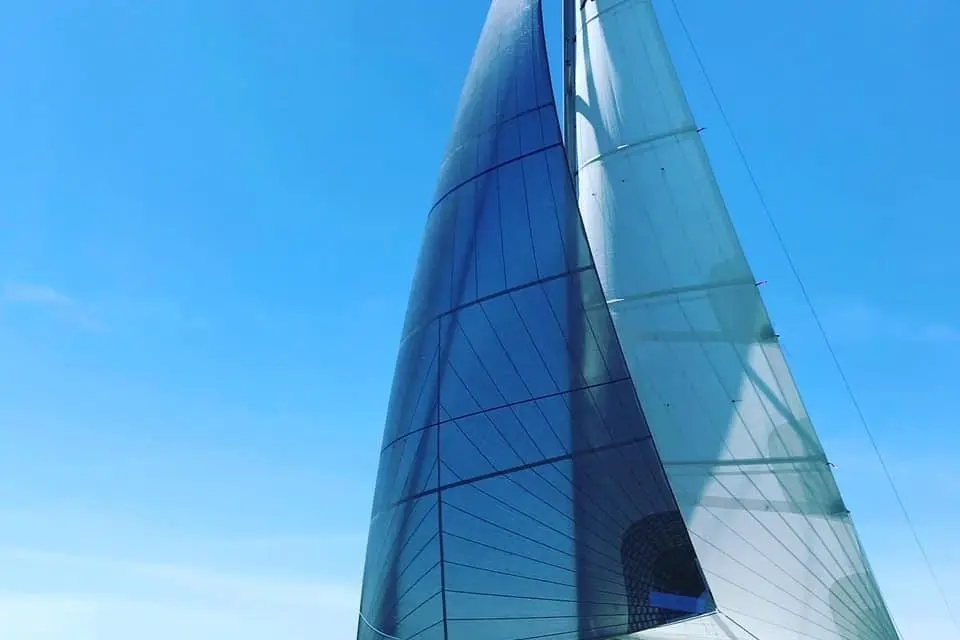

Sails
- North NPL Tour UltraX NorLam Mainsail
- North NPL Tour UltraX NorLam Furling Jib?
- North G2 Asymmetric Spinnaker
- North Code 0
- Mainsail Cover
- North Storm Main and Jib
Electrical
- 30 A shore power with charger
- 4 ? 12V 150 Ah Lithium Ion Batteries (plus separate starter battery)
- High Output Alternator
- Galvanic isolator 30 A (110 V system)
- LED lighting throughout the boat
- Watt & Sea Hydro Generator
- Electrical panel with dimmer function
- Inverter 2000 watt
Electronics
- 1 ? Axiom 9" Pro plotter (starboard)
- 1 ? Axiom 9" Pro plotter (port steering wheel)
- 6 ? i70s multifunction display
- EV400 autopilot system with P70 display (at helm)
- EV400 course computer with RAM drive
- Raymarine Ray 91 wireless VHF
- RayNet network switch
- Depth, log, and temperature sensor (combined)
- Wind sensor (mast top)
- Hawk VHF antenna on the mast
- Compass: Richie (on pedestal)
Additional Equipment
- Crewsaver 6 person ISO Ocean Liferaft (needs recertification)
- Magma BBQ
- Switlik MOM
- Oxxean? AL 260 RIB
- Torqueedo Travel 1103 Electric Outboard
- Watt & Sea Hydro Generator
- Iridium Go Satellite Phone
- Starlink Satellite Receiver
- Spectra Catalina 340C Watermaker
Disclaimer
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
