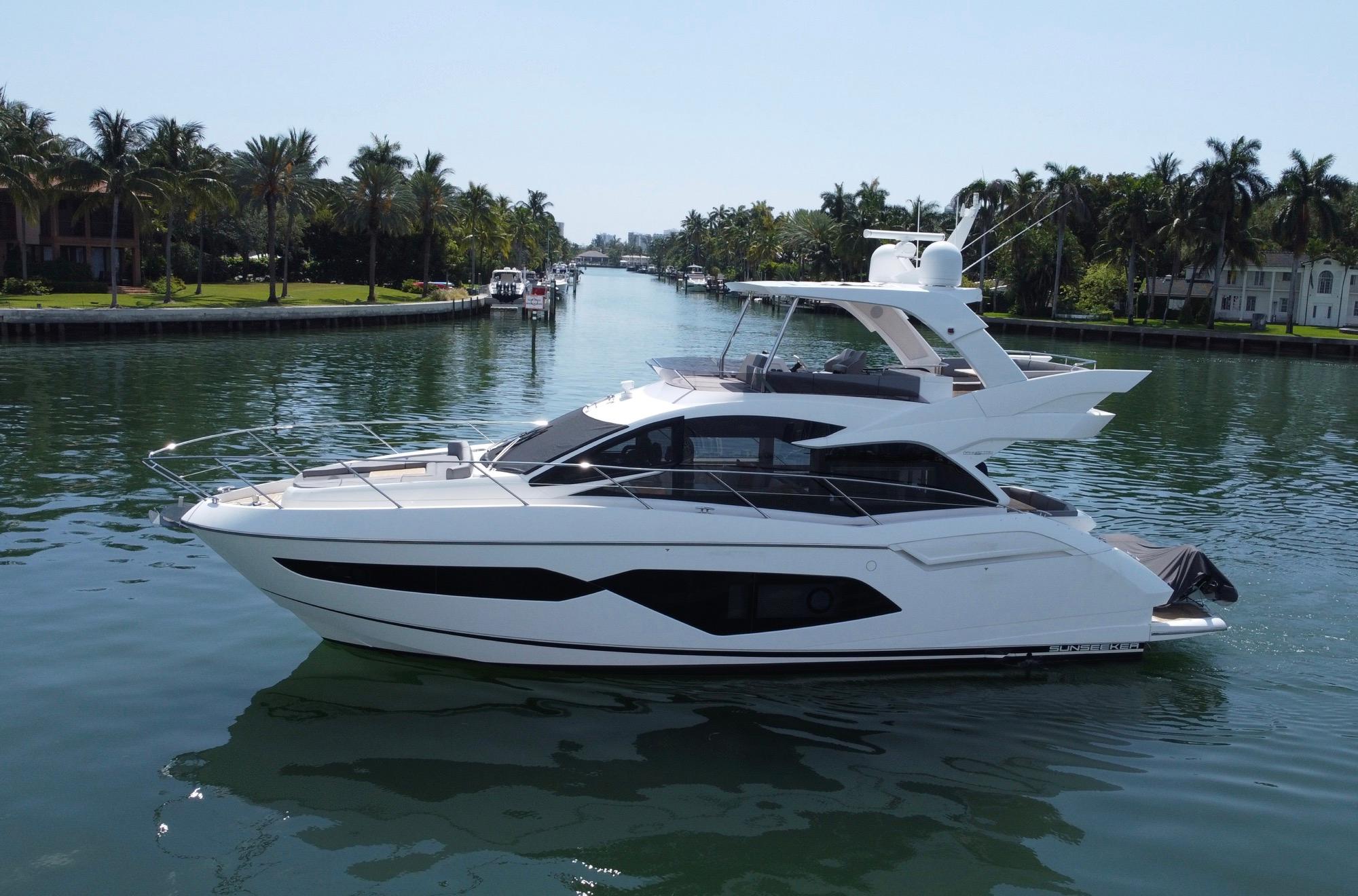

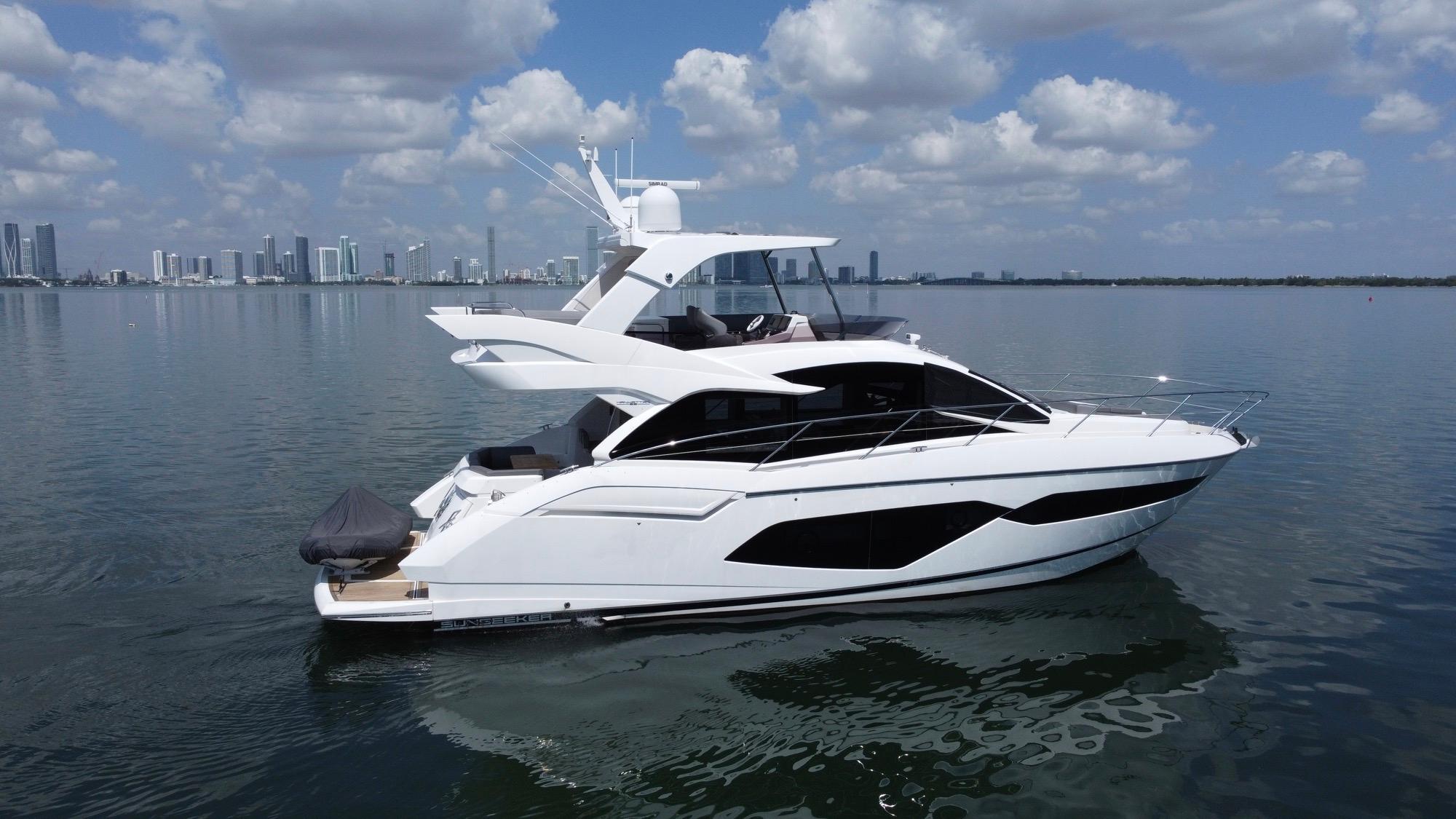

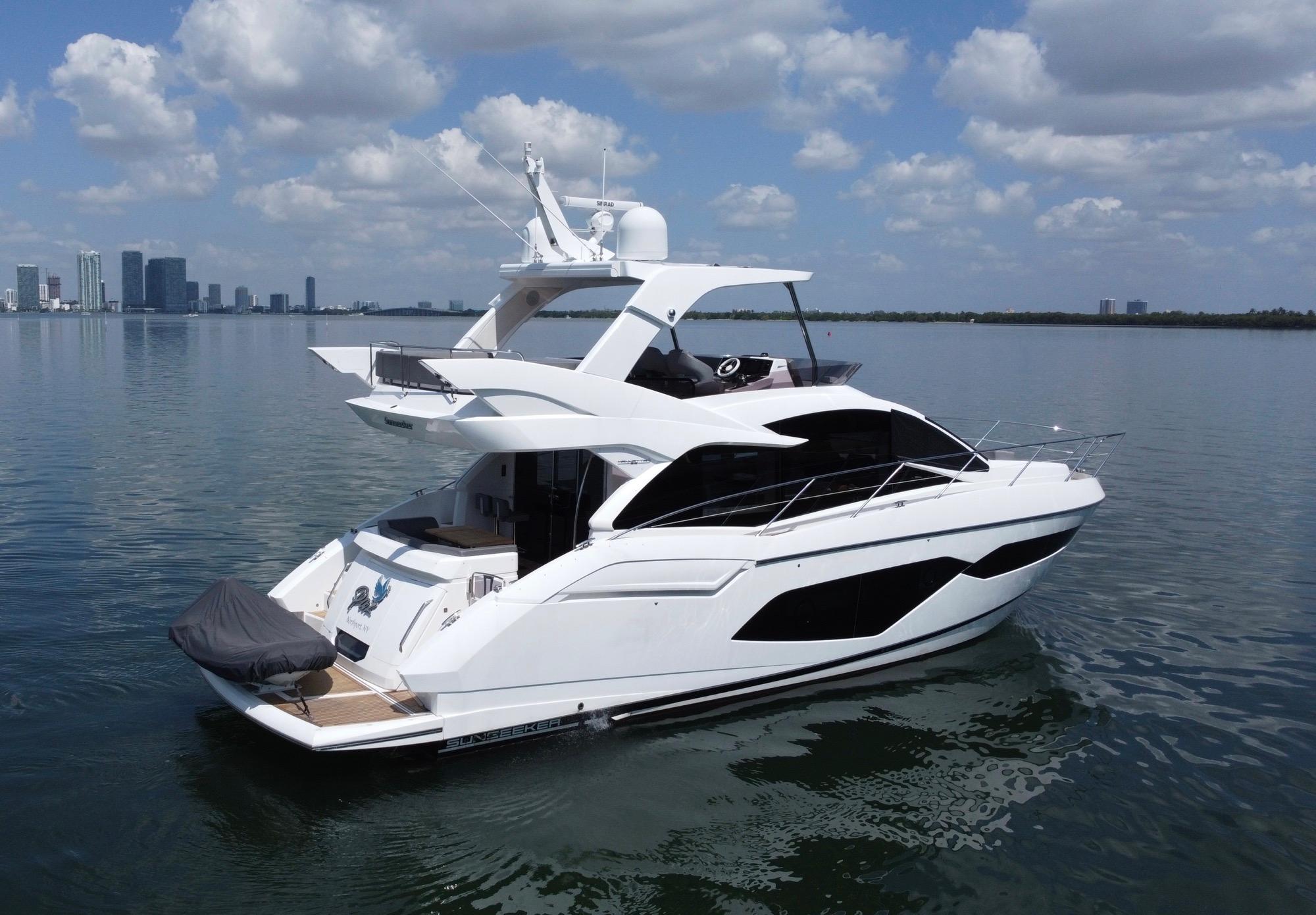

Sunseeker Manhattan 52 2018

SPECIFICATIONS

PACKAGES:

Luxury Package:

• Air conditioning Tropical specification.
• Generator upgrade from 13.5 to 17kW.
• Stern Thruster Proportional Joystick control.
• Glendinning Cablemaster.
• Stern docking Winches.
• Fresh water deck wash system.
• Drawer Dishwasher.
• Wine cooler for 24 bottles.
• Icemaker fitted in wet bar with water purifier.
• Combination Washer/Dryer.
• Electric cooling unit for top loading cool box.
• Underwater lights x 4.
• Low level side and foredeck courtesy lighting.
• Additional 20 Metres of anchor chain.
• Antifouling:
• Teak dining table in the aft cockpit.
• Teak table on the fore deck.

MOULDING:

• Crew Cabin fit out installation
• Hard Top with Electric Canopy

CONSOLE:

Simrad Premium:

• Simrad 2 x NSS12 evo2 - 12" Multifunctional Colour Chartplotter on lower console.
• Simrad 2 x NSS12 evo2 - 12" Colour repeater on fly console and GP25-GPS antenna.
• Simrad Autopilot system with IS40 Display and QS80 control dual station.
• Simrad IS40 Speed/Depth multifunctional displays x two on the lower console and x two on flybridge with B744V depth, speed, temperature, fishfinder transducer.
• Simrad RS90 VHF with DSC on lower console with second station hand set at the flybridge console.
• Simrad AIS Module with GPS and 2.4 meter AIS VHF antenna.
• Simrad Go-Free wireless bridge to control the NSS from a smart device.
• Simrad Halo 4 Pulse Compression Radar Open Array 4 foot - 64nm

Volvo Penta Shaft

• Volvo Penta twin 2.5" LCD displays for shaft engines
• Volvo Penta Shaft Low speed option - Integrated to control head to give smoth control from low speed to full speed
• Volvo Penta Trip control, Cruise control and Single lever control.
• Trip functionality with information about fuel consumption, distance to empty and trip time.
• Cruise control offers finger tip control of engine rpm to fine tune boat speed for best possible fuel economy.

Searchlight:

• Sanshin Twin Beam remote controlled Searchlight HR-1012

Compass Adjustment

• Compass Swinging and adjustment with correction card

ELECTRICAL:

Air Conditioning

• Air conditioning USA specification 60,000 BTU
• Air conditioning in the crew cabin 6000 BTU

Audio Packages

Standard Audio Package:

• Zone one. Saloon CD/FM tuner with Bluetooth connectivity and flush ceiling speakers.
• Zone two. Aft Cockpit with two amplified marine speakers.
• Zone three. Flybridge with two amplified marine speakers and zone remote on console.
• Zone four. Foredeck and two marine speakers.
• Wireless control via a Fusion App on owners smart device to control all zones.

AV System Package

Saloon AV Package:

• Saloon Samsung 55" television fitted on a fall and rise System with a DVD/CD/FM radio and amplifier with stereo speakers. With Bluetooth connectivity to use with personal devises.

Cabin AV Package:

• Master cabin Samsung 40" television with DVD/CD/FM with stereo speakers.
• Forward cabin Samsung 32" television with DVD/CD/FM with stereo speakers.
• Starboard Guest cabin Samsung 22" television with DVD/CD/FM with stereo speakers.
• All cabin units will have Bluetooth connectivity to use with personal devises.
• Entertainment Inverter and seamless transfer system to run the boats entertainment system from the boats DC batteries.

Interior Appliances

• Dometic Refrigerator freezer HDC-195 in the Galley
• Ceramic Hob 230V touch control 4 ring
• Hob Extractor fan in the Galley
• Microwave oven Stainless steel in the Galley
• Drawer dishwasher in the Galley
• Wine cooler for 24 bottles in the bar opposite the Galley
• Splendide Washer/Dryer WDC7100XC in the stern Crew area
• Icemaker fitted in wet bar with water purifier in the bar opposite the Galley

Exterior Appliances

• Marine Electric BBQ Grill fitted in the wet bar on the Flybridge
• Electric cooling unit for top loading cool box on the Flybridge

Thrusters

• Bow Thruster - Sleipner Side-Power SEP 170
• Stern Thruster - Sleipner Side-Power SEP130/250T-24V IP

Winches

• Lewmar Anchor winch V4GD-24V

Lighting

• Stern Docking Lights
• Low level LED cockpit lights
• Low level LED side deck lights 8 per side and 3 in the foredeck seating group
• Underwater lights - Lumishore LED x 4
• Stainless steel LED interior overhead lighting

General Electrical

• 120/240V AC 50 Amps shorepower socket
• Glendinning Cablemaster - 1 x power feed and recovery AC shorepower cable
• Dinghy Inflator and socket 12 volt
• Air Horns AFI twin trumpet Horn
• Sealand 8963 - 24V toilet

ENGINE ROOM:

• Generator Onan 17.0kw 60Hz - 17 MDKDP
• Diesel FuelMag conditioning system for engines and generator

Stabilisation

• Seakeeper 5 Gyro Stabilizer System

DECK & EXTERIOR:

• Antifouling application

Platform Type:

• Hydraulically lifting platform with maximum lift capacity of 450kg giving an overall boat length of 17.20 meters. (if Gyro is specificed then tender max is 150kg)

Exterior fittings

• Fresh water deck wash system with outlets forward and aft including deck wash hose kit
• Signwriting of Boat Name on stern in Saintless Steel

Anchoring:

• 60 Metres of Galvanised 9.5mm anchor chain
• Lewmar 25Kg Delta Anchor - Galvanised
• Fore deck hatch to access anchor chain well and fender storage with stainless steel fender tie bar under lid
• Additional pair 10" Oval Mooring spring cleats fitted to the aft edge of the hull band
• Chafing bars for all mooring cleats

Supply items:

• Chocks on platform (supplied loose for dealer fit unless we have the tender)

TEAK:

• Lower cockpit and platform Teak Decking
• Flybridge Teak Decking
• Teak Side Decks to include the anchor deck and Seating group deck
• Teak dining table with folding top fitted on a polished stainless steel leg on the Flybridge
• Teak aft cockpit table with folding top fitted on a polished stainless steel leg
• Teak fore deck table with fixed top fitted on an adjustable leg

BOAT COVERS:

• Rear Camper with windows
• Flybridge Instrument Cover
• Windscreen Cover
• Flybridge Seats and Wet bar cover

INTERIOR:

Wood Finishes:

Upgraded Wenge wood cabinetry throughout

Worktops:

• Granite work top upgrade price from the standard Avonite for galley and ensuite vanity tops

Bed furnishings

• Foam and quilted mattress for beds

ADDITIONALS ITEMS INCLUDED IN THE SALE:

• 10' Achilles Tender (310 AX) RIB with Tohatsu 15HP Fuel Injected
• Yacht Controler system
• SAT TV

Disclaimer
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
