Lagoon 52 2017

Manufacturer Provided Description

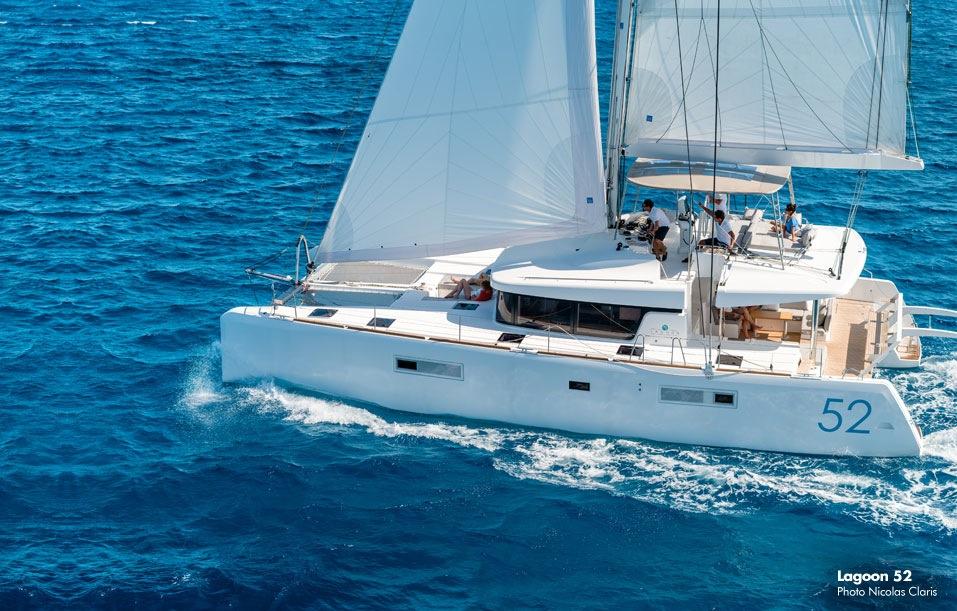

The Lagoon 52, the latest model developed by the world's leading builder of cruising catamarans, marks a whole new era in the design of such boats, as indeed did its predecessor, the famed Lagoon 500.

With its diamond-shaped vertical bows, bevelled hulls, its as if levitated deckhouse and tall rig, the Lagoon 52 is no ordinary catamaran, but its originality goes a great deal further than just its "outer" appearance, or even its interior layout.

This new Lagoon is the result of lengthy discussions between the architects at Van Peteghem-Lauriot Prévost (VPLP), the Italian Nauta Design agency and the Lagoon design department. These discussions led us to make some important and sometimes radical choices, while remaining faithful to what we believe in, in terms of elegance, comfort, safety, user friendliness and, it goes without saying, performance under sail.

Accommodations

• 1 Cabin forward Port with Queen Size Bed and ensuite bathroom
• 1 Cabin Aft Port ( VIP) with private Access from Cockpit Area with Queen size bed and en-suite bathroom
• 1 Cabin forward Starboard with Queen Size Bed and ensuite bathroom
• 1 Cabin aft Starboard ( Master room ) with Queen Size Bed and ensuite bathroom
• 1 Forepick cabin port side with single bed and access from deck hatch

Construction

• Materials used: infusion of polyester resin and high quality anti-osmosis resin on a balsa wood frame and fibre glass skin. Hull bottom and keel
  in infused monolithic laminate.
• Structural partitions (sandwich balsa) par infusion.
• Bilge painted light grey.
• Hull finished with white gel coat.
• Bridge in white gel coat with non-slip diamond plate.

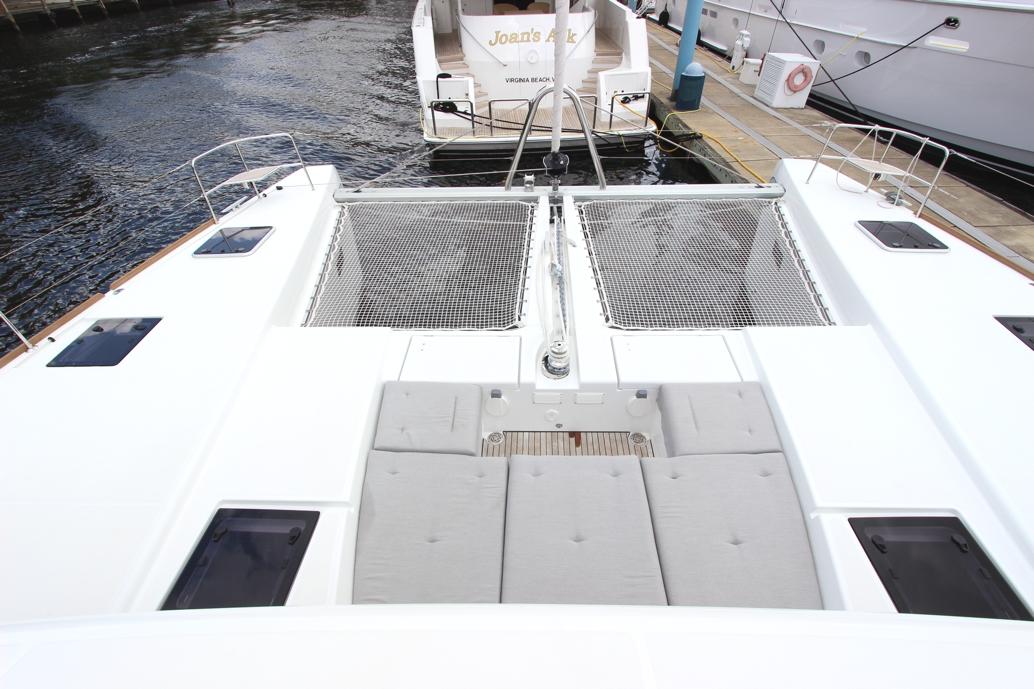

Deck

• 11 mooring cleats
• Harken deck gear.
• 1 x 50 mainsail halyard electric winch to bow of helm: mainsail halyard and reefing lines.
• 3 x 50 manual winches: 2 for Genoa lines and 1 for halyard and reefer lines
• Running rigging:
• 1 double purchase spectra mainsail halyard
• 1 spectra Genoa halyard with tension adjustment track at mast base
• 1 boom topping lift
• 3 reefing lines
• Genoa sheets
• Mainsail sheet led back to winches via boom
• Main traveller adjustment next to port side winches
• Manual jib furler
• Bow pulpits with wooden seats
• 610mm stanchions, 2 lifelines
• PVC toerail

Cockpit

• Large cockpit in salon, protected by rigid bimini with spotlights.
• Cockpit level with galley.
• Teak flooring
• “U” shaped bench to starboard. 1 gas storage unit in base.
• Removable cockpit table, interchangeable with inside table.
• Table storage unit in ceiling.
• Storage along starboard side of cockpit: 1 flap with access to external bin + storage
• Storage along port side of cockpit: 1 sink + mixer tap + grey resin countertop under flap, and two door storage unit
• Pass-through to inside via sliding window
• Access to flybridge via port side cockpit.
• Access to port stern cabin from cockpit.
• Cabin closed with gull-wing door on jacks.
• 1 Lazy boy with storage unit in base.
• 2 cockpit lighting areas.

Galley

• Vast panoramic galley - headroom: 2.15m
• Upholstered steel posts
• Varnished high dining table interchangeable with small cockpit table
• Aluminium sliding door with lock provides access to cockpit, can be locked open or closed
• 4 under-floor boxes in middle of boat with hatches on hinges and jacks.
• 4 panels open on to front windows, open inwards.
• Wooden gunwale with storage on port side
• Curtains to side and front of coachroof
• 1 entrance per hull.

Engine

• Access to engine compartment from transoms via panels with stainless steel jacks.
• 2 YANMAR Sail drive 80hp Diesel
• Engine controls and control panels at helm on flybridge and in salon
• 2 folding propellers: 3 blades
• Hold ventilation: Natural aeration and forced extraction in rear section
• 1 220V socket per engine compartment
• 1 light in each engine compartment.
• Engine compartment soundproofing: foam on engine partitions.

Electrical

• LED lighting throughout boat
• Wireless lighting, centrally controlled from touch screen on map table.
• 12V circuit including:
• 1 4’3” touch screen controls: lighting, battery level, fuel gages, water, navigation lights
• Available according to finish and options (Generator, AC): AC source management.
• 1 set of 12V 6x140Ah service batteries
• 1 12V 80Ah alternator.
• 1 12V 48Ah gel cell starter battery

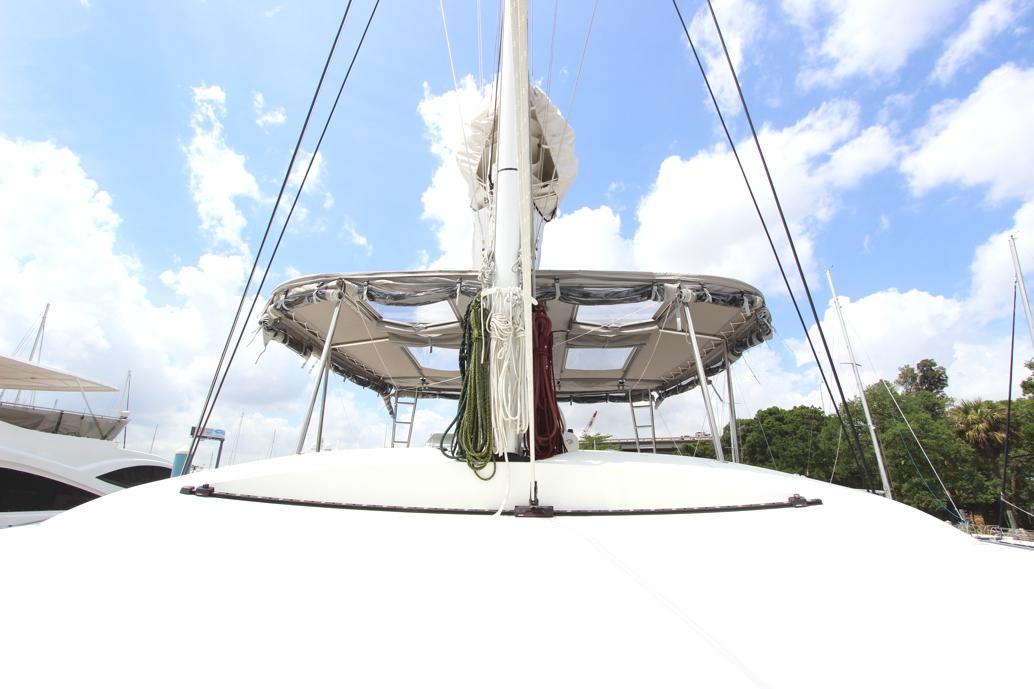

Flybridge

• Access via stairway on port side of cockpit and directly from the starboard or port side of bridge.
• 1 helm with:
• 1100mm diameter wheel.
• Central console with handrail, electronic receiver (optional), electronic engine controls, windlass control (optional), and light switches.
• Engine panel on port side
• All lines led to forward section of flybridge around 3 winches.
• 3 Line storage boxes.
• Glass holder + storage tray on port side
• Seat on starboard side with storage.
• Sun bathing area to rear of flybridge (upholstery available)
• Helmsman base cushion as standard
• 2 flush deck hatches that can be used as scoops near cockpit
• 1 mainsail winch to rear of flybridge.

Sails

• Fully-battened mainsail: 101 m² in double ply Dacron from Dimension Polyant with 3 reefing lines
• Self-tacking jib on manual furler: 59 m² in double ply Dacron from Dimension Polyant with antiUV strip

Mast/Rigging

• Anodised aluminium mast and boom with track and traveller.
• Double spreader rig
• 2 shrouds with chafe guards
• 2 lower shrouds with chafe guards
• 1 forestay with manual furler.
• Anodised aluminium boom
• Anodised aluminium transversal crossbeam
• Adjustable Lazy Jacks with spreaders
• Composite longitudinal beam

EXTRAS OPTIONS PURCHASED

Cruising Equipment Package:

• Helm seat cushions - dark grey
• Electrical circuit, ac monitoring, 1 battery charger 220v/12v 100amp
• Pair of s/steel davits & manual winch
• B&g navigation pack 2017/2018Imprimer fichier
• Opening hatches + curtains on aft portholes of the aft cabins
• Gel batteries 1260 amp
• Storage unit in starboard cockpit furniture
• Fusion ms-ra70 + 4 loudspeakers in salon + 4 loudspeakers in cockpit & fly
• Freshwater dock inlet
• Windlass remote control with chain counter at flybridge
• Deck wash pump sea water / fresh water Indirect lighting in cabins and salon

UPHOLSTERY CURTAINS:

• STANDARD UPHOLSTERY SHARK BROWN (salon & settees)
• PLEATED BLINDS IN THE CABINS - 3, 4 and 5-CABIN VERSIONS

SAILS RIGGING AND HARD:

• LAZY BAG FOR STANDARD ALUMINIUM BOOM - CARBON BEIGE
• CODE 0 RIG AND POLE & FURLER
• PACK FOR HYDRANET TRIRADIAL SQUARE TOP MAINSAIL & JIB IN LIEU OF STANDARD

EXTERIOR UPHOLSTERY:

• PROTECTING COVERS FOR EXTERIOR CUSHIONS (For fwd & aft cockpits and flybridge upholsteries)
• SUNBATH AND FORWARD CUSHIONS FOR FLYBRIDGE - CARBON BEIGE
• AFT COCKPIT CUSHIONS - CARBON BEIGE

DECK GEAR:

• 3 ELECTRICAL WINCHES ON FLYBRIDGE IN LIEU OF STANDARD
• 4 UNDER WATER SPOT LIGHTS
• LARGE BIMINI ON HELM STATION WITH FOOTPATH UNDER BOOM, LED LIGHTS - CARBON BEIGE
• FORWARD & AFT COCKPITS AND TRANSOMS IN TEAK
• EXTRA FOR HYDRAULIC ALUMINIUM DAVITS (300kg / 661 lbs) WITH REMOTE + AFT SEAT
• COCKPIT FRIDGE 80L / 21US Gal
• FOLDABLE TEAK COCKPIT TABLE WITH BENCH AND CUSHION - CARBON BEIGE
• SIDES AROUND COCKPIT WITH WINDOWS - CARBON BEIGE

ENGINE:

• ENGINES 2 x 80 HP (Yanmar 4JH80)
• PAIR OF 3-BLADES FOLDING PROPELLERS FOR YANMAR ENGINES
• ELECTRIC BOW THRUSTER 24V 140KGF + BATTERIES + CHARGER

ELECTRICAL CIRCUIT:

• INVERTER 12 / 220V - 3000VA
• ONAN GENSET 17,5Kva 1500rpm 220V / 50Hz + COCOON + MONITORING
• ADDITIONAL SURGE PROTECTION

WATER CIRCUIT:

• ELECTRICAL TOILETS FRESH WATER - 4 CABIN VERSION
• WATERMAKER 280L/H (74USGal/H) SEA RECOVERY AQUAMATIC 220V (Replaces 1 standard water tank)

INTERIOR EQUIPMENT:

• BERTH IN PORT BOW COMPARTMENT
• REVERSE CYCLE CENTRALIZED CHILLED WATER AIR CONDITIONING 60000BTU 220V - 3 AND 4-CABIN VERSION
• MICROWAVE OVEN 220V
• DISH-WASHER MIELE 12 sets 220V
• ADDITIONAL FRIDGE & FREEZER IN STARBOARD PASSAGE WAY - 4 & 5-CABIN VERSIONS
• FANS IN SALON AND CABINS

HI-FI & ÉLECTRONICS:

• B&G MO 16T 16" DISPLAY AT HELM STATION
• B&G MO 16T 16" DISPLAY AT NAV. STATION
• AIS 400 B&G TRANSCEIVER WITH ANTENNA COUPLING
• B&G WIFI MODULE
• EXTRA FOR BOSE LIFESTYLE V25 HIFI/DVD HOME CINEMA IN SALON + 4 SPEAKERS IN COCKPIT AND FLY
• RADAR B&G, WITH S/STEEL PROTECTION
• TV LED 32" PAL/SECAM WITH ELECTRIC LIFT IN THE SALON
• VHF B&G DOUBLE HANDSET WITH DSC

EXTRAS:

• OUTLET FOR WASHING MACHINE IN AFT STARBOARD CABIN
• LAUNCHED, RIGGED,l ANTIFOOLING
• SOLAR PANELS
• WASHER/DRYER COMBO

Dinghy

• Highfield "Ocean Master" Ivory 3,9 Meters with 50HP Honda Engine


Disclaimer
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
