Mengi Yay 2009 "GWEILO"

MAIN CHARACTERISTICS

Name: GWEILO

Type: Schooner

Builder: Mengi Yay

Year: 2009

Refit Year: 2021-2022

LOA (M/FT): 47.40 M 155' 6''

LWL (M/FT): 29.70 M 97' 5''

Length COR: 35.62 M 116' 9''

Beam Overall (M/FT): 8.35 M 27' 5''

Draft (Keel up) (M/FT): 4.70 M 15' 5''

Gross Tonnage: 157 tonnes

Displacement (Fully Loaded): 184 tonnes

Mainsail Sail Area: 330 M² 1,082 FT²

Foresail Sail Area: 263 M² 862,86 FT²

Staysail Sail Area: 108 M² 354,33 FT²

Yankee Sail Area: 185 M² 606'95'' FT²

Rig: Aluminium

Hull Material: Wood laminated epoxy

Superstructure: Wood Varnish

Decks: Teak

Flag: Cayman Islands

Classification: RINA, surveyed to LY2 compliance

MCA: Commercially Compliant

Naval Architect: Dykstra Naval Architect

Exterior Designer: Dykstra & Partners

Interior Designer: Hakan Ezel

Main Engines: Caterpillar 550HP 3406E

Speeds: 13 knots Max @ 2.100 RPM 100/HR

11 knots Cruising @ 1.700 RPM (variable pitch propellor) 72/HR

9 Knots Economical

Guest Accommodation: 8 guests in 3 staterooms

Crew Accommodation: 7 crew in 4 cabins

COMMENTS AND NOTEWORTHY FEATURES AT A GLANCE

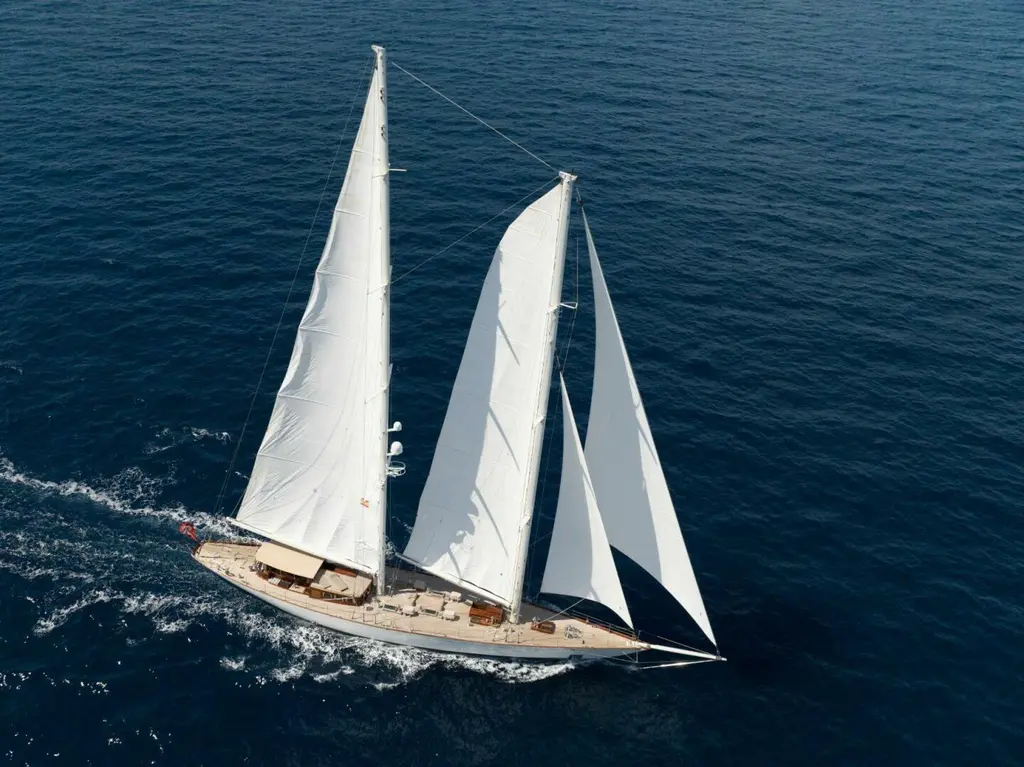

GWEILO is an elegant two masted wooden schooner sailing yacht built in 2009. Classical lines, a traditional style rig and a long keel make her very comfortable under sail.

Designed by Dykstra Naval Architects, GWEILO was built in cold moulded epoxied wood by Turkish yard Mengi-Yay and delivered in 2009. Her interior is made up of dark panelled woods with rich fabrics and accommodates up to eight guests in three staterooms consisting of a full beam master suite, VIP suite and a twin with two Pullman berths. All cabins feature entertainment centres, television screens and en suite shower facilities.

The deck spaces are large with sun loungers for relaxing and there is a spacious cockpit dining area with an expandable table which can comfortably seat up to nine people.

Under power, a single 558hp Caterpillar diesel engine gives GWEILO a cruising speed of 11 knots and a maximum speed of 13 knots.

CLASSIFICATION

Flag: Cayman Islands

Port of Registry: Georgetown

Classification: RINA Commercial

EU Tax Status: Not Paid

US Tax Status: Not Paid

Official Number/IMO number: 741405 / 8356883

Official Registration: Georgetown

Home Port: Genova, Italy

REGULATION

Vessel Registration: Private

Built to Commercial Compliance: RINA LY2

MARPOL Code: Ready to comply

Mini ISM: Ready to comply

MLC: Ready to comply

ACCOMMODATIONS

• Master Stateroom

• Twin stateroom with 2 Pullmans

• Double Stateroom

Saloon: Full beam saloon with port side C-shaped lounge area and starboard dining table

Deckhouse: C-shaped settee and table to port. Chart table and navigation equipment to starboard

Lower Saloon: U-shaped seating area set to port with additional dining area on the starboard side

CONSTRUCTION

Hull Material: Wood laminated epoxy

Superstructure Material: Wood laminated epoxy

Decks Material: Teak

Paint: AWLGRIP

CAPACITIES

Gross Tonnage: 157 tons

Net Tonnage: 47 tons

Displacement Tons: 187 tons

Fuel Capacity: 10,000 Litres 2,641 Gallons

Fresh Water Capacity: 4,000 Litres 1,056 Gallons

Water Makers: 220 Litres / hr 58 Gallons

Grey Water: 1,200 Litres 317 Gallons

Black Water: 650 Litres 171 Gallons

Waste Oil: 300 Litres 79 Gallons

Speed Consumption p/h Range RPM

Maximum: 13 2100

Cruising: 10-11 1700

Economical: 9

MAIN MACHINERY

Main Engines: Caterpillar 550 HP 3406E

Engine Hours: 2,900 hrs. May 2023

Propulsion Type: Variable pitch Amartek

Engine Controls: KWANT electronic controls

Gear Boxes: ZF 350. Ratio ZF 3501V

Shafting: Single

Propellers: Variable pitch Amartek

GENERATORS & ELECTRICITY

Generators: 2 x Onan 50 Kw 220/380V 50 cycle

Generator Hours: Port: 5,600 hrs. May 2023

Starboard: 5,800 hrs. May 2023

Generator Fuel Consumption: 10 litres per hour

Shore Power: 380V 100A

Shore Power Converter: NO

Shore Power Transformer: Yes

Battery Chargers: Mastervolt

UPS(uninterruptible power supplies): 1 SCHNEIDER for Nav Equipment and Fire Alarm

AUXILIARY MACHINERY

Steering System: BCS

Steering Gear: BCS

Emergency Steering: BCS

Bow Thruster: AB TRACK

Stern Thruster: AB TRACK

Under Water Lights: Underwaterlights "ultimate80"

Engine Controls: KWANT Electronic

Fuel & Oil System

Fuel Filters: SEPAR

Fuel Oil Separator: ALFA LAVAL

Fuel Transfer Pump: GIANNESCHI

Fuel Filling Pump: GIANNESCHI

Bunkering Station: Yes

Oily Bilge Water Separator: ALFA NAVAL

Dirty Oil Pump: YES

Lubrication Oil Pump: YES

Firefighting & Bilge System

Firefighting & Bilge Pump: 380 / 24v Bilge + Fire

Fresh Water System

Fresh Water Makers: SEA RECOVERY AQUA WHESPER 220 l/h

Fresh Water Treatment: Decommissioned

Fresh Water Pressure: GIANNESCHI

Hot & Cold Circulation Pump: GIANNESCHI

Hot Water Boilers: GNR x 2 Tanks. Capacity 200 litres each

Sea Water Pumps: CALPEDA

Black & Grey Water System

Black & Grey Water Treatment: HAMMAN

WC's (toilets/bidets): TECHMA

Sanitary Water System: HAMANN 700L

Black & Grey Water Pumps: GIANNESCHI

Garbage Management System

Garbage Compactor: Yes

AC & Ventilation System

Air Conditioning: CLIMMA

Air Compressor: KAHLENBERG

Air Handling Units: VEGA Mk2

Provision Refrigeration: LIEBHERR

Engine Room AC: MARINECOLD

Engine Room Ventilation: Yes

Galley Ventilation & Extraction: Yes

Hydraulic System

Hydraulic Power Packs: SEAWAY

Antifouling System

Type: CATHELCO

SAILS & RIGGING

Masts: 2

Type of masts: Formula Yacht Spars Aluminium

Booms: Formula Yacht Spars Aluminium

Standing rigging/Running rigging: Nitronic Rod Rigging / 2022 new DSK99 sleeved running rigging

Reefing Slab

Sails: ZAOLI (New May 2022)

Furlers HARKEN Hydraulic

Winches: HARKEN Hydraulic

NAVIGATION & COMMUNICATION SYSTEMS

NAVIGATION SYSTEMS

Monitors: HATTELAND

X-Band Radar: SIMRAD

Chart Plotter: SIMRAD OP40

UPS: SHNEIDER

Magnetic Compass: SUUNTO

Gyrocompass: SIMRAD 4/5

Auto Pilot: SIMRAD AP 25

Rudder Angle Indicator System: SIOEN

Echo Sounder: B 24 M8000

Speed Log: B 24 M8000

Depth Sounder: AIRMAR

DGPS: SIMRAD

GPS: SIMRAD

AIS: SIMRAD

BNWAS Marble

Wind Instruments: B&G

Horn: AIR

Search Lights: 2

Bridge Navigation Watch Alarm: Marble

Ships Computer: Ship's PC wireless network 84 router

COMMUNICATION SYSTEMS

SAT com: SEATEL COASTAL 80/SAT C

SAILOR 500 FLEET BOARDBAND

INMARSAT - C: SAILOR MINI SAT C Decommissioned

VHF Radiotelephones: SIMRAD RS87 DSC

Portable VHF: ICOM

Portable GMDSS VHF: SIMRAD

VHF/UHF Digital Radios: ICOM

Radar Transponders: SIMRAD

Navtex Receiver: FURUNO

GMDSS Battery Plant: Yes

DECK MACHINERY & EQUIPMENT

Anchors: 2 SS Custom Made

Anchor Windlass System: MAXWELL 6000 WINDLASS X 2 19MM

Passerelle: Hydraulic stainless steel by EZBERCI MARINE

Side Boarding Ladder: Stbd side hydraulic ladder by EZBERCI MARINE

Swimming Ladder: Included in stern passerelle and sideboarding ladder

Spotlights: 2

Paint Exterior: AWLGRIP

Paint Interior: AWL GRIP VARNISH

Paint Underwater: JOTUN

SAFETY, SECURITY, & FIRE FIGHTING EQUIPMENT

Safety Equipment Full MCA commercially compliant inventory

CCTV: Decommissioned

Monitors: Decommissioned

Motion Sensors: 1

Ship's Safe: 1

Doorbell/stew bell: 1+1

Fixed Firefighting System: FM 200 ENGINE ROOM

Firefighting Equipment: Emergency Crash pump diesel

Gianeschi 24V pump

Gianeschi 380V

Gas Detection: Yes

Smoke Detection: Yes

Fire Alarm: TYCO MINERVA T2000

Alarms: Yes

MOB Boat: Yes

Life Rafts: 4

Breathing Apparatus: As per flag state requirement

Lifejackets: As per flag state requirement

Immersion Suits: As per flag state requirement

Life Rings: As per flag state requirement

EPIRB: As per flag state requirement

SART: As per flag state requirement

Flares and Signals: As per flag state requirement

Medical Equipment: As per flag state requirement

ENTERTAINMENT, AUDIO/VISUAL AND IT SYSTEMS

TV: Sony

Audio Equipment: Bose

Light Management: Traditional

Main Salon: TV + Audio

Master Stateroom: TV + Audio

VIP Stateroom: TV + Audio

Guest Staterooms: TV + Audio

Exterior, Aft Deck, Wheelhouse: Audio

Captain's Cabin: TV

Crew Mess: TV

WIFI: 4G/5G

GALLEY & LAUNDRY EQUIPMENT

MAIN GALLEY EQUIPMENT

Cooking Equipment: GAGGENEAU Induction cooker + BBQ Grill/Oil frier option

Coffee Machine Nespresso capsules + American filter

Refrigeration/Freezer: 2 x LIEBEHR

Microwave / Oven GAGGENEAU

Dishwasher: MIELE professional

Dryer: MIELE professional

PANTRIES AND OTHERS

Refrigeration/Freezer: 1 x fridge + 1 x freezer LIEBHERR

Other: Red and White Fridge VINIDOR + icemaker

CREW GALLEY / MESS EQUIPMENT / COOKING EQUIPMENT

Microwave: GAGGENAU

Refrigeration/Freezer: 2 x fridges+ 1 x freezer Liebherr

Dishwasher: MIELE professional

Main Laundry Equipment: MIELE WASHER AND DRYER

Crew Laundry Equipment: MIELE WASHER AND DRYER

TENDERS & TOYS

Tenders: CASTOLDI 18' / 115 Hp YANMAR engine

REFIT 2021-2022

• All scupper pipes cleaned. Sitting group and hatch drains replaced with larger diameter

• Seals of wooden deck hatches and skylights have been replaced

• All glass in various skylights have been replaced

• Deck shower hose has been replaced

• All handrail flanges dismantled and cleaned

• Capstan and windlass have been serviced and remote controls replaced

• Fan coil filters have been changed

• All toilets have been serviced and solenoid valves repaired

• All overboard valves dismantled and tested with 10 bars. Generator exhaust valves changed with RINA 3.2 certificate

• Suction valve of diesel pump replaced, and pump serviced

• Maintenance of 24V Bilge and Fire Fighting pumps serviced and commissioned and hoses replaced

• Hamann commissioned and serviced

• Boiler maintenance and expansion tank completed

• Black - grey water pumps tested and all waste tanks inspected and cleaned

• Chain wash pipes replaced with PPR. 24V bilge pump suction lines replaced. Maintenance of the pump was done, and the pump tested

• Maintenance and servicing of cooling sea water pumps and hoses replaced

• Maintenance of cooling freshwater pumps serviced and hoses replaced

• Maintenance of fuel transfer pumps serviced and commissioned

• Maintenance of 380V bilge - firefighting pumps serviced. Suction pipes replaced

• Emergency portable fireilge pump tested; exhaust pipe insulation replaced

• Main engine and generator cooling systems serviced and hoses replaced

• Fire hoses checked. Fire hydrants and valves replaced

• Bow thruster serviced and commissioned

• Maintenance of fresh drinking water pump and pressure switch replaced

• Hot water circulation pump replaced

• Fresh water expansion tank flange replaced

• New Marpol flange fitted

• Water maker serviced and membranes and filters replaced

• Water maker feed pump replaced

• Lazarette deck drainpipes replaced with metal pipes as per class requirement

• Day fuel tank air vent line installed

• 24V bilge pumps rubber throttles replaced

• Air horn hose replaced

• Boiler anodes replaced

• New CATHELCO anodes

• Main engine exhaust inspected and serviced

• Master stateroom shower and starboard guest cabin shower mixer taps have been replaced

• Master stateroom toilet pump replaced

• Black water system inspected, serviced and cleaned

• All tanks including fuel tanks have been inspected and cleaned

• Seals of all manholes of the tanks and on the hull has been replaced

• Full coat of hull paint applied (Awlgrip)

• Full coat of varnish applied (Awlgrip uv)

• Full coat of anti-fouling applied (Jotun)

• Booms have been painted (Awlgrip)

• Escape hatch from engine room has been replaced

• All the deck storage lockers have been repainted

• All the bilges have been cleaned and painted

• Anodes on the hull have been renewed

• All stainless-steel on the deck has been polished

• HARKEN winches on deck have been serviced

• ALFA LAVAL separator fully serviced

• Hydraulic lines of the Passerelle have been replaced

• Full set of new ZAOLI Sails (delivered May 2022)

• Replacement back stay, four running backstays and the check-stays, including new blocks

• Main engine and Generators have been serviced

• RINA class renewal completed in January 2022

• BNWAS system installed

• New Carpets throughout

• New mattress in the starboard side guest cabin

• CASTOLDI tender and Yanmar engine have been serviced and batteries changed

• New life rafts (2022)

• All Fire and safety equipment surveys completed

• FM200 hydrostatic test complete and approved

• 3 x New Calpeda pumps have been supplied for A/C chiller unit

• 2 x New Rheinstorm 24v bilge pumps have been installed

• New Can Makina Elektrik PLC Screens and software

• New 4g/5g Wifi System installed by LocoMarine

• Cayman Commercial LY2 ready
