HULL

Composition:

• Sandwich (polyester resin - fiberglass / balsa core)
• Grey Hull
• Structural hull counter molding in monolithic laminate (polyester resin - fiberglass

Profile:

• Semi-planing hull

DECK

Composition:

• Sandwich (polyester resin - fiberglass / balsa core)
• Structural counter molding in monolithic laminate (polyester resin -fiberglass)
• Diamond tip type non-slip surface

• Alpi Mahogany interior woodwork
• Rovere Aleve floors
• Marlin Brilliant White PVC interior upholstery

Gangway door to starboard

 MOORING - ANCHORING GEAR

• Stainless steel bow fitting
• Stainless steel bow roller and swing
• 10 Mooring cleats (L 300 mm / 12'')
• Stainless steel gunwale guards
• 1 Mooring locker with self-bailer - Hood cover
• Electric windlass

SAFETY ON DECK

• Handrails in cockpit
• Stainless steel open pulpit

COCKPIT

• Self-bailing cockpit
• 1 Locker in cockpit bottom gas piston assisted and lockable
• Gas cylinder locker
• Cockpit shower hot/cold water
• Place on the ceiling for integration of the aft closing
• Seat cockpit
• 3 door opening transom
• 1 Stainless steel, removable swim ladder
• 1 Access door to the side deck from the cockpit
• Water drain plug
• Grey water drain filler (Option)
• Shore power socket (110 V)
• 2 Waterproof speakers
• Cup holders

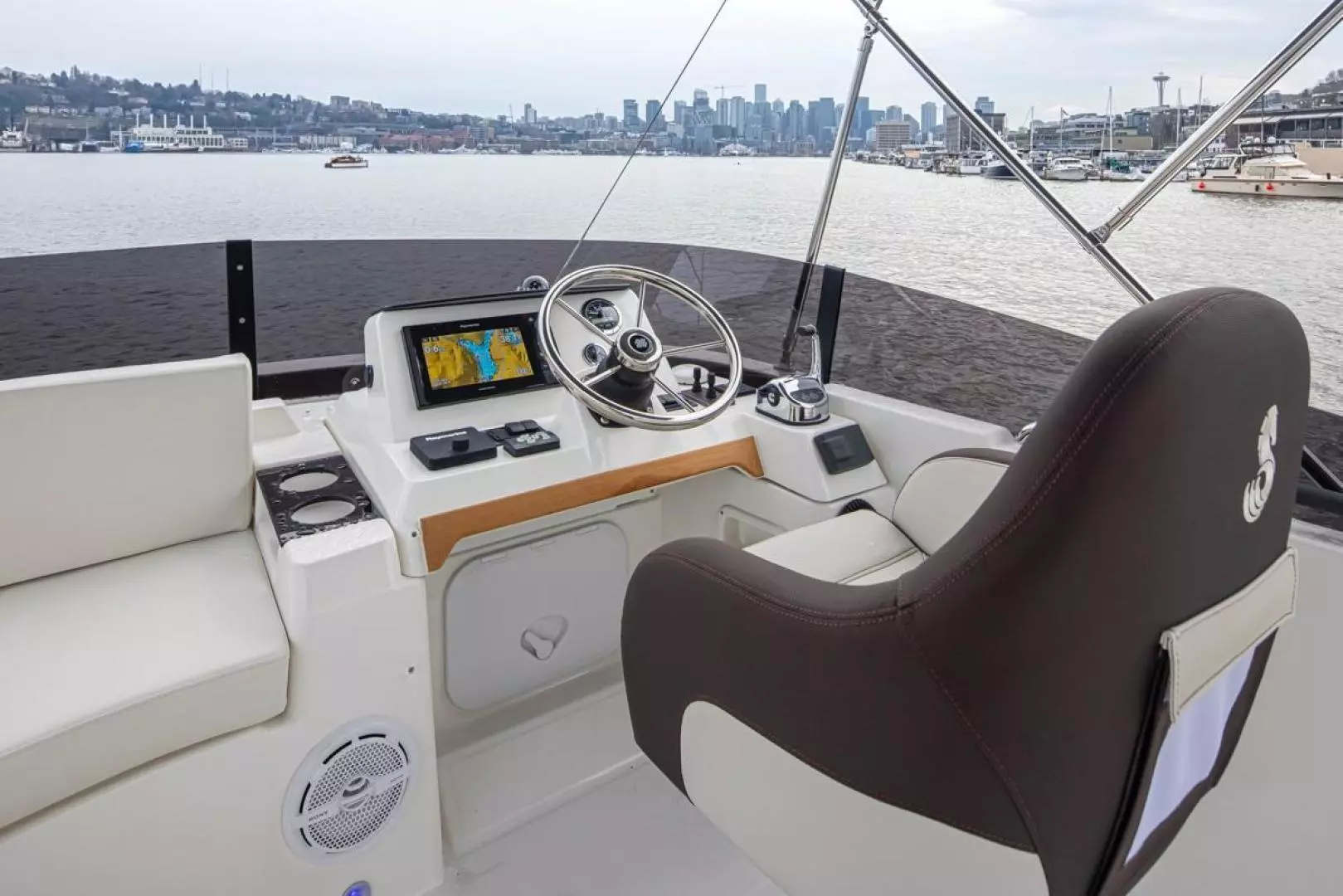

FLYBRIDGE

• Flybridge self-bailing
• Stainless steel access ladder to the flybridge with wooden steps and stainless steel handrails, vertical folding
• Polyester trap door with gas piston
• PMMA tinted windscreen
• Stainless steel pulpit surrounding aft of flybridge
• Stainless steel access to flybridge with flag holder, all horizon light, paces for VHF aerial and radar
• Pilot console with control panel including: Electric engine controls, Electric windlass control, Thruster and Trim tab
• Fuel gauge indicator
• Rudder angle indicator
• Space for navigation electronics
• Steering wheel stainless steel
• Steering compass
• Hydraulic steering
• Fog horn
• 12 V Power outlet
• 2 Waterproof speakers
• Cup holders
• 1 Adjustable pilot seat
• Flybridge salon on port side consisting of a U-shaped bench seat with built-in storage and a removable solid wood table
• Filtering foam PVC upholstery
• Set of flybridge covers

SALON - Headroom: 1,96 m / 6'5''

• Sofa convertible into double berth (1,20 x 2,00 m / 3'11' x 6'7'')
• Height adjustable fold down salon table in varnished wood
• 2 Aluminum director's chairs
• Storage cupboards
• Shelving unit
• 3 Leaf aft sliding door with black lacquered aluminum frame
• 2 Speakers, in wheelhouse
• Interior curtains around the wheelhouse
• Salon / galley separation interior curtain

GALLEY - Headroom: 1,96 m / 6'5''

 U-shaped galley - Includes:

• Countertop
• 2 Stainless steel sinks with covering flap, hot and cold water mixer pressure tap
• Cooktop
• Front opening refrigerator - 130 L / 4.5 Cu.ft (supplied by 12V)
• Cutlery drawer
• Storage
• 110V Sockets
• Garbage bin
• Marlin Brilliant White PVC removable cushion on work top

STEERING STATION

• Two-seater pilot and copilot bench
• Removable floor step
• Storage under pilot bench
• Sliding side bay window with 1 opening panel with direct access to the starboard side deck
• Clear glass windscreen with black lacquered aluminum frames
• 3 Electric windscreen wipers with synchronizing system
• Windscreen washer
• Defogger
• Opening dashboard console with large place to receive the navigation electronics
• Engine dials: Revolution counter, Fuel gauge, Warnings, Rudder angle indicator, Trim tab indicators
• Navigation lights
• Fog horn
• Engine control
• Leather covered steering wheel
• Steering compass
• 12 V Power outlet
• 2 Cup holders

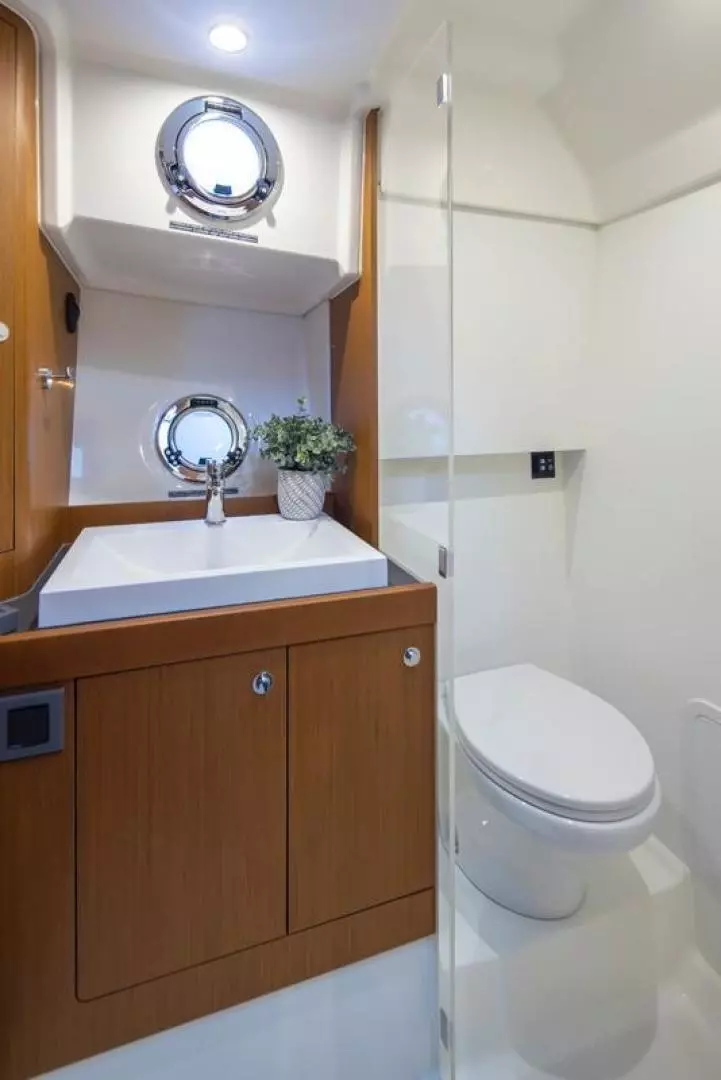

 HEAD (STARBOARD) - Headroom: 1,92 m / 6'4''

• Mirror
• Towel rack under top
• Upper cupboard, Lower unit
• Socket
• 1 Opening porthole with curtain
• Quiet Flush deluxe electric toilet with freshwater / seawater switch
• Washbasin
• Mixer tap
• Rigid sewage tank (88 L / 23 US Gal)
• Chrome toilet paper holder
• Shower screen in PMMA

OWNER'S CABIN (FORWARD) - Headroom: 1,97 m / 6'6''

• Double berth (2,00 x 1,50 m / 6'7'' x 4'11'')
• Marine mattress
• 2 Closets, one with shelves
• Large storage space under berths
• 1 Opening hatch with blackout blind
• 2 Opening hull portholes with blackout curtains

GUEST CABINS (PORTSIDE) - Headroom: 1,95 m / 6'5''

• Bunk beds (0,70 x 1,90 m / 2'4'' x 6'3'')
• Marine mattress
• Lower unit
• Storage under berth
• 2 Opening hull portholes with blackout curtains

• Shaft propulsion
• Propeller
• Single engine Cummins® QSB6.7I 425 HP / HP (313 kW)
• Fuel filter with decanter
• Sea water filter
• Engine room soundproofed with high density foam 40 mm / 1-ó'' thick
• Air intakes for engine room cooling, on deck
• Extinguisher
• Fuel tank deck filler
• Aluminum fuel tank (Capacity = 800 L / 211 US Gal) pre-fitted for FPS (Fuel Polishing System) connection system
• Steering system: Hung rudder, in stainless steel
• Hydraulic steering
• Electric trim tabs
• Bow thruster
• Stern thruster

• Electrical panel (12 V / 110 V)
• Shore power socket (110 V)
• 2 engine batteries (12 V 50 Amp)
• 1 AGM service battery (12 V 140)
• Battery charger
• 2 12V Sockets
• Interior lighting (Overhead lights, reading lights)
• Outside lighting (Navigation lights, Mooring light, Spot cockpit, Blue LEDs at the flybridge)
• 7,5 kVA Generator

• 1 Manual bilge pump (Cockpit)
• 1 Electric bilge pump automatic
• Water pump for pressurizing hot/cold water system
• 25 L/ 7 US Gal Water heater working off engine exchanger and 110 V
• Water tank filler
• 2 Water tanks (2 x 150 L / 2 x 40 US Gal)
• 1 Grey water buffer tank (8 L / 2 US Gal)
• 2 Grey water tanks (2 x 80 L / 2 x 21 US Gal) (Option)
• 1 88 L / 23 US Gal Rigid holding tank
• Shore freshwater supply

 ESSENTIAL TRIM PACKAGE

• 12 V / 110 V inverter (700 VA)
• Raymarine 9'' screen with Downvision sounder in wheelhouse
• Raymarine 9'' screen on flybridge
• Cummins engine spare box
• p70RS autopilot with repeater on the flybridge
• Double VHF set with AIS
• Cup holders

PACK ELECTRONIC

• IP aft camera with inverted image
• Quantum Digital radar
• Windvane / Anemometer
• 650 AIS receiver

AIR CONDITIONING PACK

• 7,5 kVA Generator (230 V / 50 Hz)
• Reversible air conditioning - 34 kBTU

• 2 Cabins 1 Head
• External Upholstery Marlin Brilliant White Included
• Trim Level Essential
• Electronic Pack
• Mooring/Anchoring Kit
• 2 Foldable Cockpit Seats Marlin White
• Fly Bridge Flanelle Bimini & Dodgers
• Deck Search Light
• Microwave 110v
• 12v Fridge On Flybridge
• Ice Maker 115v 60hz Teck
• Ceramic Hob 115v
• Tropical Air Conditioning 115v 60hz
• Owners Manual
• Raymarine 12p Mfd In Wheelhouse (Replaces 9p)
• Cartography Raymarine
• Porthole And Sliding Doors Mosquito Screens
• Solid Wood Slatted Cockpit Floor & Starbboard Catwalk
